|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~30 work days after order confirmed|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||20 sets per month|
|Features:||Screen Frame Heightening, The Outlet Designed Together With The Vibration Body||Purpose:||Removal Of Impurity, Solid-liquid Separation, Filtering Slurry|
|Material:||Stainless Steel 304, 316L, Carbon Steel Etc.||Application:||Ceramic Slurry, Ceramic Glaze, Paint, Coating Etc.|
|Surface Treatment:||Paint, Sandblast And Polish Etc.||Diameter:||600mm~1200mm|
|Filter Precision:||Above 500 Mesh||Characteristics:||Large Capacity, Long Service Life Of Screen, Single Screen Design Etc.|
wet screening equipment,
sieve separator machine

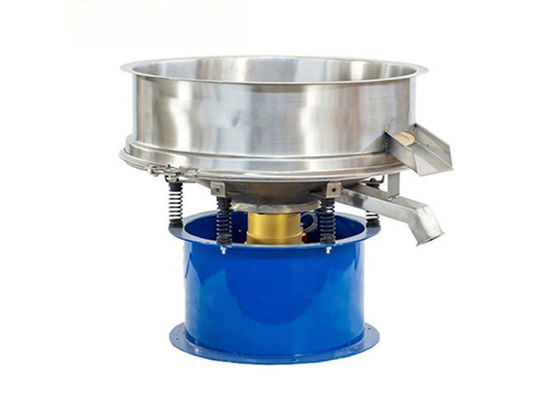

Large Capacity Solid Liquid Separator Ultrasonic Sieving Machine Long Service Life
Introduction of Round Vibrating Separator Screening Machine for Western Medicine Slurry:
Round Vibrating Separator Screening Machine for Western Medicine Slurry is also known as the ceramic glaze filter sieve or ceramic slurry screen machine. It is mainly used for ceramic glaze, or ceramic slurry filtration to remove impurities.
Ceramic vibrating sieve is a kind of energy-saving, line structure equipment. The upper frame of this product is open and raised; the discharge opening is designed on the vibrating body, which is more conducive to discharging. The single-mesh structure design reduces the friction with the mother net and makes the screen longer. The bottom frame and the vibrating body are connected into one body, which reduces the consumption of motor excitation force.
Working Principle of Round Vibrating Separator Screening Machine for Western Medicine Slurry:
The ceramic slurry filter screening machine uses an upright motor as the excitation source.Eccentric blocks are installed on the upper and lower ends of the motor.Adjusting the phase angle of the eccentric block can transform the motor's rotary motion into horizontal, vertical, and inclined three-dimensional motion. This movement is transmitted to the sieve surface.
1. When the upper and lower eccentric blocks are adjusted to 0 degrees, the materials are dispersed from the middle to the surroundings, which is used to screen a large number of rough materials.
2. When the upper and lower eccentric blocks are adjusted to 15 degrees, the material path is dispersed in a vortex, which is used to screen general materials.
3. When the upper and lower eccentric blocks are adjusted to 45 degrees, the materials are dispersed in a rapid vortex to screen fine materials.
4. When the upper and lower eccentric blocks are adjusted to 90 degrees, the materials are concentrated from the periphery to the middle and filtered by wet type.
|Center of Gravity Angle||Purpose||Effect|
|0°||rough classification||the raw material flows from the center line to the circumferential direction|
|15°||general screening||start the vortex motion|
|45°||precision grading||the longest vortex motion|
|>90°||special purpose||raw materials concentrate to the center|
Purpose of Round Vibrating Separator Screening Machine for Western Medicine Slurry:
The slurry vibro filter screen machine is mainly used for the separation of solid liquid in the sieve of mud. It is widely used filtering and screening equipment for the screening and filtering of ceramic mud and environmental protection, sewage, oil paint and other materials. The granular impurities remaining in the slurry can be finely filtered out, which greatly improves the quality of ceramic products.
Characteristics of Round Vibrating Separator Screening Machine for Western Medicine Slurry:
1. Open design and no closed cover that can observe screened materials conveniently.
2. Vibrations keep the mesh constantly free from residues and enable the machine to work 7*24, with brief operator interventions to clean the meshes on a periodic basis.
3. It has large processing capacity within unit time.
4. Using new “Z” type screen frame by our own designed that effectively avoid the friction of the working mesh and supporting as traditional design.
Application of Round Vibrating Separator Screening Machine for Western Medicine Slurry:
1. Environmental protection: garbage, human waste, urine, waste oil, food waste water, waste water processing, etc.
2. Chemical industry: paint, coating, bleach, etc.
3. Pharmaceutical industry: traditional Chinese medicine slurry, western medicine slurry, pharmaceutical intermediates, etc.
4. Food industry: soy sauce, vinegar, soybean milk, fruit juice, pineapple juice, rice wine, rice wine, bean dregs, yeast solution, beverages, etc.
5. Ceramic industry: ceramic slurry, ceramic glaze, etc.
6. Pollution treatment: wastewater, waste oil, pig drying urine, dyeing and finishing wastewater, etc.
7. Paper industry: coating coating, white clay mud, black and white liquid, waste liquid, paper making liquid, wastewater recycling, etc.
Technical Parameters of Round Vibrating Separator Screening Machine for Western Medicine Slurry:
|Diameter||Power||Effective Diameter||Largest Vibration Force|
|800||0.55 KW||800 mm||8000 N|
|1000||0.75 KW||970 mm||10000 N|
|1200||1.1 KW||1170 mm||15000 N|
Note: The above data are for reference only. We can make it according to customer's request.
