|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~30 work days after order confirmed|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||20 sets per month|
|Purpose:||Filtering Slurry, Solid-liquid Separation, Removal Of Impurity Etc.||Diameter:||600mm, 800mm, 1000mm, 1200mm Etc.|
|Layers Of Screen:||1~2 Layers Of Screen||Screen Mesh:||Above 500 Mesh|
|Screen Frame:||Z Type Frame||Material:||Stainless Steel 304, 316L Etc.|
|Characteristics:||Large Processing Capacity, Mesh Is Not Blocked, New Grid Structure, Long Service Life Of Screen Etc.||Application:||Paper Pulp, White Clay Mud, Ceramic Glaze, Ceramic Slurry Etc.|
wet screening equipment,
wet vibrating screen

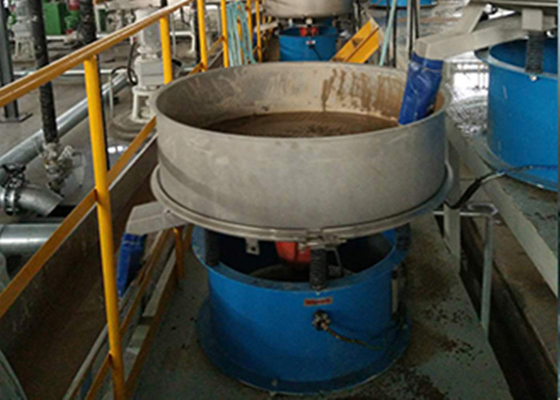

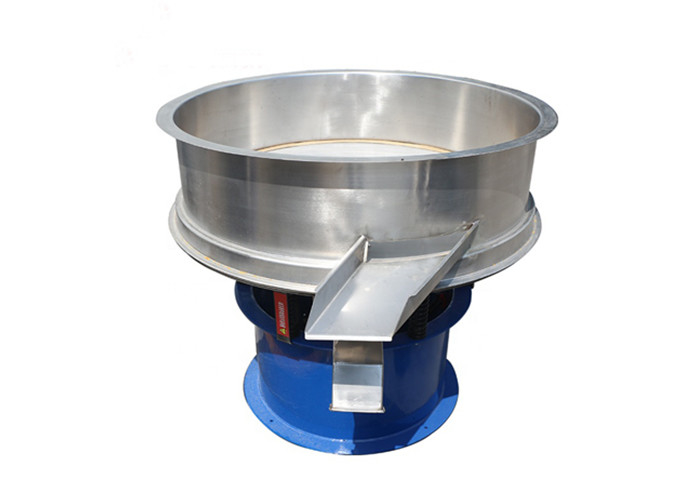

Three Dimensional Solid Liquid Separator White Clay Mud Ultrasonic Vibro Sifter
Introduction of Three Dimensional Vibration Filter Sieve Machine for White Clay Mud:
Three Dimensional Vibration Filter Sieve Machine for White Clay Mud is used for screening slurry and dirty water in general, and it’s our independently patented product. It has been constantly up-dated to reach high level of reliability and performance. At present, it has been used in a number of well-known domestic and foreign ceramic enterprises.
Characteristics of Three Dimensional Vibration Filter Sieve Machine for White Clay Mud:
1. The granularity may be raised by 1-70%,and the output may be improved to 10 times at most;
2. High granularity can solve some difficult problems,such as strong absorbability,being easily to reunite,high static electricity,high density,light proportion and so on;
3. Easy to operate, easy to change the screen mesh, easy to clean;
4. More than 500 mesh sieve, no mesh plug, no attenuation of screening efficiency;
5. Power 18K~40K according to the proportion of low-frequency material can be transferred high frequency; transducers can be continuous work from 12-24 hour;
6. Reach the high precision, high mesh sieve, the same time can control the concentration of particle section effectively;
7. The screen net is hardly plugged by even the most difficultly screened and materials the nature of the screened materials is not unchanged.
Working Principle of Three Dimensional Vibration Filter Sieve Machine for White Clay Mud:
We adopt the new type vertical motor which can make the movement into the 3-D movement: i.e.: horizontal, vertical and incline movement and then pass the movement to the screen surface. While adjusting the phase angle of hammers at upper and lower ends of motor, the movement path of material on the screen surface can be changed.
|Center of Gravity Angle||Main Usage||Effects|
|0°||rough classification||the raw material flows from the center line to the circumferential direction|
|15°||general screening||start the vortex motion|
|45°||precision grading||the longest vortex motion|
|>90°||special purpose||raw materials concentrate to the center|
Purpose of Three Dimensional Vibration Filter Sieve Machine for White Clay Mud:
1. Solid-liquid separation: this kind of device can be used in single, double; can be very effective for dealing with solid and liquid mixture rapidly for solid-liquid separation and filters to filter out different mesh material.
2. Removal of Impurity: it could remove a lot of liquid fraction of miscellaneous materials of different sizes, and separated fast.
3. The filter is mainly used for the ceramic slurry filtration initial time. And now, it’s widely used for the high-throughput filtration.
Technical Parameters of Three Dimensional Vibration Filter Sieve Machine for White Clay Mud:
|Model||Power||Effective Diameter||Largest Vibration Force|
|AY-800||0.55 KW||800 mm||8000 N|
|AY-1000||0.75 KW||970 mm||10000 N|
|AY-1200||1.1 KW||1170 mm||15000 N|
Note: The common voltage and frequency of this slurry vibrating screen is 380V, 50Hz, for other voltage or frequency, we could also customize vibration motor for you. In addition, we can manufacture this type of separator with 1~2 layers.
Application of Three Dimensional Vibration Filter Sieve Machine for White Clay Mud:
1. Ceramic industry: ceramic slurry, ceramic glaze, etc.
2. Paper industry: coating coating, white clay mud, black and white liquid, waste liquid, paper making liquid, wastewater recycling, etc.
3. Food industry: soy sauce, vinegar, soybean milk, fruit juice, pineapple juice, rice wine, rice wine, bean dregs, yeast solution, beverages, etc.
4. Chemical industry: paint, coating, bleach, etc.
5. Pharmaceutical industry: traditional Chinese medicine slurry, western medicine slurry, pharmaceutical intermediates, etc.
6. Environmental protection: garbage, human waste, urine, waste oil, food waste water, waste water processing, etc.
7. Pollution treatment: wastewater, waste oil, pig drying urine, dyeing and finishing wastewater, etc.
