|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~30 work days after order confirmed|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||20 sets per month|
|Purpose:||Solid-liquid Separation, Removal Of Impurity Etc.||Power Source:||One Vibrating Motor, Verticle Arrangement|
|Moving Trajectory:||Three Dimensional Movement||Diameter:||800mm, 1000mm, 1200mm Etc.|
|Layers Of Screen:||1~2 Layers Of Screen||Material:||Carbon Steel, Stainless Steel 304, 316L Etc.|
|Characteristics:||Large Processing Capacity, Mesh Is Not Blocked, New Grid Structure, Long Service Life Of Screen Etc.||Application:||Paper Pulp, White Clay Mud, Ceramic Glaze, Ceramic Slurry Etc.|
wet vibrating screen,
sieve separator machine

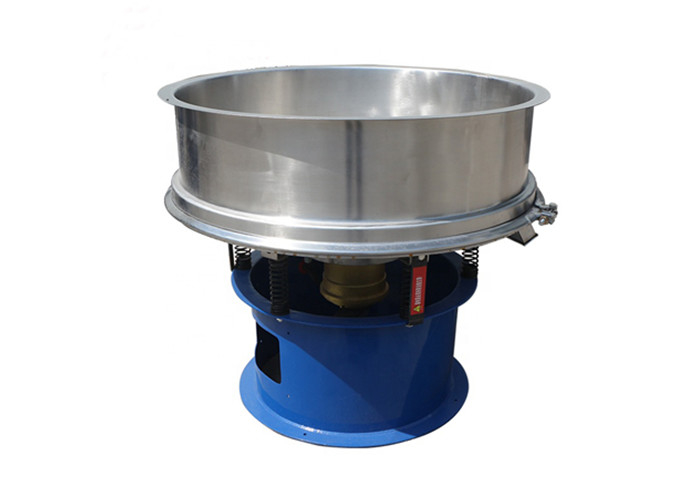

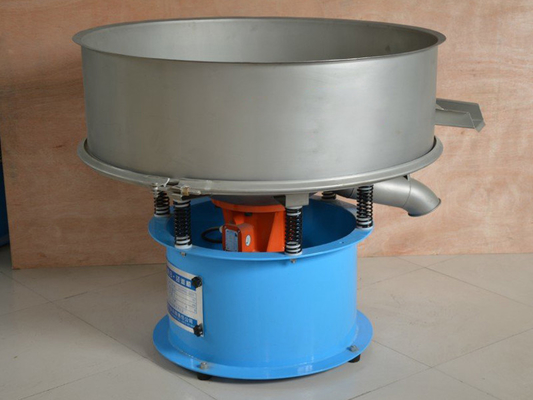

Ceramic Glaze Rotary Vibrating Screen Tumbler Sifter Medium Frequency
Instruction of Medium Frequency Rotary Vibro Filter Screening Machine for Ceramic Glaze:
This Medium Frequency Rotary Vibro Filter Screening Machine for Ceramic Glaze is a screening device independently developed by our company based on the original slurry special screen, through technical improvements and a large number of experiments.
Ceramic sieve is an energy-saving, line-structured type of equipment. The vibration source uses energy-saving aluminum shells and maintenance-free vibration power supplies. The upper frame of the product is an open type; It is more conducive to discharge. The single-mesh structure design reduces the friction with the mother net and makes the screen longer. The bottom frame and the vibrating body are connected into one body, which reduces the consumption of motor excitation force.
Working Principle of Medium Frequency Rotary Vibro Filter Screening Machine for Ceramic Glaze:
The filter sieve's vertical motor, which is installed eccentric hammers on the top and bottom, is regarded as a vibratory source. The eccentric hammers change rotation into horizontal, vertical and inclined movement, and then pass the movement to the sieving surface. Adjusting the phase angle on the top and bottom can change trajectories of the materials on the sieve.
|Center of Gravity Angle||Main Usage||Effects|
|0°||rough classification||the raw material flows from the center line to the circumferential direction|
|15°||general screening||start the vortex motion|
|45°||precision grading||the longest vortex motion|
|>90°||special purpose||raw materials concentrate to the center|
Purpose of Medium Frequency Rotary Vibro Filter Screening Machine for Ceramic Glaze:
-Dewatering solids of liquids
-Foods, chemicals, pulp
|♦ Solids classification in liquid medium
-Separation of solids into sized fraction in liquid medium
-Chemicals, minerals, pulp and paper, ceramics, waste disposal
Characteristics of Medium Frequency Rotary Vibro Filter Screening Machine for Ceramic Glaze:
1. The mature single-net double-hoop net rack is selected, and the outlet of the sieve is located on the vibrating body, which speeds up the discharge speed and has higher efficiency per unit time.
2. Adopt high rubber content sealing ring to prevent slurry leakage.
3. The ceramic mud vibrating screen has no upper cover design, which is easy to observe the screen surface. The outlet can be adjusted 360 degrees arbitrarily. It is easy to use and has a strong adaptability to the site installation.
4. Specially designed screen frame for slurry filtering screen, the height of the frame is higher to prevent slurry splashing.
5. Operate in a completely closed state, the dust does not fly, the working environment is good, the liquid does not leak, the mesh is not blocked, the screening can reach 500 mesh, and the filtration can reach 5 μm.
6. Sandblasting / plastic spraying (optional) treatment of vibrating body and sieve frame, the industry has better anti-corrosion and anti-rust effect, and the equipment is used longer.
7. The bottom can be designed according to the user's requirements. It does not need to install foundation, which is very convenient.
8. Simple operation ceramic mud vibrating screen, easy to disassemble and install, self-cleaning function is set inside the product, no sanitary dead corner, easy to clean and clean, good effect, meet food high standards, ceramic mud vibrating screen, green environmental protection.
Application of Medium Frequency Rotary Vibro Filter Screening Machine for Ceramic Glaze:
1. Ceramic industry: ceramic slurry, ceramic glaze, etc.
2. Paper industry: coating coating, white clay mud, black and white liquid, waste liquid, paper making liquid, wastewater recycling, etc.
3. Chemical industry: paint, coating, bleach, etc.
4. Food industry: soy sauce, vinegar, soybean milk, fruit juice, pineapple juice, rice wine, rice wine, bean dregs, yeast solution, beverages, etc.
5. Pollution treatment: wastewater, waste oil, pig drying urine, dyeing and finishing wastewater, etc.
6. Pharmaceutical industry: traditional Chinese medicine slurry, western medicine slurry, pharmaceutical intermediates, etc.
7. Environmental protection: garbage, human waste, urine, waste oil, food waste water, waste water processing, etc.
Technical Parameters of Medium Frequency Rotary Vibro Filter Screening Machine for Ceramic Glaze:
|Model||Power||Effective Diameter||Largest Vibration Force|
Note: The common voltage and frequency of this slurry Vibratory Separator is 380V, 50Hz, for other voltage or frequency, we could also customize vibration motor for you. In addition, we can manufacture this type of separator with 1-2 layers. The above-mentioned data is only for reference and the data may be changed subject to the model, mesh, material and the treatment volume in the alteration of features.
Contact Person: Ms. Magie
Movement: linear motion
Drive Device: two sets of horizontal vibrating motor
Purpose: used in wet screening. Desliming and cleaning while sifting
Application: widely used in sand and stone field, ore dressing, road and bridge construction site and other occasions where the material needs to be cleaned, sieved and classified
Purpose: suitable for powder screening and slurry filtration with less impurity content
Automatic Discharge: the undersize material can be discharged automatically from the outlet, while the oversize should be dumped manually
Movement: three dimensional vibration
Advantage: small size, and easy to clean the screen mesh
