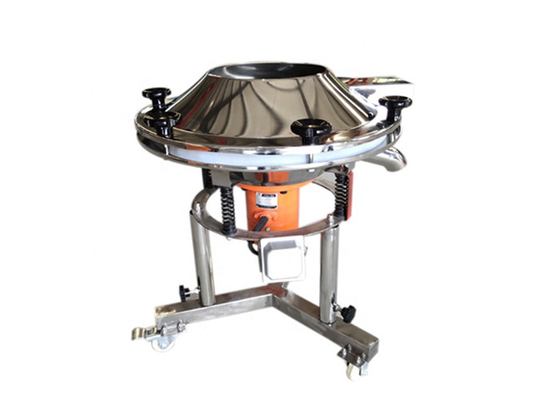

Soy Sauce Solid Liquid Separator Vibration Filtering And Screening Machine

Soy Sauce Solid Liquid Separator Vibration Filtering And Screening Machine

  • Soy Sauce Solid Liquid Separator Vibration Filtering And Screening Machine
  • Soy Sauce Solid Liquid Separator Vibration Filtering And Screening Machine
Soy Sauce Solid Liquid Separator Vibration Filtering And Screening Machine
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~30 work days after order confirmed
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Alternative Names: Ceramic Glaze Vibrating Screen, High Frequency Vibrating Screen, Vibrating Filter Sieve Vibration Frequency: 3000 Times/min
Purpose: Solid-liquid Separation, Removal Of Impurities Motion: Rotary Three Dimensional Motion
Characteristics: High Accuracy, High Efficiency, Small Size, Light Weight, Easy To Move Material: Stainless Steel 304, 316L Etc.
Power Source: One 2-pole Vibrating Motor Application: Ceramic Glazes, Ceramic Slurry, Powder Coating, Soybean Milk Etc.
High Light:

wet vibrating screen

,

sieve separator machine

Soy Sauce Solid Liquid Separator Vibration Filtering And Screening Machine



Introduction of High Frequency Vibration Filtering And Screening Machine for Soy Sauce​:

High Frequency Vibration Filtering And Screening Machine for Soy Sauce is developed to solve the problems of the efficient sieving of slurry materials. So that the high capacity can be guaranteed while sieving precision can be assured.

  The high-frequency vibro sifter screen machine destroys the tension of the slurry surface by high-frequency vibration and increases the high-speed oscillation of the fine-grained material on the sieve surface, accelerates the large-density (specific gravity) useful materials and separation, and increases the percentage of undersized fine materials touching the sieve. Thus, the capacity can be increased sharply.



More Information About High Frequency Vibration Filtering And Screening Machine for Soy Sauce​:

Name high frequency vibrating screen, high frequency vibro sifter
Features high-frequency vibration
Layers of Screen 1~2 layers of screen
Motion three dimensional motion
Power Source one set of verticle vibrating motor
Frequency 3000 times per minute
Exciting Force 3KN~15KN
Diameter 450mm, 600mm, 800mm, 1000mm, 1200mm
Material stainless steel 304, 316L etc.
Application ceramic glazes, ceramic slurry, powder coating, soybean milk, etc.



Purpose of High Frequency Vibration Filtering And Screening Machine for Soy Sauce​:

1. Solid-liquid Separation: the high frequency vibro screen machine can deal with mixed solid and liquid materials effectively, realize solid-liquid separation quickly, and filter out materials of different orders.

2. Removal of Impurities: the high frequency vibrating sieve can remove a large number of liquid materials in different sizes of a small part of impurities, rapid separation.



Technical Parameters of High Frequency Vibration Filtering And Screening Machine for Soy Sauce:

Diameter
(mm)
Power
(kw)
Effective Diameter of Mesh
(mm)
Exciting Force(kN) Weight
(kg)
450 0.18 420 3 50
600 0.25 600 5 65
800 0.55 800 8 78
1000 0.75 970 10 130
1200 1.1 1170 15 170



Features of High Frequency Vibration Filtering And Screening Machine for Soy Sauce:

1. Simple and easy to use structure, small size, light weight, convenient installation and movement, easy maintenance and long service life.
2. High screening accuracy, screening particle size can reach more than 400 mesh, a wide range of use, any powder, grain, mucus can be applied.
3. Unique design of vibro sifter is one perfect choice for high capacity separation of slurry.
4. The amplitude is small, the frequency is high, can reach 3000 / min, the screening effect of fine-grained, high-viscosity materials is more obvious, the effect is better.
5. Unique screen structure, loading network is convenient and fast, 3 to 5 minutes can be installed.
6. Low energy consumption, high efficiency, compared with similar models, energy consumption can be reduced by half and production can be doubled.



Working Principle of High Frequency Vibration Filtering And Screening Machine for Soy Sauce:

  The high-frequency screen uses the eccentric weights on the upper and lower ends of the vertical vibration motor shaft to generate eccentric forces after running. This eccentric force simultaneously resolves three kinds of forces (that is, horizontal force, vertical force, and tilt force). These three forces At the same time, it is transferred to the sieve surface, so that the material makes regular movement on the sieve surface, which is the screening process.

  By adjusting the angle of the upper and lower hammers, the running trajectory of the material on the sieve surface can be changed, thereby adjusting the processing effect in the production process.

Soy Sauce Solid Liquid Separator Vibration Filtering And Screening Machine 0

Center of Gravity Angle Main Usage Effects
rough classification the raw material flows from the center line to the circumferential direction
15° general screening start the vortex motion
45° precision grading the longest vortex motion
>90° special purpose raw materials concentrate to the center



Application of High Frequency Vibration Filtering And Screening Machine for Soy Sauce​:

1. Ceramic industry: ceramic slurry, ceramic glaze, etc.

2. Paper industry: coating coating, white clay mud, black and white liquid, waste liquid, paper making liquid, waste water recycling, etc.

3. Chemical industry: paint, coating, bleach, etc.

4. Food industry: soy sauce, vinegar, soybean milk, fruit juice, pineapple juice, rice wine, rice wine, bean dregs, yeast solution, beverages, etc.
5. Pharmaceutical industry: traditional Chinese medicine slurry, western medicine slurry, pharmaceutical intermediates, etc.
6. Environmental protection: garbage, human and animal waste, waste oil, food waste water, waste water processing, etc.



Soy Sauce Solid Liquid Separator Vibration Filtering And Screening Machine 1Soy Sauce Solid Liquid Separator Vibration Filtering And Screening Machine 2
