| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for export |
| Delivery Time: | 20~30 work days after order confirmed |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
| Purpose: | Solid-liquid Separation, Removal Of Impurities | Characteristics: | Small Size, Light Weight, Easy To Move, High Accuracy And High Efficiency |
|---|---|---|---|
| Motion: | Three-dimensional Motion | Vibration Frequency: | 3000 Times/min |
| Machine Diameter: | 450mm, 600mm, 800mm, 1000mm, 1200mm | Screen Decks: | 1~2 Decks |
| Power Source: | One Vibrating Motor, 2 Poles | Application: | Powder Coating, Ceramic Glazes, Ceramic Slurry, Bleaching Agent Etc. |
| High Light: | wet screening equipment,wet vibrating screen |
||

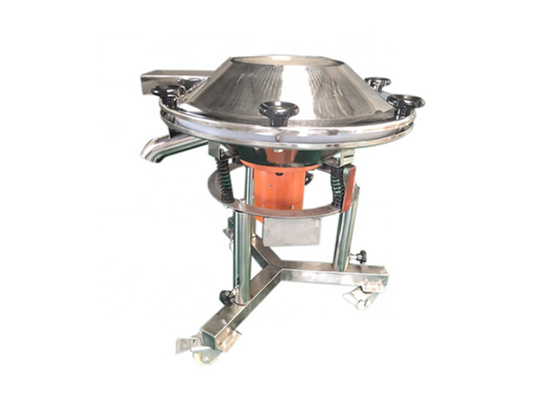

Painting Coating Vibro Sieve Separator Solid Liquid Separation Easy To Clean
Introduction of High Frequency Vibro Sifter Machine for Painting And Coating Products:
High Frequency Vibro Sifter Machine for Painting And Coating Products is widely used in the food industry, chemical industry, pharmaceutical industry, abrasive ceramics, metallurgical industry for any powder, granules, slime screening. Especially suitable for high concentration liquid filtration. High-frequency sieve has high efficiency, small amplitude, and high screening frequency. Convenient operation, low energy consumption, easy to clean.
Purpose of High Frequency Vibro Sifter Machine for Painting And Coating Products:
1. Solid-liquid Separation: the high frequency vibro screen machine can deal with mixed solid and liquid materials effectively, realize solid-liquid separation quickly, and filter out materials of different orders.
2. Removal of Impurities: the high frequency vibrating sieve can remove a large number of liquid materials in different sizes of a small part of impurities, rapid separation.
More Information About High Frequency Vibro Sifter Machine for Painting And Coating Products:
| Name | high frequency vibrating screen, high frequency vibro sifter |
| Features | high-frequency vibration |
| Layers of Screen | 1~2 layers of screen |
| Motion | three dimensional motion |
| Power Source | one set of verticle vibrating motor |
| Frequency | 3000 times per minute |
| Exciting Force | 3KN~15KN |
| Diameter | 450mm, 600mm, 800mm, 1000mm, 1200mm |
| Material | stainless steel 304, 316L etc. |
| Application | ceramic glazes, ceramic slurry, powder coating, soybean milk, etc. |
Features of High Frequency Vibro Sifter Machine for Painting And Coating Products:
1. Special spring support screen frame, vibration isolation and sound absorption, low noise, small dynamic load of equipment, no need for concrete foundation, directly can be placed on the platform for use.
2. Adopt laminated screen, increase the aperture of single layer, make the screen life add, and prevent blocking and grinding.
3. High vibration, low amplitude, can effectively reduce the surface tension of the slurry, conducive to the separation and stratification of fine and heavy materials and speed up the screening of fine and heavy materials.
4. Screen surface has high utilization rate, large processing capacity and low power consumption.
Technical Parameters of High Frequency Vibro Sifter Machine for Painting And Coating Products:
| Diameter (mm) |
Power (kw) |
Effective Diameter of Mesh (mm) |
Exciting Force(kN) | Weight (kg) |
| 450 | 0.18 | 420 | 3 | 50 |
| 600 | 0.25 | 600 | 5 | 65 |
| 800 | 0.55 | 800 | 8 | 78 |
| 1000 | 0.75 | 970 | 10 | 130 |
| 1200 | 1.1 | 1170 | 15 | 170 |
Working Principle of High Frequency Vibro Sifter Machine for Painting And Coating Products:
The principle of high-frequency sieve is different from ordinary screening equipment. Due to the use of high frequency, on the one hand, the tension of the slurry surface and the high-speed oscillation of fine particles on the sun surface are destroyed, which accelerates the high-density useful slurry and segregation. Added less than the probability of particle size material coming in contact with the screen. It then creates better separation conditions, so that materials smaller than the separation size, especially materials with larger specific gravity, pass through the sieve holes and become under-screen materials together. It has the advantages of high efficiency, small amplitude, large vibration frequency and higher screening efficiency.
| Center of Gravity Angle | Main Usage | Effects |
| 0° | rough classification | the raw material flows from the center line to the circumferential direction |
| 15° | general screening | start the vortex motion |
| 45° | precision grading | the longest vortex motion |
| >90° | special purpose | raw materials concentrate to the center |
Application of High Frequency Vibro Sifter Machine for Painting And Coating Products:
The high frequency vibrating sieve machine can be used in food, medicine, chemical, non-metallic ore, metallurgy, abrasives, ceramics, rubber, plastics, building materials, coatings, pigments, papermaking, petrochemicals, military, environmental protection, urea, brewing and other industries for classification of dry powder materials and slurry filtration.
For example, ceramics are various products made of natural clay and various natural minerals as the main raw materials, which are made by crushing, mixing, molding and calcining. Due to the strict technical requirements for the production of ceramics, a professional vibration filtering and screening machine is usually used to screen and filter the ceramic slurry, ceramic glaze or ceramic powder before the production of ceramics. The main purpose is to screen and filter the impurities and large Particles etc.
