| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for export |
| Delivery Time: | 20~30 work days after order confirmed |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
| Purpose: | Solid-liquid Separation, Removal Of Impurities | Frequency: | 3000 Times Per Minute |
|---|---|---|---|
| Movement: | Three-dimensional Movement | Layers Of Screen: | 1~2 Layers Of Screen |
| Diameter: | 450mm, 600mm, 800mm, 1000mm, 1200mm | Power Source: | One Set Of Verticle Vibrating Motor, 2 Poles |
| Advantages: | Low Energy Consumption, High Efficiency, High Screening Accuracy, Small Amplitude | Application: | Powder Coating, Ceramic Glazes, Ceramic Slurry, Bleaching Agent Etc. |
| High Light: | wet screening equipment,wet vibrating screen |
||
High Accuracy Solid Liquid Separator Machine 3000 Times Per Minute Frequency
Introduction of High Frequency Vibration Solid Liquid Separator Machine for Papermaking Liquid:

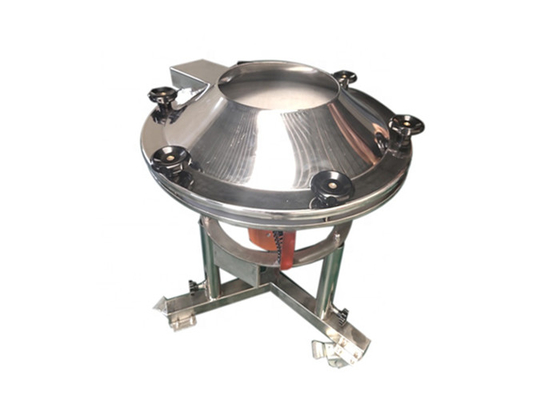

High Frequency Vibration Solid Liquid Separator Machine for Papermaking Liquid is special for sieving glaze, pigment and highly viscous fluids. The high frequency vibration movement enables the use of meshes with very fine mesh size. The trolley, which is adjustable in height, makes the machine easy to move around in production lines and in preparation and storage departments.
Purpose of High Frequency Vibration Solid Liquid Separator Machine for Papermaking Liquid:
1. Solid-liquid Separation: this vibro screen machine can deal with mixed solid and liquid materials effectively, realize solid-liquid separation quickly, and filter out materials of different orders.
2. Removal of Impurities: this vibrating sieve can remove a large number of liquid materials in different sizes of a small part of impurities, rapid separation.
Features of High Frequency Vibration Solid Liquid Separator Machine for Papermaking Liquid:
1. High vibration, low amplitude, can effectively reduce the surface tension of the slurry, conducive to the separation and stratification of fine and heavy materials and speed up the screening of fine and heavy materials.
2. Adopt laminated screen, increase the aperture of single layer, make the screen life add, and prevent blocking and grinding.
3. Special spring support screen frame, vibration isolation and sound absorption, low noise, small dynamic load of equipment, no need for concrete foundation, directly can be placed on the platform for use.
4. Screen surface has high utilization rate, large processing capacity and low power consumption.
More Information About High Frequency Vibration Solid Liquid Separator Machine for Papermaking Liquid:
| Name | high frequency vibrating screen |
| Features | high-frequency vibration |
| Layers of Screen | 1~2 layers of screen |
| Motion | three dimensional vibration |
| Power Source | one set of verticle vibrating motor |
| Frequency | 3000 times per minutes |
| Exciting Force | 3KN~15KN |
| Material | stainless steel 304, 316L etc. |
| Application | ceramic glazes, powder coating, soybean milk, slurry etc. |
Working Principle of High Frequency Vibration Solid Liquid Separator Machine for Papermaking Liquid:
The principle of high-frequency sieve is different from ordinary screening equipment. Due to the use of high frequency, on the one hand, the tension of the slurry surface and the high-speed oscillation of fine particles on the sun surface are destroyed, which accelerates the high-density useful slurry and segregation. Added less than the probability of particle size material coming in contact with the screen. It then creates better separation conditions, so that materials smaller than the separation size, especially materials with larger specific gravity, pass through the sieve holes and become under-screen materials together. It has the advantages of high efficiency, small amplitude, large vibration frequency and higher screening efficiency.
| Center of Gravity Angle | Main Usage | Effects |
| 0° | rough classification | the raw material flows from the center line to the circumferential direction |
| 15° | general screening | start the vortex motion |
| 45° | precision grading | the longest vortex motion |
| >90° | special purpose | raw materials concentrate to the center |
Application of High Frequency Vibration Solid Liquid Separator Machine for Papermaking Liquid:

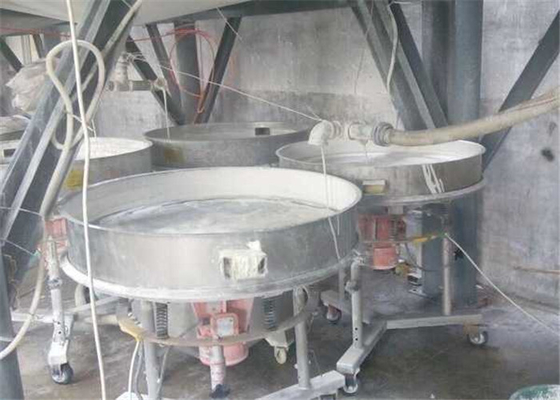

High frequency vibration filter screen can be used in chemical industry, food, medicine, non-metallic minerals, metallurgy, abrasive, ceramics, rubber, plastics, building materials, paint, pigment, papermaking, petrochemical, military industry, environmental protection, urea, brewing and other industries for dry powder material classification and slurry filtration.
Technical Parameters of High Frequency Vibration Solid Liquid Separator Machine for Papermaking Liquid:
| Diameter (mm) |
Power (kw) |
Effective Diameter of Mesh (mm) |
Exciting Force(kN) | Weight (kg) |
| 450 | 0.18 | 420 | 3 | 50 |
| 600 | 0.25 | 600 | 5 | 65 |
| 800 | 0.55 | 800 | 8 | 78 |
| 1000 | 0.75 | 970 | 10 | 130 |
| 1200 | 1.1 | 1170 | 15 | 170 |
