| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for export |
| Delivery Time: | 20~30 work days after order confirmed |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
| Feature: | High-frequency Vibration | Movement: | Three-dimensional Movement |
|---|---|---|---|
| Purpose: | Solid-liquid Separation, Removal Of Impurities | Layers Of Screen: | 1~2 Screen Layers |
| Diameter: | 450mm, 600mm, 800mm, 1000mm, 1200mm | Vibrating Motor: | One Set Of Verticle Vibrating Motor, 2 Poles |
| Advantages: | Strong Excitation Force, Reliable Structure, High Efficiency, Low Vibration Noise, Rugged And Durable, Easy Maintenance Etc. | Application: | Bleaching Agent, Powder Coating, Ceramic Glazes, Ceramic Slurry Etc. |
| High Light: | wet vibrating screen,sieve separator machine |
||

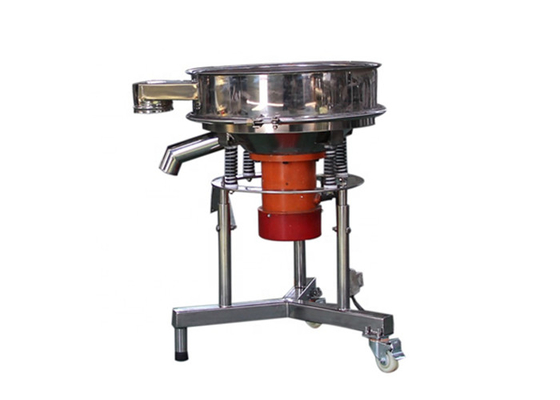

Reliable Solid Liquid Separator Stainless Steel For Decolorizer Bleaching Agent
Introduction of Stainless Steel High Frequency Vibrating Screen for Decolorizer Bleaching Agent:
The Stainless Steel High Frequency Vibrating Screen for Decolorizer Bleaching Agent is a high frequency and low energy consumption screening filter equipment.
Because high frequency vibrating screen adopts high frequency vibration, it is especially suitable for filtration and screening of material particles, pulp, slurry and other liquid products.Such as soy milk, dairy, liquid medicine, chocolate pulp, pulp and so on. The commonly used filtration range is between 20 and 325 mesh.
Features of Stainless Steel High Frequency Vibrating Screen for Decolorizer Bleaching Agent:
1. High vibration frequency, up to 3000 times per minute, the effect of sieving fine-grained, high-viscosity materials is more obvious.
2. Except for the motor, all of them are made of stainless steel with beautiful appearance.
3. Small size, light weight, convenient installation and movement, height can be adjusted freely.
4. Unique screen structure, easy and quick to install the screen.
5. High sieving accuracy and high efficiency. Any powder, granule and slime can be used.
More Information About Stainless Steel High Frequency Vibrating Screen for Decolorizer Bleaching Agent:
| Name | high frequency vibrating screen |
| Features | high-frequency vibration |
| Layers of Screen | 1~2 layers of screen |
| Motion | three dimensional vibration |
| Power Source | one set of verticle vibrating motor |
| Frequency | 3000 times per minutes |
| Exciting Force | 3KN~15KN |
| Material | stainless steel 304, 316L etc. |
| Application | ceramic glazes, powder coating, soybean milk, slurry etc. |
Working Principle of Stainless Steel High Frequency Vibrating Screen for Decolorizer Bleaching Agent:
The working principle of high-frequency vibrating screen is similar to that of ordinary three-dimensional vibrating screen, but the high-frequency vibrating screen has a vibration frequency of up to 3000 times per minute, which can instantly destroy the tension on the surface of the pulp and cause the fine-grained material to oscillate at high speed on the screen surface, increasing less than The probability of contact between the granular material and the sieve holes greatly improves the efficiency of screening and filtering. Eccentric blocks are installed on the upper and lower shafts of the high-frequency filter screen vertical motor. Adjusting the phase angle of the eccentric blocks can change the trajectory of the screen surface material.
| Center of Gravity Angle | Main Usage | Effects |
| 0° | rough classification | the raw material flows from the center line to the circumferential direction |
| 15° | general screening | start the vortex motion |
| 45° | precision grading | the longest vortex motion |
| >90° | special purpose | raw materials concentrate to the center |
Technical Parameters of Stainless Steel High Frequency Vibrating Screen for Decolorizer Bleaching Agent:
| Diameter (mm) |
Power (kw) |
Effective Diameter of Mesh (mm) |
Exciting Force(kN) | Weight (kg) |
| 450 | 0.18 | 420 | 3 | 50 |
| 600 | 0.25 | 600 | 5 | 65 |
| 800 | 0.55 | 800 | 8 | 78 |
| 1000 | 0.75 | 970 | 10 | 130 |
| 1200 | 1.1 | 1170 | 15 | 170 |
Purpose of Stainless Steel High Frequency Vibrating Screen for Decolorizer Bleaching Agent:
1. Solid-liquid Separation: this vibro screen machine can deal with mixed solid and liquid materials effectively, realize solid-liquid separation quickly, and filter out materials of different orders.
2. Removal of Impurities: this vibrating sieve can remove a large number of liquid materials in different sizes of a small part of impurities, rapid separation.
Application of Stainless Steel High Frequency Vibrating Screen for Decolorizer Bleaching Agent:
1. Food industry: soy sauce, vinegar, soybean milk, fruit juice, pineapple juice, rice wine, rice wine, bean dregs, yeast solution, beverages, etc.
2. Chemical industry: paint, coating, bleach, etc.
3. Ceramic industry: ceramic slurry, ceramic glaze, etc.
4. Paper industry: coating coating, white clay mud, black and white liquid, waste liquid, paper making liquid, waste water recycling, etc.
5. Pharmaceutical industry: traditional Chinese medicine slurry, western medicine slurry, pharmaceutical intermediates, etc.
6. Environmental protection: garbage, human and animal waste, waste oil, food waste water, waste water processing, etc.
