| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for export |
| Delivery Time: | 20~30 work days after order confirmed |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
| Feature: | 3000 Times/min High-frequency Vibration | Purpose: | Removal Of Impurities, Solid-liquid Separation |
|---|---|---|---|
| Diameter: | 450mm, 600mm, 800mm, 1000mm, 1200mm | Layers Of Screen: | 1~2 Layers Of Screen |
| Vibrating Motor: | One Unit Verticle 2-pole Vibrating Motor | Universal Wheel: | Yes |
| Characteristics: | Small Size, Simple Structure, Easy To Move, Freely Adjust Height | Application: | Powder Coating, Ceramic Glazes, Soybean Milk, Slurry Etc. |
| High Light: | wet vibrating screen,sieve separator machine |
||

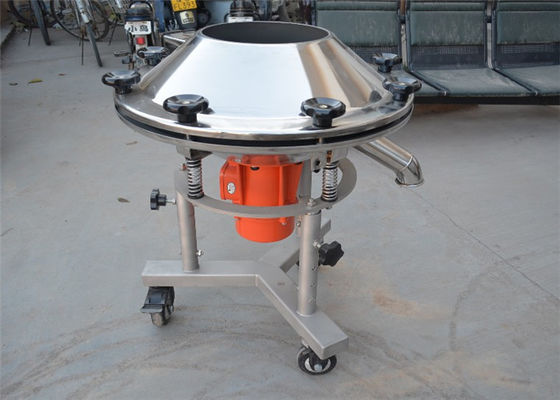

Introduction of Ceramic Glaze High Frequency Vibrating Filter Screening Machine:
Ceramic Glaze High Frequency Vibrating Filter Screening Machine has simple structure, light weight, easy to move and freely adjust height. The vibration frequency is high up to 3000 times per minute. High screening precision and efficiency, it applies to any powder, granule and serosity. In addition to electrical parts, the other parts are made of stainless steel 304, 316L.
More Information About Ceramic Glaze High Frequency Vibrating Filter Screening Machine:
| Name | high frequency vibrating screen |
| Features | high-frequency vibration |
| Layers of Screen | 1~2 layers of screen |
| Motion | three dimensional vibration |
| Power Source | one set of verticle vibrating motor |
| Frequency | 3000 times per minutes |
| Exciting Force | 3KN~15KN |
| Material | stainless steel 304, 316L etc. |
| Application | ceramic glazes, powder coating, soybean milk, slurry etc. |
Features of Ceramic Glaze High Frequency Vibrating Filter Screening Machine:
1. Simple structure is simple, easy to maintain, durable.
2. Resonance driving, low power, low noise.
3. No rotating parts, no need to add lubricating oil.
4. Adjustable excitation force and amplitude, work with various particles.
5. Stable work, reach stable amplitude as soon as starting.
Purpose of Ceramic Glaze High Frequency Vibrating Filter Screening Machine:
1. Solid-liquid separation: this equipment can deal with mixed solid and liquid materials effectively, realize solid-liquid separation quickly, and filter out materials of different orders.
2. Removal of impurities: this equipment can remove a large number of liquid materials in different sizes of a small part of impurities, rapid separation.
Working Principle of Ceramic Glaze High Frequency Vibrating Filter Screening Machine:
The high frequency vibro screen machine is a vibration screening device. Vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. Rotation of the top weight creates vibration in the horizontal plane, which causes material to move across the screen cloth to the periphery. The lower weight acts to tilt the machine, causing vibration in the vertical and tangential planes. The angle of lead given the lower weight with relation to the upper weight provides variable control of the spiral screening pattern. Speed and spiral pattern of material travel over the screen cloth can be set by the operator for maximum throughput and screening efficiency of any product: wet or dry, heavy or light, coarse or fine, hot or cold etc.
| Center of Gravity Angle | Main Usage | Effects |
| 0° | rough classification | the raw material flows from the center line to the circumferential direction |
| 15° | general screening | start the vortex motion |
| 45° | precision grading | the longest vortex motion |
| >90° | special purpose | raw materials concentrate to the center |
Technical Parameters of Ceramic Glaze High Frequency Vibrating Filter Screening Machine:
| Diameter (mm) |
Power (kw) |
Effective Diameter of Mesh (mm) |
Exciting Force(kN) | Weight (kg) |
| 450 | 0.18 | 420 | 3 | 50 |
| 600 | 0.25 | 600 | 5 | 65 |
| 800 | 0.55 | 800 | 8 | 78 |
| 1000 | 0.75 | 970 | 10 | 130 |
| 1200 | 1.1 | 1170 | 15 | 170 |
Application of Ceramic Glaze High Frequency Vibrating Filter Screening Machine:
The rotary high-frequency vibrating sieve is widely used in starch, soybeans, salt, instant potatoes, animal feed, powdered milk, soybean flour, broth concentrate, vegetable and pickle canneries, soybean oil, cereals and grains, tobacco, teff, instant coffee granules, chocolate powder, potato granules, sugar beets, ice cream, fruit juices, milk, sugar, spices, poultry and seafood processors.
