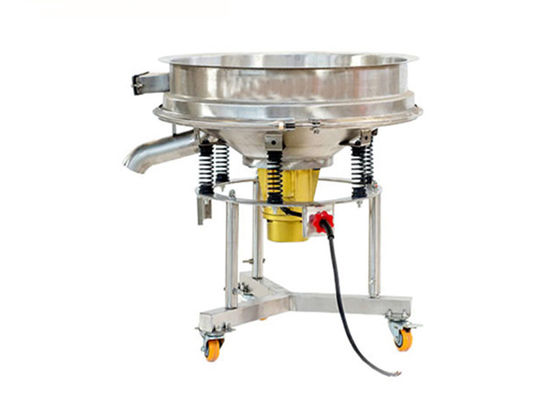

High Frequency Solid Liquid Separator For Chocolate Syrup

High Frequency Solid Liquid Separator For Chocolate Syrup
High Frequency Solid Liquid Separator For Chocolate Syrup High Frequency Solid Liquid Separator For Chocolate Syrup

Large Image :  High Frequency Solid Liquid Separator For Chocolate Syrup

Product Details:

Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~30 work days after order confirmed
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 20 sets per month
Detailed Product Description
Feature: High-frequency Vibration, 3000 Times/min Purpose: Solid-liquid Separation, Removal Of Impurities
Characteristics: Low Amplitude, High Efficiency, High Screening Frequency And Low Noise Material: Stainless Steel 304, 316L Etc.
Diameter: 450mm, 600mm, 800mm, 1000mm, 1200mm Layers Of Screen: 1~2 Layers Of Screen
Exciting Force: 3KN~15KN Power: 0.25KW~1.1KW
Vibrating Motor: One Unit Verticle Vibrating Motor, 2 Pole Application: Ceramic Glazes, Powder Coating, Soybean Milk, Slurry Etc.
High Light:

wet screening equipment

,

wet vibrating screen

High Frequency Solid Liquid Separator For Chocolate Syrup



Introduction of High-frequency Vibrating Filter Screening Machine for Chocolate Syrup​:

Different from the principle of ordinary screening equipment, the high-frequency vibrating filter screening machine for chocolate syrup breaks the liquid surface tension and the particles high-speed movement, to let undersize particle contact mesh hole easier. Thereby improving the separation efficiency. Widely used in mining, building materials, transportation, energy, chemical and other industries.



Purpose of High-frequency Vibrating Filter Screening Machine for Chocolate Syrup​:

1. Removal of impurities: this equipment can remove a large number of liquid materials in different sizes of a small part of impurities, rapid separation.

2. Solid-liquid separation: this equipment can deal with mixed solid and liquid materials effectively, realize solid-liquid separation quickly, and filter out materials of different orders.



Features of High-frequency Vibrating Filter Screening Machine for Chocolate Syrup​:

1. Configured for classification, sieving, cleaning and washing,Up to 5 times outlet compared than common sieving machine.
2. Each high-frequency vibrating screen is fitted with activities frame, can be moved arbitrary in the workplace, and can adjust the level of height
3. Centralized control vibration parameters. All screen machine vibration parameters by using the computer centralized control, convenient adjustment, and can be incorporated in the manufacturer of automatic control system.
4. Auto discharge gate available and facilitates impure and rough materials.
5. Tough modular design, no dead corners, low part weights, low acceleration, long service life of all parts, no product degradation.



Working Principle of High-frequency Vibrating Filter Screening Machine for Chocolate Syrup​​:

  The high frequency vibro sieve is a vibratory screening device. Vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. Rotation of the top weight creates vibration in the horizontal plane, which causes material to move across the screen cloth to the periphery. The lower weight acts to tilt the machine, causing vibration in the vertical and tangential planes. The angle of lead given the lower weight with relation to the upper weight provides variable control of the spiral screening pattern. Speed and spiral pattern of material travel over the screen cloth can be set by the operator for maximum throughput and screening efficiency of any product: wet or dry, heavy or light, coarse or fine, hot or cold etc.

High Frequency Solid Liquid Separator For Chocolate Syrup 0

Center of Gravity Angle Main Usage Effects
rough classification the raw material flows from the center line to the circumferential direction
15° general screening start the vortex motion
45° precision grading the longest vortex motion
>90° special purpose raw materials concentrate to the center



More Information About High-frequency Vibrating Filter Screening Machine for Chocolate Syrup​:

Name high frequency vibrating screen
Features high-frequency vibration
Layers of Screen 1~2 layers of screen
Motion three dimensional vibration
Power Source one set of verticle vibrating motor
Frequency 3000 times per minutes
Exciting Force 3KN~15KN
Material stainless steel 304, 316L etc.
Application

ceramic glazes, powder coating, soybean milk,  slurry etc.



Technical Parameters of High-frequency Vibrating Filter Screening Machine for Chocolate Syrup​:

Diameter
(mm)
Power
(kw)
Effective Diameter of Mesh
(mm)
Exciting Force(kN) Weight
(kg)
450 0.18 420 3 50
600 0.25 600 5 65
800 0.55 800 8 78
1000 0.75 970 10 130
1200 1.1 1170 15 170



Application of High-frequency Vibrating Filter Screening Machine for Chocolate Syrup​​:
  The rotary high-frequency vibro screen machine is widely used in potato granules, sugar beets, ice cream, fruit juices, milk, sugar, spices, starch, soybeans, salt, instant potatoes, animal feed, powdered milk, cereals and grains, tobacco, teff, instant coffee granules, chocolate powder, soybean flour, broth concentrate, vegetable and pickle canneries, soybean oil, poultry and seafood processors.



High Frequency Solid Liquid Separator For Chocolate Syrup 1
