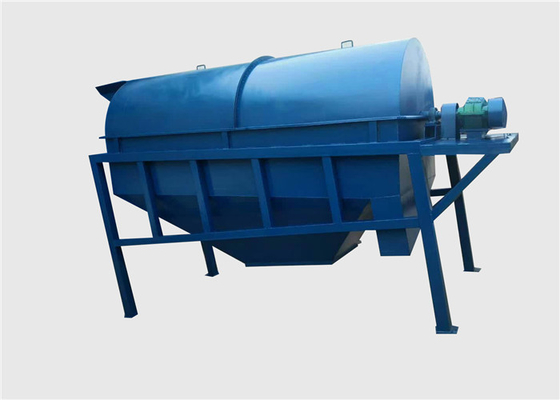

Rotary Trommel Drum Screen Machine Soil Sand Gravel Classifying Trommel Sieve
Introduction of Rotary Trommel Drum Screen Machine for Soil Sand Gravel Classifying:
The Rotary Trommel Drum Screen Machine for Soil Sand Gravel Classifying is cylindrical drum, which is inclined and installed on the frame. The geared motor is connected to the drum device through a coupling, the driving drum will rotate around the axis direction.
This sieve machine can also be called trommel screen, rotary screen, trommel vibrating screen, trommel vibrating sieve, drum screen, drum sieve, drum screening machine, revolving screen, cylinder round sifter, cylinder rotary screen, revolving cylindrical sieve, cylinder revolving screen, roller screen, roller sieve etc.
Working Principle of Rotary Trommel Drum Screen Machine for Soil Sand Gravel Classifying:
The rotary screen mainly consists of reducer, drum device, frame, sealing cover, inlet and outlet.The roller device is inclined to be mounted on the rack. The motor is connected with the roller device through the coupling through the coupling, driving the drum device to rotate around its axis. When the materials enter the cylinder device, because of roller gear tilt and transhipment, flip and rolling material on the surface of the sun, make the qualified material (undersize) after roller end at the bottom of the discharging mouth eduction.As the material is flipped inside the drum, roll the material in the sieve hole to prevent the hole plugging.
Material Running State in the Rotary Screen
Features of Rotary Trommel Drum Screen Machine for Soil Sand Gravel Classifying:
1. Stable operation and low noise.
2. The mesh is not easily blocked.
3. The sieving can be closed and easy to collect dust.
4. Adopt the quality screen, the screen efficiency is high, the service life is long.
5. The machine has high reliability and a small one-time investment.
6. Simple structure and convenient maintenance.
Technical Parameters of Rotary Trommel Drum Screen Machine for Soil Sand Gravel Classifying:
1. driving device 2. coarse material discharge opening 3. seal cover
4. drum body 5. undersize material discharge opening 6. retaining plate
7. feed inlet 8. bracket
| Model |
Capacity
(t/h)
|
Screen Drum Diameter (mm) |
Length
(m)
|
Motor Power (KW) |
| GTS600 |
5-10 |
￠600 |
1000 |
1.5 |
| GTS800 |
8-15 |
￠800 |
1200 |
2.2 |
| GTS1000 |
15-30 |
￠1000 |
1500 |
3 |
| GTS1200 |
20-50 |
￠1200 |
1800 |
5.5 |
| GTS1500 |
40-80 |
￠1500 |
2000 |
7.5 |
| GTS1800 |
80-150 |
￠1800 |
2000 |
11 |
| GTS2000 |
130-200 |
￠2000 |
2500 |
11 |
Application of Rotary Trommel Drum Screen Machine for Soil Sand Gravel Classifying:
1. Sand stone plant: used for sand separation.
2. Classification of stone in stone plant, and separation of stone and stone powder.
3. In the chemical industry, the mineral processing industry is used for grading or separating powdery substances.
4. Coal industry: used for separating coal and coal and washing coal (parts of coal washing machinery).
