| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | ZWS |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic film for the machine, and fumigation-free plywood wooden case for the spare parts |
| Delivery Time: | 30~35 work days after order confirmed |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 sets per month |
| Features: | The Screen Box Does Not Vibrate, And Only The Screen Mesh Vibrates | Purpose: | Suitable For Screening Of Fine Particle Materials |
|---|---|---|---|
| Screen Angle: | Can Be Easily Adjusted To Meet The Nature Of Materials And Different Screening Operations | Screen Surface: | The Screen Is Composed Of Three Layers Of Woven Mesh, Or Single Layer Mesh Of Coarse Silk |
| Power Source: | Vibrating Motors | Amplitude: | 3mm~5mm |
| Characteristics: | With Small Dynamic Load, Low Power Consumption, High Screening Efficiency And Large Processing Capacity | Application: | Chemical And Compound Fertilizer Industry, Ore Dressing (iron Ore, Quartz Sand, Kaolin Etc.), Dewatering (coal Slime Dewatering, Tailings Dry Dewatering, Gold Ore Powder Carbon Recovery And Dehydration Etc.), Dry Material Sieve Etc. |
| High Light: | dewatering vibrating screen,material screening equipment |
||

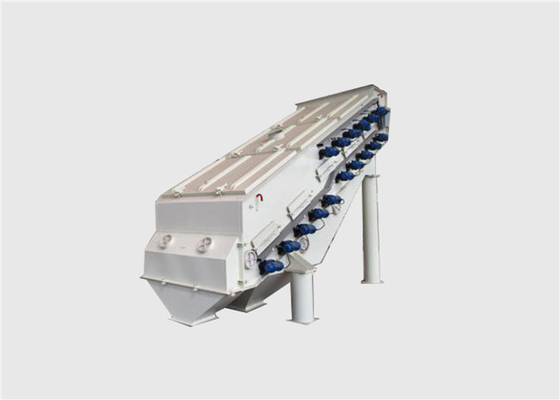

Overview of High Efficiency Wire Cloth Vibrating Screener for Compound Fertilizer Industry:
High Efficiency Wire Cloth Vibrating Screener for Compound Fertilizer Industry is a new type of screening equipment. The screen body does not vibrate, and only the screen mesh vibrates.
The vibrating wire cloth screen machine is the high frequency, low amplitude vibration of the wire cloth. The vibration is generated by vibrating motors which are mounted on isolated motor mounts. This is done at the center of the wire cloth where most of the material is located, not on the sides of the wire cloth. The vibration is not to convey the material, as this is accomplished by the inclined angle of the screen and the momentum of the particles. The vibration is to differentiate the particle sizes and improve the efficiency of the screening process in the short amount of time that the material is sliding along the screen surface. For the size particles that are used for most granular products, the small amplitude and high frequency is the most effective.
Features of High Efficiency Wire Cloth Vibrating Screener for Compound Fertilizer Industry:
1. No mesh blocking. With strong sieve surface self-cleaning ability.
2. The screen is composed of three layers of woven mesh. And the composite screen has a high opening rate. The screen can also use single layer mesh of coarse silk.
3. The screen installation angle can be easily adjusted to meet the nature of materials and different screening operations.
4. The sieve surface vibrates, while the screen box does not.
5. It is very suitable for screening of fine particle materials.
6. Enlarged inlet and oversize openings that reduce the chance of plugging.
7. With small dynamic load, low power consumption, high screening efficiency and large processing capacity.
Technical Parameters of High Efficiency Wire Cloth Vibrating Screener for Compound Fertilizer Industry:
| Model | Screen Surface | Feeding Particle Size (mm) |
Capacity (t/h) |
Vibration Frequency (min-1) | Double Amplitude (mm) | Power (kw) |
Dimensions (mm) |
Weight (kg) |
||||
| Layers | Area (m2) | Dip Angle (°) | Mesh Size (mm) |
Structure | ||||||||
| ZWS1230 | 1 | 3.6 | 37 | 10*40 | woven | ≤60 | 30~35 | 1450 | 3~5 | 0.85*2 | 3090*1700*3169 | 1623 |
| 2ZWS1230 | 2 | 3.6 | 33 | Upper: 4*50 Lower: 1.4*50 |
woven | ≤60 | 30~35 | 1450 | 3~5 | 0.85*2 | 3301*1680*3300 | 2300 |
| ZWS1245 | 1 | 5.4 | 37 | Upper: 4*50 Lower: 1.4*50 |
woven | ≤60 | 45~60 | 1450 | 3~5 | 0.85*3 | 4350*1660*5066 | 2631 |
| 2ZWS1245 | 2 | 5.4 | 37 | Upper: 4*50 Lower: 1.4*50 |
woven | ≤60 | 45~60 | 1450 | 3~5 | 0.85*3 | 4496*1660*5648 | 3612 |
| ZWS1260 | 1 | 7.2 | 20 | 4*25 | woven | ≤60 | 60~90 | 1450 | 3~5 | 0.85*4 | 6576*1660*4240 | 3290 |
| 2ZWS1260 | 2 | 7.2 | 37 | Upper: 4*50 Lower: 1.4*50 |
woven | ≤60 | 60~90 | 1450 | 3~5 | 0.85*4 | 5678*1660*6156 | 4532 |
Application of High Efficiency Wire Cloth Vibrating Screener for Compound Fertilizer Industry::
It is widely used in chemical and compound fertilizer industry, ore dressing (iron ore, quartz sand, kaolin etc.), dewatering (coal slime dewatering, tailings dry dewatering, gold ore powder carbon recovery and dehydration etc.), dry material sieve etc.
Motor Vibrating Mesh Screen
Electromagnetic Vibrating Mesh Screen
