Place of Origin: | China |
Brand Name: | AAREAL |
Certification: | ISO9001:2015 |
Model Number: | ZWS |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | Plastic film for the machine, and fumigation-free plywood wooden case for the spare parts |
Delivery Time: | 30~35 work days after order confirmed |
Payment Terms: | T/T, L/C |
Supply Ability: | 5 sets per month |
Features: | The Screen Box Does Not Vibrate, And Only The Screen Mesh Vibrates | Power Source: | Electromagnetic Exciter |
---|---|---|---|
Purpose: | Mainly Used For Screening, Grading, Dewatering And Desilting Of Fine Materials | Screen Surface: | The Screen Is Composed Of Three Layers Of Woven Mesh, Or Single Layer Mesh Of Coarse Silk |
Screen Angle: | 20°, 25°, 30°, 35° | Characteristics: | Minimal Dynamic Load, Safe To Use, Easy To Maintain, Small Footprint Etc. |
Application: | Ore Dressing, Compound Fertilizer Industry, Tailings Dry Dewatering Etc. | PLC Control: | Yes |
Highlight: | dewatering vibrating screen,material screening equipment |

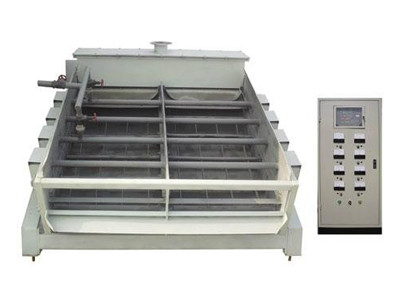

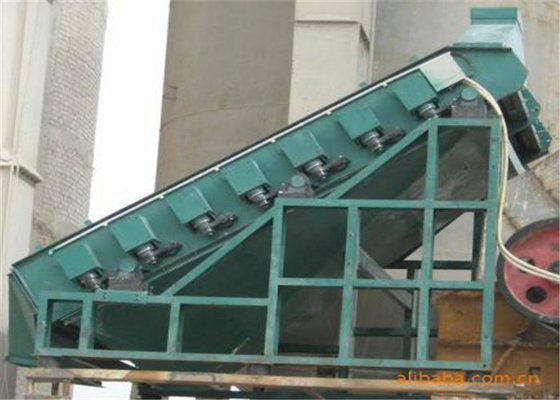

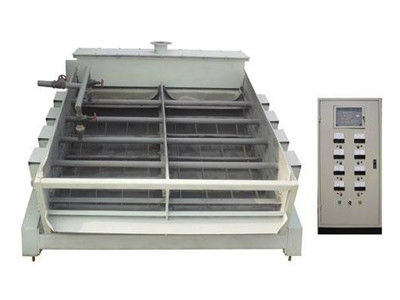

Electromagnetic Rectangular Vibrating Wire Cloth Screen Machines
Overview of High Frequency Electromagnetic Rectangular Vibrating Wire Cloth Screen Machines:
High Frequency Electromagnetic Rectangular Vibrating Wire Cloth Screen Machines are a new type of screening equipment. The screen body does not vibrate, and only the screen mesh vibrates. With small dynamic load, low power consumption, high screening efficiency and large processing capacity, it is widely used in chemical and compound fertilizer industry, ore dressing (iron ore, quartz sand, kaolin etc.), dewatering (coal slime dewatering, tailings dry dewatering, gold ore powder carbon recovery and dehydration etc.), dry material sieve etc.
Working Principle of High Frequency Electromagnetic Rectangular Vibrating Wire Cloth Screen Machines:
The sieve machine is driven by an electromagnetic exciter. The electromagnetic force makes the vibrating arm placed under the sieve surface torsion and swing through a force transmission bolt, a main vibration spring, a hinge spring, a vibration rod and a vibration shaft. A vibrating cap is provided on the upper end of the vibrating arm to support the screen to generate vibration. The vibration system works in a near-resonance state, and the power required for screening is achieved with less power. The vibration intensity of the screen surface is 8-10 times the gravity doubling speed, which is 2-3 times that of the general vibration screen. High screening efficiency and large processing capacity.
The multi-layer screen machine is divided into single channel and double channel. Each layer of screen in single channel consists of four groups of vibration system and one group of exciters. Each layer of dual-channel screener consists of eight sets of vibration systems and two sets of exciters, which are distributed on the left and right sides of the screen box. The rated power of each group of exciters is 900W, which will cause 50Hz high frequency vibration on the screen surface. The screen surface vibration parameters are controlled by the control cabinet. The vibration system has the function of instantaneous strong vibration to clean the screen and reduce the mesh blockage.
Features of High Frequency Electromagnetic Rectangular Vibrating Wire Cloth Screen Machines:
1. The sieve surface vibrates, while the screen box does not.
2. Minimal dynamic load.
3. Safe to use, easy to maintain, small footprint.
4. Saving energy and protecting environment.
5. No mesh blocking. With strong sieve surface self-cleaning ability, high screening efficiency and large processing capacity.
6. It is very suitable for screening of fine particle materials.
7. The screen is composed of three layers of woven mesh. And the composite screen has a high opening rate. The screen can also use single layer mesh of coarse silk.
8. The screen installation angle can be easily adjusted to meet the nature of materials and different screening operations.
Application of High Frequency Electromagnetic Rectangular Vibrating Wire Cloth Screen Machines:
The vibrating wire cloth screen machine is mainly used for dry and wet screening, classification, dewatering, desilting, coarse separation of fine-grained materials. It is widely used in the pulp screening in the processing of ferrous and nonferrous minerals, products dewatering in the coal washing process, and products grading in the chemical industry. And have a good effect.
Technical Parameters of High Frequency Electromagnetic Rectangular Vibrating Wire Cloth Screen Machines:
Model | Screen Area (㎡) | Working Frequency (Hz) |
Screen Slope ( °) |
Power (Kw) |
Weight (Kg) | Reference Size (including maintenance platform) L*W*H (mm) |
2ZWS1518-D-II | 2×2.7 | 50 | 20;25;30;35 | 1.8 | 4300 | 3603*3824*2856 |
3ZWS1518-D-II | 3×2.7 | 50 | 20;25;30;35 | 2.7 | 5500 | 4348*3824*3390 |
2ZWS2018-S-II | 2×3.6 | 50 | 20;25;30;35 | 3.6 | 5300 | 3649*4456*2830 |
3ZWS2018-S-II | 3×3.6 | 50 | 20;25;30;35 | 5.4 | 8000 | 4348*4456*3300 |
4ZWS2018-S-II | 4×3.6 | 50 | 20;25;30;35 | 7.2 | 10900 | 4829*4450*3900 |
2ZWS2020-S-II | 2×4.0 | 50 | 20;25;30;35 | 3.6 | 5500 | 3750*4456*2814 |
3ZWS2020-S-II | 3×4.0 | 50 | 20;25;30;35 | 5.4 | 8400 | 4575*4456*3305 |
4ZWS2020-S-II | 4×4.0 | 50 | 20;25;30;35 | 7.2 | 11500 | 5220*4456*3996 |
2ZWS2418-S-II | 2×4.32 | 50 | 20;25;30;35 | 3.6 | 5700 | 3649*4766*2856 |
3ZWS2418-S-II | 3×4.32 | 50 | 20;25;30;35 | 5.4 | 8600 | 4348*4766*3297 |
4ZWS2418-S-II | 4×4.32 | 50 | 20;25;30;35 | 7.2 | 11700 | 4829*4766*3832 |
2ZWS2420-S-II | 2×4.8 | 50 | 20;25;30;35 | 3.6 | 5900 | 3750*4766*2835 |
3ZWS2420-S-II | 3×4.8 | 50 | 20;25;30;35 | 5.4 | 9000 | 4575*4766*3300 |
4ZWS2420-S-II | 4×4.8 | 50 | 20;25;30;35 | 7.2 | 12300 | 5220*4766*3900 |
Motor Vibrating Mesh Screen
Electromagnetic Vibrating Mesh Screen
