|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||15~35 work days after order confirmed|
|Payment Terms:||T/T, L/C|
|Supply Ability:||10 sets per month|
|Alternative Name:||Rotary Screen, Turbo Sieve, Airflow Screen, Centrifugal Sifter Etc.||Purpose:||For Continuous Scalping Of Dry Or Moist Materials, Even Those That Tend To Ball Or Agglomerate As These Units De-lump And De-agglomerate While Screening|
|Application:||Starch, Xylitol, Ganoderma Powder, Malt Powder, Coffee Powder, Condiments, Food Additives Etc.||Layers Of Screen:||Single Layer Of Screen|
|Screen Dimensions:||Diameter*length 180*650mm, 300*1000mm, 500*1300mm Etc.||Anti-blinding Device:||Deblinding With Air, Rubber, Brush Etc.|
|Screen Material:||Nylon Mesh, Stainless Steel Woven Wire Mesh, Wedge Mesh Etc.||Machine Material:||Q235A Carbon Steel, Stainless Steel 304, 316L Etc.|
rotary sifter machine,
rotary trommel screen

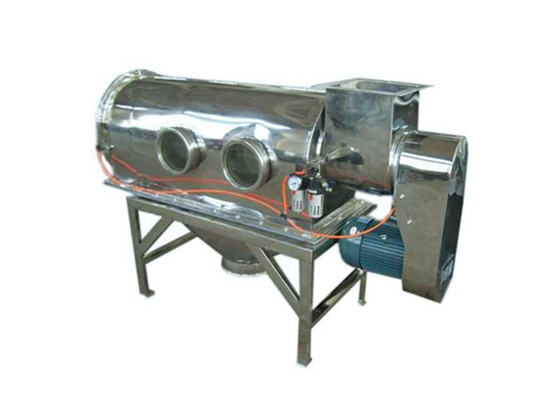

Introduction of Rotary Centrifugal Sifter Separator Screens for Wheat Germ Malt Flour:
The Rotary Centrifugal Sifter Separator Screens for Wheat Germ Malt Flour is a versatile, high capacity, compact and economical centrifugal sifter used for screening a wide variety of powders or granular materials, including chemicals, plastics and resins, foods, dairy products, pharmaceuticals and biologicals, at high rates. This equipment is the ideal choice for continuous scalping of dry or moist materials, even those that tend to ball or agglomerate as these units de-lump and de-agglomerate while screening. The Centrifugal Sifter is also extremely effective as a liquid/solids separator.
This equipment is also called centrifugal sifter, rotary screen, rotary sifter, turbo sieve, rotary screen, airflow screen, airflow centrifugal sifter, centrifugal screener, centrifugal powder sifter, centrifugal sieve, airflow sieve, horizontal airflow screen, cyclone sieve, air classifier etc.
Working Principle of Rotary Centrifugal Sifter Separator Screens for Wheat Germ Malt Flour:
The cylinder screen mesh of the centrifugal rotary sifter is placed inside the machine. The processing material enters the screen tube with airflow mixed and atomization after passing the screw conveyor system; the material is sprayed through the net and discharged from the fine stuff portal in the effect of centrifugal force and the cyclone propelling power, which are caused by the rotor vane inside the net tube. The material, which cannot cross the net, is discharged from the rough stuff stuff portal along the screen tube wall.
General Type Cantilever Type
Stainless Steel 304/316L Woven Wire Mesh Nylon Mesh
Technical Parameters of Rotary Centrifugal Sifter Separator Screens for Wheat Germ Malt Flour:
Important Information About Rotary Centrifugal Sifter Separator Screens for Wheat Germ Malt Flour You May Concern:
|Alternative Names||rotary screen, centrifugal sifter, airflow screen, turbo sieve etc.|
|Model||AL-50-130, AL-30-100, AL-18-65 (special model can be customized)|
|Screen Size||screen diameter*length 180mm*650mm, 300mm*1000mm, 500mm*1300mm|
|Machine Material||stainless steel 304, Q235A etc.|
|Mesh Material||stainless steel woven wire mesh, nylon mesh, wedge screen etc.|
|Mesh Deblinding System||De-blinding with air, rubber, brush etc.|
|Layers of Screen||single layer of screen|
|Purpose||for sieving materials of sticky, static and multi-fiber etc.|
|Application||all kinds of starch, xylitol, ganoderma powder, malt powder, coffee powder, condiments, food additives, traditional Chinese medicine powder, perlite, silica powder, activated carbon, polyethylene powder, fire extinguishing agent, pigment, pollen, vegetable powder, egg powder , Milk powder, soda powder, flavor etc.|
Features of Rotary Centrifugal Sifter Separator Screens for Wheat Germ Malt Flour:
1. The screen mesh can be cleaned automatically by cyclone.
2. The machine can operate either in a single unit or multiple units, and it is safe and reliable for a long time operation.
3. The whole machine is small and light so that it is stable in operation, free from vibration and noise, and with its good sealed structure, it is free from dust and performs in high efficiency.
4. The new type roller bearing can prolong the service life.
5. The machine has the function of re-crashing the agglomeration materials.
6. The machine can work with the pneumatic conveying systems, and materials can be directly sent into the wind path to save resources.
7. The shell of machine is in a new design which makes it easy to install and convenient to control.
8. New design: The airflow protection system can transfer the purified air to the two ends of the device, which will reduce the temperature created in the operation of the device.
9. Can be specially designed to meet special needs.
Overall Dimensions of Rotary Centrifugal Sifter Separator Screens for Wheat Germ Malt Flour:
Note: we can design and manufacture special type of sieving machine according to user's requirement.
Application of Rotary Centrifugal Sifter Separator Screens for Wheat Germ Malt Flour:
The centrifugal rotary sifter can be used in silicon carbide, silicon powder, activated carbon, various starches, glucose powder, xylitol, soy protein, peanut protein, vitamin C, sorbitol, ganoderma powder, malt powder, coffee powder, bread powder, seasonings, food additives, Chinese medicine powder, raw material powder, pharmaceutical intermediates , Glass beads, perlite, epoxy resin, polyethylene powder, fire extinguishing agent, zircon powder, pigments (phthalocyanine blue, phthalocyanine red, phthalocyanine yellow, Huang Dan, high-sand ceramics Pigments, etc.), magnetic materials, cobalt powder, pyrophyllite powder, barium sulfate, lithium manganate, zinc borate, fly ash, silicon powder, glaze, powder coating, pollen, dehydrated vegetable powder, egg powder, milk powder, soda powder, Flavors, magnesium oxide, magnesium hydroxide, calcium oxide, silicon nitride, aluminum oxide, molybdenum disulfide, cellulose, nano-sized titanium dioxide, PVC resin powder, silica gel powder, guar gum, calcium fluoride and other powders materials.
Contact Person: Ms. Magie
Layers of Screen: single layer of screen
Type: high-performance blow-through type air classifier
Anti-blocking: no blockage because of the air brush
Application: particles with static electricity, materials easy to agglomerate and with light specific gravity, viscous materials containing water or oil etc.
