| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | AL |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for export |
| Delivery Time: | 15~35 work days after order confirmed |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 sets per month |
| Other Names: | Airflow Screen, Rotary Screen, Turbo Sieve, Centrifugal Sifter Etc. | Purpose: | Used For Sieving Materials Of Sticky, Static And Multi-fiber Etc. |
|---|---|---|---|
| Anti-blinding Device: | Deblinding With Air, Rubber, Brush Etc. | Screen Dimensions: | Diameter*length 500*1300mm, 300*1000mm, 180*650mm Etc. |
| Layers Of Screen: | Only Single Layer Of Screen | Screen Material: | Nylon Mesh, Stainless Steel Woven Wire Mesh, Wedge Mesh Etc. |
| Machine Material: | Q235A Carbon Steel, Stainless Steel 304, 316L Etc. | Application: | Calcium Carbonate, Cosmetics, White Cement, Quartz Powder, Diatomite, Starch Etc. |
| High Light: | air classifier machine,rotary sifter machine |
||

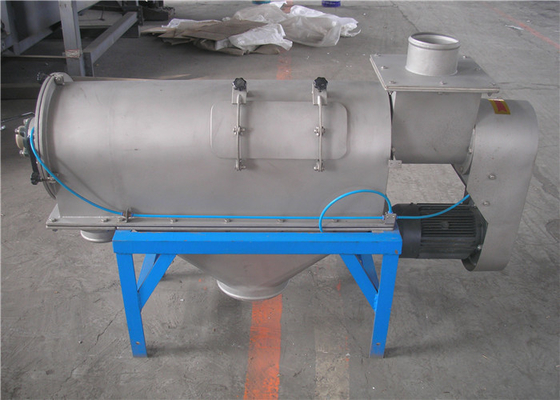

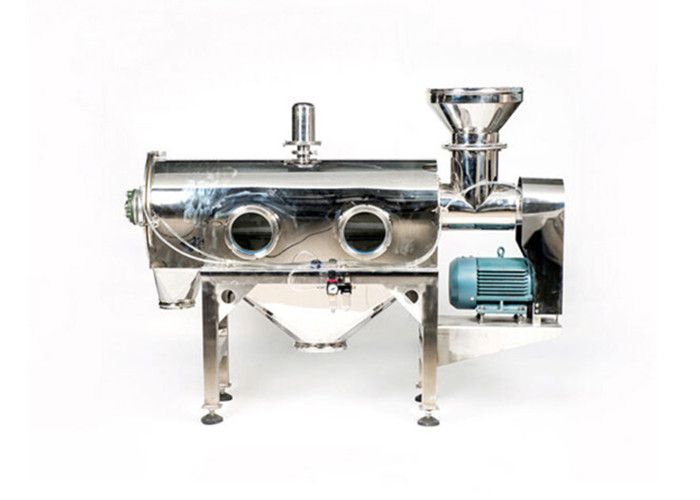

Introduction of Centrifugal Rotary Sifter Horizontal Airflow Screen for Cosmetic Powder:
The Centrifugal Rotary Sifter Horizontal Airflow Screen for Cosmetic Powder is a kind of screening machine making use of centrifugal force and cyclone for material separation. It is also known as the centrifugal sifter, rotary screen, rotary sifter, turbo sieve, rotary screen, airflow screen, airflow centrifugal sifter, centrifugal screener, centrifugal powder sifter, centrifugal sieve, airflow sieve, horizontal airflow screen, cyclone sieve, air classifier etc.
Centrifugal sifter can sift, scalp and de-agglomerate bulk solid materials at high throughput rates with virtually no noise, vibration or product degradation.
Working Principle of Centrifugal Rotary Sifter Horizontal Airflow Screen for Cosmetic Powder:
The cylinder screen mesh of the centrifugal rotary sifter is placed inside the machine. The processing material enters the screen tube with airflow mixed and atomization after passing the screw conveyor system; the material is sprayed through the net and discharged from the fine stuff portal in the effect of centrifugal force and the cyclone propelling power, which are caused by the rotor vane inside the net tube. The material, which cannot cross the net, is discharged from the rough stuff stuff portal along the screen tube wall.
General Type Cantilever Type
Stainless Steel 304/316L Woven Wire Mesh Nylon Mesh
Important Information About Centrifugal Rotary Sifter Horizontal Airflow Screen for Cosmetic Powder You May Concern:
| Other Names | centrifugal sifter, rotary sifter, airflow screen, turbo sieve etc. |
| Motion | rotary motion |
| Model | AL-50-130, AL-30-100, AL-18-65 (special model can be customized) |
| Screen Size | screen diameter*length 180mm*650mm, 300mm*1000mm, 500mm*1300mm |
| Machine Material | stainless steel 304, Q235A etc. |
| Mesh Material | stainless steel woven wire mesh, nylon mesh, wedge screen etc. |
| Mesh Deblinding System | De-blinding with air, rubber, brush etc. |
| Mesh Size | above 500 mesh (or >0.028mm) |
| Layers of Screen | single layer of screen |
| Purpose | for sieving materials of sticky, static and multi-fiber etc. |
| Application | diatomite, silica sand, quartz powder, calcium carbonate, diatomite, white cement, battery material, starch, chili powder, glucose powder, herbal powder etc. |
Features of Centrifugal Rotary Sifter Horizontal Airflow Screen for Cosmetic Powder:
1. The machine has the function of re-crashing the agglomeration materials.
2. The whole machine is small and light so that it is stable in operation, free from vibration and noise, and with its good sealed structure, it is free from dust and performs in high efficiency.
3. The new type roller bearing can prolong the service life.
4. The machine can operate either in a single unit or multiple units, and it is safe and reliable for a long time operation.
5. The screen-mesh can be cleaned automatically by cyclone.
6. The machine can work with the pneumatic conveying systems, and materials can be directly sent into the wind path to save resources.
7. The shell of machine is in a new design which makes it easy to install and convenient to control.
8. New design: The airflow protection system can transfer the purified air to the two ends of the device, which will reduce the temperature created in the operation of the device.
Technical Parameters of Centrifugal Rotary Sifter Horizontal Airflow Screen for Cosmetic Powder:
| Model | Material | Apply to |
| AL-18-65 | Q235A, SUS304 | >0.028mm |
| AL-30-100 | Q235A, SUS304 | >0.028mm |
| AL-50-130 | Q235A, SUS304 | >0.028mm |
Overall Dimensions of Centrifugal Rotary Sifter Horizontal Airflow Screen for Cosmetic Powder:
| Model | A | B | C | D | E | F | G | H | I | J |
| AL-18-65 | 1430 | 460 | 420 | 1005 | 135 | 230 | 250 | 330 | 340 | 210 |
| AL-30-100 | 1845 | 655 | 766 | 1240 | 320 | 285 | 300 | 350 | 380 | 290 |
| AL-50-130 | 2230 | 870 | 790 | 1775 | 280 | 515 | 150 | 660 | 400 | 485 |
Note: we can design and manufacture special type of sieving machine according to user's requirement.
Application of Centrifugal Rotary Sifter Horizontal Airflow Screen for Cosmetic Powder:
The rotary centrifugal sifter can sift numerous material particles such as sugar, flour, soil, graphite, rubber powder, and flower. The Airflow Centrifugal Sifter is widely used in the industries such as:
