Horizontal Centrifugal Sifter Airflow Rotary Screen for Silica Sand Powder
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AL
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 15~35 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Purpose: Used For Sieving Materials Of Sticky, Static And Multi-fiber Etc. Other Names: Rotary Screen, Turbo Sieve, Centrifugal Sifter, Airflow Screen Etc.
Machine Material: Q235A Carbon Steel, Stainless Steel 304, 316L Etc. Surface Treatment: Mirror Polishing, Sandblasting, Painting Etc.
Mesh De-blinding: Deblinding With Air, Rubber, Brush Etc. Layers Of Screen: Cage Type, One Layer Of Screen
Screen Material: Nylon Mesh, Stainless Steel Woven Wire Mesh, Wedge Mesh Etc. Mesh Size: Below 500 Mesh, Or ≥0.028mm
Screen Dimensions: Diameter*length 500*1300mm, 300*1000mm, 180*650mm Etc. Application: Quartz Powder, Diatomite, White Cement, Calcium Carbonate, Cosmetics, Starch Etc.
High Light:

air classifier machine

,

rotary trommel screen

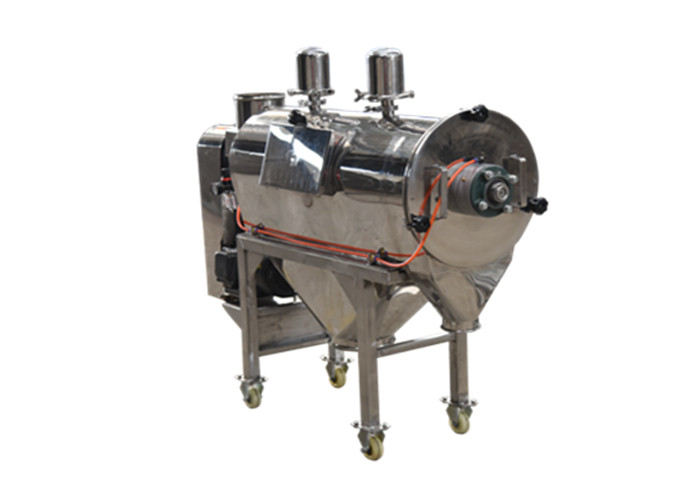

Introduction of Horizontal Centrifugal Sifter Airflow Rotary Screen for Silica Sand Powder​:

The Horizontal Centrifugal Sifter Airflow Rotary Screen for Silica Sand Powder is available in the industries such as metallurgy, mining, pharmacy, food, chemical engineering, metal powder and nonmetal powder etc.

  This sieve machine is also known as the rotary screen, rotary sifter, centrifugal sifter, turbo sieve, rotary screen, airflow screen, airflow centrifugal sifter, centrifugal screener, centrifugal powder sifter, centrifugal sieve, airflow sieve, horizontal airflow screen, cyclone sieve, air classifier etc.



Important Information About Horizontal Centrifugal Sifter Airflow Rotary Screen for Silica Sand Powder You May Concern:

Other Names centrifugal sifter, rotary sifter, airflow screen, turbo sieve etc.
Motion rotary motion
Model AL-18-65, AL-30-100, AL-50-130 (special model can be customized)
Screen Size screen diameter*length 180mm*650mm, 300mm*1000mm, 500mm*1300mm
Machine Material stainless steel 304, Q235A etc.
Mesh Material stainless steel woven wire mesh, nylon mesh, wedge screen etc.
Mesh Deblinding System De-blinding with air, rubber, brush etc.
Mesh Size above 500 mesh (>0.028mm)
Layers of Screen single layer of screen
Purpose for sieving materials of sticky, static and multi-fiber etc.
Application calcium carbonate, diatomite, silica sand, quartz powder, diatomite, white cement, battery material, starch, chili powder, glucose powder, herbal powder etc.



Working Principle of Horizontal Centrifugal Sifter Airflow Rotary Screen for Silica Sand Powder:

  The airflow centrifugal sifter has a screen mesh similar to the shape of a cylinder installed inside the machine. Once material passes through the screw conveying system, it will reach the cylinder-shaped mesh to prepare it for screening. It will then be shifted towards the center of the chamber once it’s mixed with airflow and shredded into tiny atom-like particles.

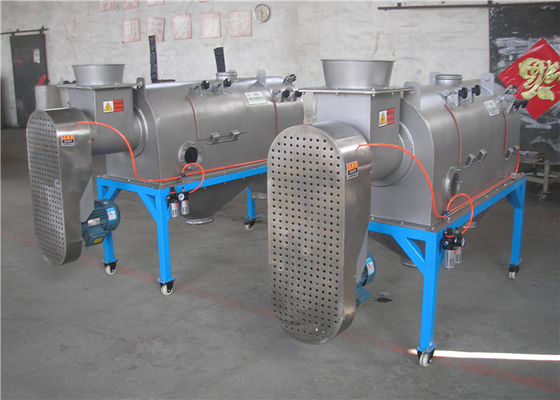

Horizontal Centrifugal Sifter Airflow Rotary Screen for Silica Sand Powder 0 Horizontal Centrifugal Sifter Airflow Rotary Screen for Silica Sand Powder 1

                          General Type                                                        Cantilever Type



Horizontal Centrifugal Sifter Airflow Rotary Screen for Silica Sand Powder 2 Horizontal Centrifugal Sifter Airflow Rotary Screen for Silica Sand Powder 3

           Stainless Steel Woven Wire Mesh                                        Nylon Mesh



Features of Horizontal Centrifugal Sifter Airflow Rotary Screen for Silica Sand Powder:

1. The machine has the function of re-crashing the agglomeration materials.

2. The machine can operate either in a single unit or multiple units, and it is safe and reliable for a long time operation.

3. The whole machine is small  and light so that it is stable in operation, free from vibration and noise, and with its good sealed structure, it is free from dust and performs in high efficiency.

4. The screen-mesh can be cleaned automatically by cyclone.

5. The new type roller bearing can prolong the service life.

6.  The shell of machine is in a new design which makes it easy to install and convenient to control.

7. The machine can work with the pneumatic conveying systems, and materials can be directly sent into the wind path to save resources.

8. New design: The airflow protection system can transfer the purified air to the two ends of the device, which will reduce the temperature created in the operation of the device.



Technical Parameters of Horizontal Centrifugal Sifter Airflow Rotary Screen for Silica Sand Powder:

Horizontal Centrifugal Sifter Airflow Rotary Screen for Silica Sand Powder 4

Model Material Apply to
AL-18-65 Q235A, SUS304 >0.028mm
AL-30-100 Q235A, SUS304 >0.028mm
AL-50-130 Q235A, SUS304 >0.028mm



Overall Dimensions of Horizontal Centrifugal Sifter Airflow Rotary Screen for Silica Sand Powder:

Horizontal Centrifugal Sifter Airflow Rotary Screen for Silica Sand Powder 5

Model A B C D E F G H I J
AL-18-65 1430 460 420 1005 135 230 250 330 340 210
AL-30-100 1845 655 766 1240 320 285 300 350 380 290
AL-50-130 2230 870 790 1775 280 515 150 660 400 485


Note: we can design and manufacture special type of sieving machine according to user's requirement.



Application of Horizontal Centrifugal Sifter Airflow Rotary Screen for Silica Sand Powder:

  The rotary centrifugal sifter can sift numerous material particles such as sugar, flour, soil, graphite, rubber powder, and flower. The Airflow Centrifugal Sifter is widely used by industries such as:

  • Pharmacy
  • Chemical
  • Metallurgy
  • Food
  • Mining
  • Metal powder and Nonmetal Materials
