|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||15~35 work days after order confirmed|
|Payment Terms:||T/T, L/C|
|Supply Ability:||10 sets per month|
|Alternative Names:||Turbo Sieve, Centrifugal Sifter, Rotary Sifter, Airflow Screen Etc.||Mesh Deblinding:||De-blinding With Air, Rubber, Brush Etc.|
|Mesh Material:||Nylon Mesh, Stainless Steel Woven Wire Mesh Etc.||Layers Of Screen:||Single Screen Layer|
|Screen Size:||Diameter*length 180*650mm, 300*1000mm, 500*1300mm Etc.||Mesh Size:||Below 500 Mesh, Or ≥0.028mm|
|Structural Composition:||Inlet, Screw Conveyor System, Spindle, Vane, Rotor Cane, Screen Mesh, Screen Frame, Oversize Outlet, Undersize Outlet, Dusting Mouth Etc.||Application:||Calcium Carbonate, Diatomite, White Cement, Battery Material, Starch, Glucose Powder Etc.|
air classifier machine,
rotary trommel screen

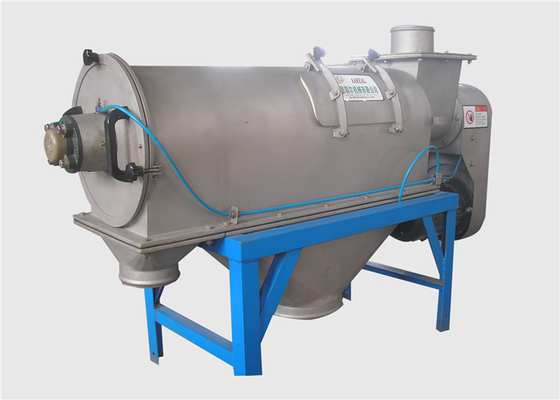

Turbo Rotary Sifter Screens Centrifugal Sifter Screen Machine For Quartz Powder
Introduction of Turbo Rotary Centrifugal Sifter Screen Machine for Quartz Powder:
The Turbo Rotary Centrifugal Sifter Screen Machine for Quartz Powder is is a non-vibratory screening machine. It is designed to meet high-capacity scalping and sifting for both large and small process applications. Our rotary screen proves its cost efficiency daily in the handling of a wide variety of powder, granules, agglomerates and other free-flowing materials.
The turbo sieve is also known as the centrifugal sifter, rotary screen, rotary sifter, airflow screen, airflow centrifugal sifter, centrifugal screener, centrifugal powder sifter, centrifugal sieve, airflow sieve, horizontal airflow screen, cyclone sieve, air classifier etc.
Working Principle of Turbo Rotary Centrifugal Sifter Screen Machine for Quartz Powder:
The cylinder screen mesh of the rotary centrifugal sifters is placed inside the machine. The processing material enters the net tube with airflow mixed and atomization after passing the screw conveyor system; the material is sprayed through the net and discharged from the fine stuff portal in the effect of centrifugal force and the cyclone propelling power, which are caused by the rotor vane inside the net tube. The material, which cannot cross the net, is discharged from the rough stuff stuff portal along the net tube wall.
Features of Turbo Rotary Centrifugal Sifter Screen Machine for Quartz Powder:
1. It is smaller in diameter and has lighter weight compared to its older counterparts.
2. Screen mesh is automatically cleaned by the cyclone coming produced by the wind blades.
3. Minimal to no vibration and noise due to its stability in manufacturing.
4. Doesn’t cause any dust pollution as it has an airtight steel chamber
5. Optimized by experienced engineers for it to maintain its stable state while in being used for the operation
6. Material particles can be crushed from their ball-like form during the screening process.
7. It is specifically designed to meet the sifting requirements of different industries.
8. Has a long service life because of its high quality internal and external parts.
9. Easy to install and use due to its updated design and specs. Has the capacity to run in single to multiple units in an extended period due to its production and material quality.
10. Easy to clean and maintain.
11. Can re-crash the agglomeration material.
12. Can be operated even with minimal supervision.
13. Can be used to save materials and other resources with the pneumatic conveying system where it makes them travel directly to the winding path.
Important Information You May Care About Turbo Rotary Centrifugal Sifter Screen Machine for Quartz Powder:
|Name||centrifugal sifter, rotary sifter, airflow screen, turbo sieve etc.|
|Model||AL-18-65, AL-30-100, AL-50-130 (special model can be customized)|
|Screen Size||screen diameter*length 180mm*650mm, 300mm*1000mm, 500mm*1300mm|
|Mesh Deblinding System||De-blinding with air, rubber, brush etc.|
|Machine Material||stainless steel 304, Q235A etc.|
|Mesh Material||stainless steel woven wire mesh, nylon mesh etc.|
|Layers of Screen||single layer of screen|
|Mesh Size||below 500 mesh|
|Purpose||for sieving materials of sticky, static and multi-fiber etc.|
|Application||calcium carbonate, diatomite, silica sand, quartz powder, diatomite, white cement, battery material, starch, chili powder, glucose powder, herbal powder etc.|
Overall Dimensions of Turbo Rotary Centrifugal Sifter Screen Machine for Quartz Powder:
Note: we can design and manufacture special type of sieving machine according to user's requirement.
General Type Cantilever Type
Stainless Steel Woven Wire Mesh Nylon Mesh
Technical Parameters of Turbo Rotary Centrifugal Sifter Screen Machine for Quartz Powder:
|AL-18-65||Q235A, SUS304||< 500 mesh|
|AL-30-100||Q235A, SUS304||< 500 mesh|
|AL-50-130||Q235A, SUS304||< 500 mesh|
Application of Turbo Rotary Centrifugal Sifter Screen Machine for Quartz Powder:
The rotary turbo sieve is widely used in coffee powder, bread powder, flour, Chinese medicine powder, battery material, starch, glucose powder, xylitol, soybean protein, peanut protein, vitamin C, sorbitol, ganoderma lucidum powder, malt powder, condiments, magnetic material, drill powder, pyrophyllite powder, barium sulfate, lithium manganese oxide, zinc borate, calcium oxide, silicon nitride, alumina, molybdenum disulfide, cellulose, nanograde titanium dioxide, PVC resin powder, barium sulfate, silica gel powder, guar bean gum, coal ash, silicon powder, glaze, powder coating, pollen, dehydrated vegetable, egg powder, milk powder, soda powder, essence, magnesium oxide, magnesium hydroxide, calcium fluoride, food additives, traditional Chinese medicine powder, APIs, pharmaceutical raw materials, active pharmaceutical ingredients, pharmaceutical intermediates, glass beads, perlite, silicon carbide, silicon powder, activated carbon, epoxy resin, polyethylene powder, fire extinguishing agent, zircon powder, pigment (phthalocyanin blue, phthalocyanin red, phthalocyanin yellow, yellow lead, high sand ceramic pigments etc.)
Contact Person: Ms. Magie
Layers of Screen: single layer of screen
Type: high-performance blow-through type air classifier
Anti-blocking: no blockage because of the air brush
Application: particles with static electricity, materials easy to agglomerate and with light specific gravity, viscous materials containing water or oil etc.
