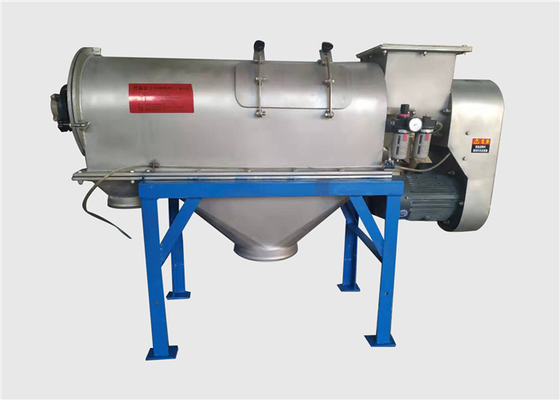

Home ProductsTurbo Centrifugal Sifter

Industrial Rotary Sifter Screenscentrifugal Sifter Screens For White Portland Cement

Industrial Rotary Sifter Screenscentrifugal Sifter Screens For White Portland Cement

  • Industrial Rotary Sifter Screenscentrifugal Sifter Screens For White Portland Cement
  • Industrial Rotary Sifter Screenscentrifugal Sifter Screens For White Portland Cement
Industrial Rotary Sifter Screenscentrifugal Sifter Screens For White Portland Cement
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AL
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 15~35 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Alternative Names: Centrifugal Sifter, Rotary Sifter, Airflow Screen Etc. Structural Composition: Inlet, Screw Conveyor System, Spindle, Vane, Rotor Cane, Screen Mesh, Screen Frame, Oversize Outlet, Undersize Outlet, Dusting Mouth Etc.
Machine Material: Q235A, Stainless Steel 304 Etc. Mesh Material: Nylon Mesh, Stainless Steel Woven Wire Mesh Etc.
Layers Of Screen: Single Screen Layer Screen Size: Diameter*length 180*650mm, 300*1000mm, 500*1300mm Etc.
Mesh Size: Below 500 Mesh Application: Calcium Carbonate, Diatomite, White Cement, Battery Material, Starch, Glucose Powder Etc.
High Light:

air classifier machine

,

rotary trommel screen



Industrial Rotary Sifter Screenscentrifugal Sifter Screens For White Portland Cement



Introduction of Industrial Rotary Centrifugal Sifter Screens for White Portland Cement​:

The Industrial Rotary Centrifugal Sifter Screens for White Portland Cement is also known as the centrifugal sifter, rotary screen, rotary sieve, airflow screen, centrifugal sieve, airflow sieve, horizontal airflow screen, turbo sieve, cyclone sieve, airflow centrifugal sifter, centrifugal screener, centrifugal powder sifter, air classifier etc.

  The rotary sifter is designed to meet high-capacity scalping and sifting for both large and small process applications. Our rotary screen proves its cost efficiency daily in the handling of a wide variety of powder, granules, agglomerates and other free-flowing materials.



Important Information You May Care About Industrial Rotary Centrifugal Sifter Screens for White Portland Cement​:

Name centrifugal sifter, rotary sifter, airflow screen etc.
Model AL-18-65, AL-30-100, AL-50-130 (special model can be customized)
Screen Size screen diameter*length 180mm*650mm, 300mm*1000mm, 500mm*1300mm
Motion rotary motion
Machine Material stainless steel 304, Q235A etc.
Mesh Material stainless steel woven wire mesh, nylon mesh etc.
Layers of Screen single layer of screen
Mesh Size below 500 mesh
Purpose for sieving materials of sticky, static and multi-fiber etc.
Application calcium carbonate, diatomite, silica sand, quartz powder, diatomite, white cement, battery material, starch, glucose powder, herbal powder etc.



Working Principle of Industrial Rotary Centrifugal Sifter Screens for White Portland Cement​:

  The centrifugal rotary sifter is a cylindrical screen, placing in the body, material through the screw conveyor system, then mixing and atomization with the air going into the mesh tube; material was forced to spray over the screen mesh due to centrifugal force and cyclone propulsion coming out from the blade of wind turbine in the screen mesh tube synchronous, and discharge by fine material outlet; the material that can’t be over the screen mesh is discharged by coarse material outlet along the wall of the tube.



Overall Dimensions of Industrial Rotary Centrifugal Sifter Screens for White Portland Cement​:

Industrial Rotary Sifter Screenscentrifugal Sifter Screens For White Portland Cement 0

Model A B C D E F G H I J
AL-18-65 1430 460 420 1005 135 230 250 330 340 210
AL-30-100 1845 655 766 1240 320 285 300 350 380 290
AL-50-130 2230 870 790 1775 280 515 150 660 400 485

Note: we can design and manufacture special type of sieving machine according to user's requirement.



Features of Industrial Rotary Centrifugal Sifter Screens for White Portland Cement​:

1. Long Service Life of Mesh:
The quality is the first factor that affects the mesh life, but for centrifugal sifter, the equipment structure, the concentricity of the equipment and the processing technology of the screen cage directly affect the mesh life.
2. Precision Machined Parts:
The key components of the equipment need to go through multiple precision machining processes, one is to extend the life of the mesh, the second is to improve output.
3. Ultra-light Material Design:
Centrifugal sieve design principles, more suitable for screening of ultra-light, multi-fiber material.
4. Easy To Clean:
Centrifugal sieve clean conveniently, suitable for many varieties of small batch screening, to avoid cross-contamination caused by mixing.
5. Series In The Air System:
Centrifugal sieve can withstand the pressure of 0.1MPA, suitable for flour etc, positive pressure system, the screening output is large.



Technical Parameters of Industrial Rotary Centrifugal Sifter Screens for White Portland Cement​:

Industrial Rotary Sifter Screenscentrifugal Sifter Screens For White Portland Cement 1

Model Material Apply to
AL-18-65 Q235A, SUS304 < 500 mesh
AL-30-100 Q235A, SUS304 < 500 mesh
AL-50-130 Q235A, SUS304 < 500 mesh



Industrial Rotary Sifter Screenscentrifugal Sifter Screens For White Portland Cement 2 Industrial Rotary Sifter Screenscentrifugal Sifter Screens For White Portland Cement 3

                         General Type                                                          Cantilever Type



Industrial Rotary Sifter Screenscentrifugal Sifter Screens For White Portland Cement 4 Industrial Rotary Sifter Screenscentrifugal Sifter Screens For White Portland Cement 5

        Stainless Steel Woven Wire Mesh                                        Nylon Mesh



Application of Industrial Rotary Centrifugal Sifter Screens for White Portland Cement​:

  The horizontal airflow rotary sifter can be widely used in Chinese medicine powder, battery material, starch, glucose powder, xylitol, soybean protein, peanut protein, vitamin C, sorbitol, ganoderma lucidum powder, malt powder, coffee powder, bread powder, flour, condiments, magnetic material, drill powder, pyrophyllite powder, barium sulfate, lithium manganese oxide, zinc borate, coal ash, silicon powder, glaze, powder coating, pollen, dehydrated vegetable, egg powder, milk powder, soda powder, essence, magnesium oxide, magnesium hydroxide, calcium oxide, silicon nitride, alumina, molybdenum disulfide, cellulose, nanograde titanium dioxide, PVC resin powder, barium sulfate, silica gel powder, guar bean gum, calcium fluoride, food additives, traditional Chinese medicine powder, APIs, pharmaceutical raw materials, active pharmaceutical ingredients, pharmaceutical intermediates, glass beads, perlite, silicon carbide, silicon powder, activated carbon, epoxy resin, polyethylene powder, fire extinguishing agent, zircon powder, pigment (phthalocyanin blue, phthalocyanin red, phthalocyanin yellow, yellow lead, high sand ceramic pigments etc.)
