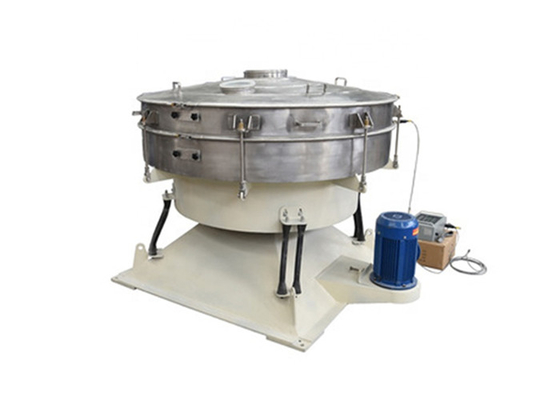

Ceramic Glazes Vibro Sieve Separator Machine Tumbler Sifter Easy To Install

Ceramic Glazes Vibro Sieve Separator Machine Tumbler Sifter Easy To Install

  • Ceramic Glazes Vibro Sieve Separator Machine Tumbler Sifter Easy To Install
  • Ceramic Glazes Vibro Sieve Separator Machine Tumbler Sifter Easy To Install
Ceramic Glazes Vibro Sieve Separator Machine Tumbler Sifter Easy To Install
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AM
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~35 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Motion: Imitate The Manual Screening Action, Involute Spiral Motion Diameter: 600mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm Etc.
Screen Deck: 1~5 Screen Decks Mesh Size: Above 400 Mesh
Screening Accuracy: Up To 90% ~ 99% Mesh Cleaning Method: Balls, Ultrasonic System, Rolling Brush, Air Brush Etc.
Optional: Pneumatic Lifting Devices, Quick Clamps Etc. Application: Ceramic Glazes, Glass Beads, Xylitol, Citric Acid, Plastic Powder, Food Additives, Calcium Carbonate Etc.
High Light:

Ceramic Glazes Sieve Separator Machine

,

xylitol Sieve Separator Machine

,

Ceramic Glazes Tumbler Sifter

Ceramic Glazes Vibro Sieve Separator Machine Tumbler Sifter Easy To Install



Overview of Tumbler Sieve Machines for Ceramic Glazes:

Tumbler sieve machines for ceramic glazes is a high powered sieving machine used by manufacturers from different industries to produce large outputs of light powder particles with high capacity by continuous low-density sieving. It is also called tumbler screen, tumbler screener, tumbler screening machine, tumbler sieve. swinging sieve, swing sieve, shaking sieve etc.

  Unlike a typical vibratory or gyratory screening machine, the tumbler screening machine incorporates a unique three-dimensional tumbling motion providing the gentlest screening possible. This motion prevents delicate, friable material from being broken resulting in less undesirable fine generation and dust levels. Even the most difficult materials, which tend to blind screens, are screened efficiently by utilizing the proper anti-blinding systems including motor driven brushes and/or air knives that are unique to tumbler type screening machines.

  The tumbler screening machines are used for bulk material grading, safety screening, and dedusting in all industrial sectors. They are particularly well-suited to the fine and extremely fine screening of dry bulk materials and precise grading with up to 6 particle sizes.

  Manual sieving is the process of using your hands and a mesh strainer to separate unwanted elements from the fine powder particles. What the Tumbler Fine Sieve does is the mechanical equivalent of that. Artificial sieving is done by effective processing and simulation of fine and ultra-fine powders and other materials that are difficult to characterize and shift. Efficient and precise separation of particles is the best principle for producing large quantities of sieved materials in a short period.



Mesh Cleaning Method for Tumbler Sieve Machines for Ceramic Glazes:

  During the screening process of tumbler screen machine, due to a variety of materials itself has a strong adsorption, easy to hold together, high static, high precision, high density, light weight and other characteristics, easy to clog the mesh, thus greatly reducing the efficiency of the screening effect. In order to ensure screening effect, therefore, necessary to increase the net cleaning device on the device. Gaofu company draw on advanced foreign technology and years of experience combined with tumbler screen machine circular mounting structure and multi-layer solutions, designed several screen cleaning system, it is suitable for requirements of different materials means.



Working Principle of Tumbler Sieve Machines for Ceramic Glazes:

The tumbler sieve machine is the combination of the radial displacement and the circular motion with the displacement along the axis (spiral motion).

1. Basic rotary motion is similar to manual screening. Eccentricity is adjustable from 25 to 40mm, and low-speed V-type belt drive is adjustable from 120 to 360rpm.
2. The residence time of each product can be adjusted in the direction of the driving axis by the radial and tangential angles of the swing screen.
3. Hence, it establishes horizontal and projectile 3D tumbling motion.Materials are evenly dispersed from the center to the outer edge on the entire screen surface. So, fine particles are completely finished the whole screening process.
4. This process is repeated between each screen layer.

Ceramic Glazes Vibro Sieve Separator Machine Tumbler Sifter Easy To Install 0

Ceramic Glazes Vibro Sieve Separator Machine Tumbler Sifter Easy To Install 1Ceramic Glazes Vibro Sieve Separator Machine Tumbler Sifter Easy To Install 2



Function of Tumbler Sieve Machines for Ceramic Glazes:

1. Grading:
Each model of tumbler sieve can precisely and continuously screen and separate processing material, the multi—layer type tumble screen can screen and separate five groups of different particles at same time. It is suitable for dry materials.
2. Remove the impurity:
The tumbler sieve can quickly separate a few oversize or undersized particles from a quantity of materials.

Ceramic Glazes Vibro Sieve Separator Machine Tumbler Sifter Easy To Install 3



Important Information About Tumbler Sieve Machines for Ceramic Glazes You Won't Miss:

Motion  involute spiral motion
Screening Accuracy  upto 90%~99.9%
Mesh Cleaning Method  bouncing ball cleaning, ultrasonic cleaning, brush cleaning, air   cleaning, ultrasonic air cleaning, air brush cleaning
Screen Structure  whole adhesive screen, or splicing segmented screen etc.
Layers of Screen  1~5 layers of screen
Diameter  600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm,   2000mm, 2100mm, 2300mm, 2600mm, 2900mm etc.
Advantages  soft rock screening will not destroy the particles original structure of the   material and not easy to produce static electricity
Optional  quick clamps, pneumatic lifting devices etc.
Application  can be used for material that is flammable, explosive and easy to   generate static



Features of Tumbler Sieve Machines for Ceramic Glazes:

1. Tumbler screen machine is suitable for spherical, cylindrical or flake rules easily damaged, deformed material.
2. Tumbler screen machine can freedom control residence time of materials stay on the mesh, double accuracy, double output.
3. Ultrasonic cleaning system, brush cleaning system, bouncing ball cleaning system a variety of ways, guarantee the mesh screen hole is not blocked, not out of shape.
4. Tumbler screen machine rubber spring swing transfer intensity, soft noiseless.



Technical Parameters of Tumbler Sieve Machines for Ceramic Glazes:

Ceramic Glazes Vibro Sieve Separator Machine Tumbler Sifter Easy To Install 4

Model Screen Area (m²) Layers of Screen Motor Power (KW)
AM-600 0.28 1~5 0.25
AM-1000 0.72 1~5 1.5
AM-1200 1.10 1~5 1.5
AM-1500 1.80 1~5 2.2
AM-1800 2.30 1~5 4.0
AM-2000 2.60 1~5 4.0
AM-2300 3.90 1~5 4.0
AM-2600 5.30 1~5 5.5
AM-2900 6.40 1~5 5.5



Application of Tumbler Sieve Machines for Ceramic Glazes​:

1. Chemical industry: resin, pigment, industrial medicine, cosmetic, coatings etc.
2. Food industry: sugar powder, starch, salt, rice noodles, milk powder, soybean milk, egg powder, sauce, syrup etc.
3. Environment: disposed oil, disposed water, disposed dye waste water, assistant detergent, active carbon etc.
4. Coatings: Powder coatings, pigment paints etc.
5. Metals: Metal powders, zinc powder, copper powder, coal powder, alloys etc.



Ceramic Glazes Vibro Sieve Separator Machine Tumbler Sifter Easy To Install 5Ceramic Glazes Vibro Sieve Separator Machine Tumbler Sifter Easy To Install 6

           BALANCE IS IMPORTANT !!                                  Pneumatic Lifting Device
