| Movement: | Involute Spiral Tumbling Motion, Imitate The Manual Screening Action | Mesh Cleaning Method: | Balls, Ultrasonic System, Air Brush, Rolling Brush Etc. |
|---|---|---|---|
| Screen Structure: | Whole Adhesive Screen, Or Splicing Segmented Screen Etc. | Screening Accuracy: | High Up To 90% ~ 99.9% |
| Diameter: | 600mm~2600mm (special Size Can Be Customized) | Layers Of Screen: | 1~5 Layers Of Screen |
| Motor Brand: | Siemens, ABB, BEGEMA Etc. | Mesh Size: | Above 400 Mesh |
| Optional: | Pneumatic Lifting Devices, Quick Clamps Etc. | Application: | Food Additives, Starch, Calcium Carbonate, Melamine Resin, Amino Resin, Molding Powder, Flour, Plastic Powder, Glass Beads, Xylitol, Citric Acid Etc. |
| High Light: | vibrating sieve screen,vibratory screen separator |
||

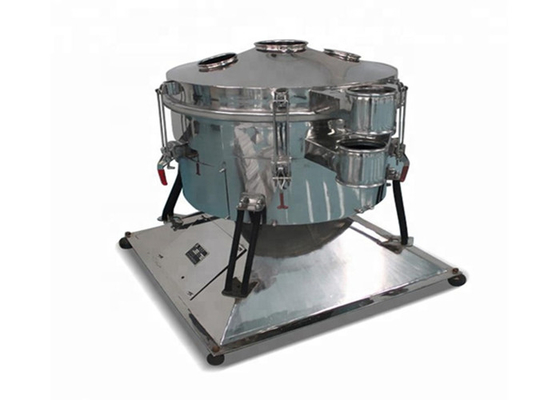

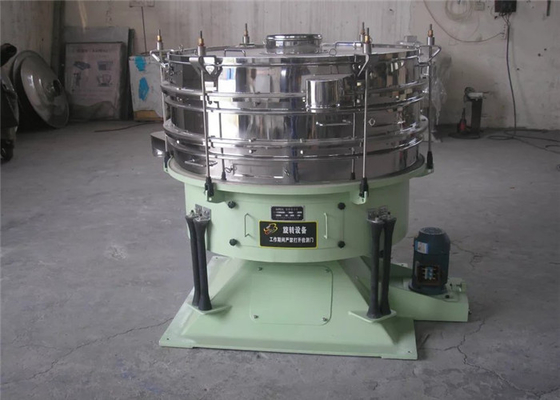

Potato Starch Vibrating Screen Machine Tumbler Sifter
Overview of Tumbler Screening Machine for Chinese Potato Starch:
Stainless steel tumbler screening machine for Chinese potato starch is also called tumbler screen, tumbler screener, tumbling screen machine, tumbler sieve, swing sieve, swinging screen, swinging sieve, rocking sieve, shaking sieve machine etc.
The tumbler sieve machine is an efficient sieving equipment which is designed to meet the large out put, high-density sieving of the manufacturers. It is the most effective simulation of artificial sieving movement (sieving precision, efficiency, service life is 5-10 times than the common cylinder sieve), for the processing of all the fine and ultra-fine powder and specialmaterials, particularly suitable for materials which are difficult to classify.
Unlike the typical vibratory or gyratory screening machine, the tumbler screening machine incorporates a unique three-dimensional tumbling motion providing the gentlest screening possible. This motion prevents delicate, friable material from being broken resulting in less undesirable fine generation and dust levels. Even the most difficult materials, which tend to blind screens, are screened efficiently by utilizing the proper anti-blinding systems including motor driven brushes and/or air knives that are unique to tumbler type screening machines.
Features of Tumbler Screening Machine for Chinese Potato Starch:
Application of Tumbler Screening Machine for Chinese Potato Starch:
The tumbler sieve machine is particularly used to classify small materiels and fine powder according to its unique structure and working principle. It is not only applied to dry sieving, but also wet sieving. Widely used in various industries.
1. Chemical industry: resin, pigment, cosmetic, coatings, Chinese medicine powder etc.
2. Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce etc.
3. Metallurgy and Mine industry: aluminum powered, copper powder, ore alloy powder, welding rod powder etc.
4. Medicinal industry: all kinds of medicine.
5. Waste treatment: disposed oil, disposed water, disposed dye waste water, active carbon etc.
Working Principle of Tumbler Screening Machine for Chinese Potato Starch:
The tumbler screener utilizes the humanoid screening principle. To imitate the movement of artificial screening action and do three-dimensional circular motion, skillfully combine the sieving (planar circular motion) and winnowing (upward parabolic motion), establish horizontal and throwing three-dimensional tumbling movement, make the material in the screen surface appear involute spiral movement. The material takes a relatively long distance across the relative area, and the landing screen time of the material is more than 85%, improving the screen through rate. The screening accuracy is as high as 90%~99%, increasing the yield.
According to the physical properties of the material and the different screening requirements of customers, we can adjust the independent and adjustable rotate speed, eccentricity, radial force, tangential force, so as to change the material stay time on the screen surface and the moving route to achieve the best screening effect.
Important Information About Tumbler Screening Machine for Chinese Potato Starch You Won't Miss:
| Motion | involute spiral tumbling motion, imitate the manual screening action |
| Screening Accuracy | upto 90%~99.9% |
| Mesh Cleaning Method | bouncing ball cleaning, ultrasonic cleaning, brush cleaning, air cleaning, ultrasonic air cleaning, air brush cleaning |
| Screen Structure | whole adhesive screen, or splicing segmented screen etc. |
| Layers of Screen | 1~5 layers of screen |
| Diameter | 600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm, 2000mm, 2100mm, 2300mm, 2600mm, 2900mm etc. |
| Advantages | soft rock screening will not destroy the particles original structure of the material and not easy to produce static electricity |
| Optional | quick clamps, pneumatic lifting devices etc. |
| Application | can be used for material that is flammable, explosive and easy to generate static |
| Motor Brand | Siemens, ABB, BEGEMA etc. |
Technical Parameters of Tumbler Screening Machine for Chinese Potato Starch:
| Model | Screen Area (m²) | Layers of Screen | Motor Power (KW) |
| AM-600 | 0.28 | 1~5 | 0.25 |
| AM-1000 | 0.72 | 1~5 | 1.5 |
| AM-1200 | 1.10 | 1~5 | 1.5 |
| AM-1500 | 1.80 | 1~5 | 2.2 |
| AM-1800 | 2.30 | 1~5 | 4.0 |
| AM-2000 | 2.60 | 1~5 | 4.0 |
| AM-2300 | 3.90 | 1~5 | 4.0 |
| AM-2600 | 5.30 | 1~5 | 5.5 |
| AM-2900 | 6.40 | 1~5 | 5.5 |
BALANCE IS IMPORTANT !! Pneumatic Lifting Device
