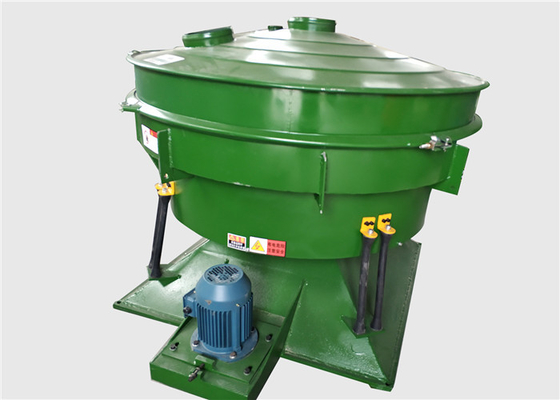

Graphite Grains Tumbler Screening Machinee Large Output Carbon Steel Material

Graphite Grains Tumbler Screening Machinee Large Output Carbon Steel Material

  • Graphite Grains Tumbler Screening Machinee Large Output Carbon Steel Material
  • Graphite Grains Tumbler Screening Machinee Large Output Carbon Steel Material
Graphite Grains Tumbler Screening Machinee Large Output Carbon Steel Material
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AM
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~35 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Decks Of Screen: 1~5 Decks Screening Precision: High Up To 90% ~ 99.9%
Movement: Involute Spiral Tumbling Motion Mesh Cleaning Method: Ultrasonic System, Balls, Rolling Brush, Air Brush Etc.
Motor Brand: ABB, Siemens Etc. Screen Structure: Whole Adhesive Screen, Or Splicing Segmented Screen Etc.
Optional Parts: Pneumatic Lifting Devices, Quick Clamps Etc. Application: Calcium Carbonate, Melamine Resin, Amino Resin, Molding Powder, Flour, Plastic Powder, Glass Beads, Xylitol, Citric Acid, Food Additives Etc.
High Light:

Graphite Grains Tumbler Screening Machinee

,

Graphite Grains tumbler screener

,

99.9% Tumbler Screening Machinee

Graphite Grains Tumbler Screening Machinee Large Output Carbon Steel Material



Overview of Tumbler Sieve Screening Machine for Amorphous Graphite Grains​​:

Tumbler sieve screening machine for amorphous graphite grains is efficient and specifically designed to meet the large output, low-density sieving and processing of fine powder and special materials. The tumbler sieve is also called tumbler screening machine, tumbler screen, tumbler screener, swinging screen, swinging sieve, rocking sieve, shaking sieve machine etc.

  Unlike the typical vibratory or gyratory screening machine, the tumbler screening machine incorporates a unique three-dimensional tumbling motion providing the gentlest screening possible. This motion prevents delicate, friable material from being broken resulting in less undesirable fine generation and dust levels. Even the most difficult materials, which tend to blind screens, are screened efficiently by utilizing the proper anti-blinding systems including motor driven brushes and/or air knives that are unique to tumbler type screening machines.

  Tumbler screen machines are used for bulk material grading, safety screening, and dedusting in all industrial sectors. They are particularly well-suited to the fine and extremely fine screening of dry bulk materials and precise grading with up to 6 particle sizes. Our AM model tumbler screen machine features a range of customization options designed to meet extremely demanding requirements, as well as a broad variety of additional equipment options. Among these, the number of available screen cleaning systems is particularly worth mentioning, with balls, brushes, ultrasonic, and various combinations being of these options are available to prevent blinding and maintain efficient screening.



Features of Tumbler Sieve Screening Machine for Amorphous Graphite Grains​​​​:

1. 1~5 decks per unit machine.
2. High screening efficiency.
3. Optional manual deck lifting device for easy screen replacement.
4. Individually adjustable retention time for any product and capacity.
5. Low acceleration, long service life of all parts, no product degradation.
6. Tough modular design, no dead corners, low part weights.
7. 100% statically and dynamically balanced for vibration free installation in steel structures.
8. Low noise, less than 75 dB.
9. Screen mesh size is down to 20μm.
10. Size range 600~2600 mm diameter.


Our Advantages:

1. 30 years of production experience, reliable quality and service.
2. Entire modern production line, all sieving machines can be customized.
3. Design and create professional integrated sieving solutions for clients.
4. ISO certificated.
5. Reasonable cost and fast delivery.
6. Provide video inspection of goods, video installation guidance.
7. Online technical support.
8. 12 months quality guarantee and lifetime technical assistance.



Working Principle of Tumbler Sieve Screening Machine for Amorphous Graphite Grains​​​​​:

  The tumbler screener utilizes the humanoid screening principle. To imitate the movement of artificial screening action and do three-dimensional circular motion, skillfully combine the sieving (planar circular motion) and winnowing (upward parabolic motion), establish horizontal and throwing three-dimensional tumbling movement, make the material in the screen surface appear involute spiral movement. The material takes a relatively long distance across the relative area, and the landing screen time of the material is more than 85%, improving the screen through rate. The screening accuracy is as high as 90%~99%, increasing the yield.

1. Basic rotary motion is similar to hand screening. The eccentricity is adjustable from 25 to 40mm, low-speed V-belt drive is adjustable from 120 to 360rpm.
2. Each product’s dwell time can be adjusted in a radial and tangential angle, towards the drive axis.
3. Therefore, establishing the horizontal and throwing three-dimensional rolling movement, materials are evenly dispersed on the entire sieve surface from the center to the outer edge, and thus spread towards the axis by spiral movement. Small particles are then finished in the whole sieving process.
4. The horizontal and vertical acceleration are increased with the movement of the particles, and then the particles which are close to mesh size will be successfully separated; the larger particles are transported to the exit, the flow can be controlled by a regulated oriented device at the exit, the oriented device is another factor which controls the dwell time of the materials.
5. The process is repeated in each layer.

Graphite Grains Tumbler Screening Machinee Large Output Carbon Steel Material 0Graphite Grains Tumbler Screening Machinee Large Output Carbon Steel Material 1

Important Information About Tumbler Sieve Screening Machine for Amorphous Graphite Grains​​ You May Care:

Motion  involute spiral motion
Screening Accuracy  upto 90%~99.9%
Mesh Cleaning Method  bouncing ball cleaning, ultrasonic cleaning, brush cleaning, air   cleaning, ultrasonic air cleaning, air brush cleaning
Screen Structure  whole adhesive screen, or splicing segmented screen etc.
Layers of Screen  1~5 layers of screen
Diameter  600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm,   2000mm, 2100mm, 2300mm, 2600mm, 2900mm etc.
Advantages  soft rock screening will not destroy the particles original structure of the   material and not easy to produce static electricity
Optional  quick clamps, pneumatic lifting devices etc.
Application  can be used for material that is flammable, explosive and easy to   generate static
Motor Brand  Siemens, ABB, BEGEMA etc.



Application of Tumbler Sieve Screening Machine for Amorphous Graphite Grains​​​​​:

  Tumbler screen machine is widely used in spices, tea, sugar, salt, renewable resources, plastics, rubber, EPS, PVI, PVC, resin and other industries for fine material screening.

1. Chemical industry: resin, pigment, industrial medicine, cosmetic, coatings, Chinese medicine power etc.
2. Food industry: sugar powder, starch, salt, rice noodles, milk powder, soybean milk, egg powder, sauce, syrup etc.
3. Metal, metallurgy mining industry: aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, dioxide manganese, electrolyse copper powder, lithium battery materials, rubbing powder, fire-proof material, kaolin, lime, alumina, heavy calcium carbonate, quartz. Social pollution disposed; disposed oil, disposed water, disposed dye waste water, assistant detergent, active carbon etc.



Technical Parameters of Tumbler Sieve Screening Machine for Amorphous Graphite Grains​​:

Graphite Grains Tumbler Screening Machinee Large Output Carbon Steel Material 2

Model Screen Area (m²) Layers of Screen Motor Power (KW)
AM-600 0.28 1~5 0.25
AM-1000 0.72 1~5 1.5
AM-1200 1.10 1~5 1.5
AM-1500 1.80 1~5 2.2
AM-1800 2.30 1~5 4.0
AM-2000 2.60 1~5 4.0
AM-2300 3.90 1~5 4.0
AM-2600 5.30 1~5 5.5
AM-2900 6.40 1~5 5.5





Graphite Grains Tumbler Screening Machinee Large Output Carbon Steel Material 3Graphite Grains Tumbler Screening Machinee Large Output Carbon Steel Material 4

           BALANCE IS IMPORTANT !!                                  Pneumatic Lifting Device
