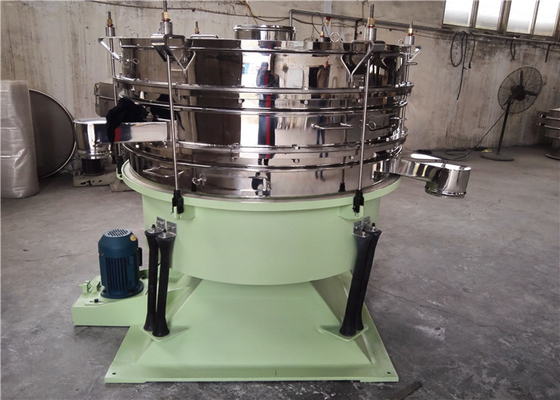

Precision Tumbler Screening Machine Stainless Steel Material

Precision Tumbler Screening Machine Stainless Steel Material
Precision Tumbler Screening Machine Stainless Steel Material Precision Tumbler Screening Machine Stainless Steel Material

Large Image :  Precision Tumbler Screening Machine Stainless Steel Material

Product Details:

Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AM

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~35 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 5 sets per month
Detailed Product Description
Screening Accuracy: High Up To 90% ~ 99.9% Movement: Imitate The Manual Screening Action, Involute Spiral Tumbling Motion
Motor Brand: Siemens, ABB, BEGEMA Etc. Screen Structure: Whole Adhesive Screen, Or Splicing Segmented Screen Etc.
Mesh Cleaning Method: Ultrasonic System, Balls, Rolling Brush, Air Brush Etc. Diameter: 600mm~2600mm (special Size Can Be Customized)
Layers Of Screen: 1~5 Layers Of Screen Mesh Size: >0.038mm
Optional: Pneumatic Lifting Devices, Quick Clamps Etc. Application: Melamine Resin, Amino Resin, Molding Powder, Flour, Plastic Powder, Glass Beads, Xylitol, Citric Acid, Food Additives, Calcium Carbonate Etc.
High Light:

amino resin tumbler screening machine


POM malamine resin tumbler screener


multi deck tumbler screening machine

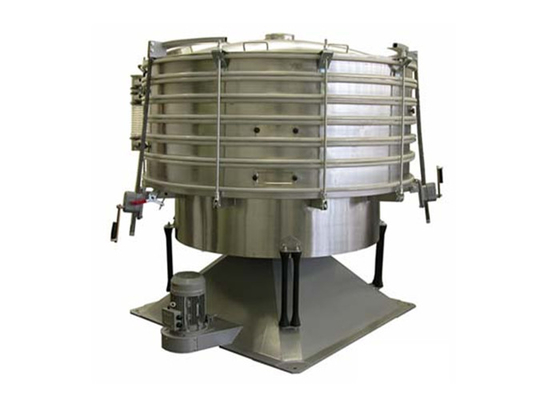

High Precision Tumbler Screening Machine Stainless Steel Material


Overview of Tumbler Screening Machine for POM Melamine Resin​:

Multi-deck tumbler screening machine for POM malamine resin is also called tumbler screening machine, tumbler sieve, swinging screen, swinging sieve, rocking sieve, shaking sieve machine etc.

  Unlike the typical vibratory or gyratory screening machine, the tumbler screening machine incorporates a unique three-dimensional tumbling motion providing the gentlest screening possible. This motion prevents delicate, friable material from being broken resulting in less undesirable fine generation and dust levels. Even the most difficult materials, which tend to blind screens, are screened efficiently by utilizing the proper anti-blinding systems including motor driven brushes and/or air knives that are unique to tumbler type screening machines.

  Tumbler screen machines are used for bulk material grading, safety screening, and dedusting in all industrial sectors. They are particularly well-suited to the fine and extremely fine screening of dry bulk materials and precise grading with up to 6 particle sizes. Our AM model tumbler screen machine features a range of customization options designed to meet extremely demanding requirements, as well as a broad variety of additional equipment options. Among these, the number of available screen cleaning systems is particularly worth mentioning, with balls, brushes, ultrasonic, and various combinations being of these options are available to prevent blinding and maintain efficient screening.


Working Principle of Tumbler Screening Machine for POM Melamine Resin​​​:

  The tumbler screener utilizes the humanoid screening principle. To imitate the movement of artificial screening action and do three-dimensional circular motion, skillfully combine the sieving (planar circular motion) and winnowing (upward parabolic motion), establish horizontal and throwing three-dimensional tumbling movement, make the material in the screen surface appear involute spiral movement. The material takes a relatively long distance across the relative area, and the landing screen time of the material is more than 85%, improving the screen through rate. The screening accuracy is as high as 90%~99%, increasing the yield.

  According to the physical properties of the material and the different screening requirements of customers, we can adjust the independent and adjustable rotate speed, eccentricity, radial force, tangential force, so as to change the material stay time on the screen surface and the moving route to achieve the best screening effect.

Precision Tumbler Screening Machine Stainless Steel Material 0Precision Tumbler Screening Machine Stainless Steel Material 1


Important Information About Tumbler Screening Machine for POM Melamine Resin​​ You Won't Miss:

Motion  involute spiral motion
Screening Accuracy  upto 90%~99.9%
Mesh Cleaning Method  bouncing ball cleaning, ultrasonic cleaning, brush cleaning, air   cleaning, ultrasonic air cleaning, air brush cleaning
Screen Structure  whole adhesive screen, or splicing segmented screen etc.
Layers of Screen  1~5 layers of screen
Diameter  600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm,   2000mm, 2100mm, 2300mm, 2600mm, 2900mm etc.
Advantages  soft rock screening will not destroy the particles original structure of the   material and not easy to produce static electricity
Optional  quick clamps, pneumatic lifting devices etc.
Application  can be used for material that is flammable, explosive and easy to   generate static
Motor Brand  Siemens, ABB, BEGEMA etc.


Features of Tumbler Screening Machine for POM Melamine Resin​​:

1. 1~5 decks per unit machine.
2. High screening efficiency.
3. Optional manual deck lifting device for easy screen replacement.
4. Individually adjustable retention time for any product and capacity.
5. Low acceleration, long service life of all parts, no product degradation.
6. Tough modular design, no dead corners, low part weights.
7. 100% statically and dynamically balanced for vibration free installation in steel structures.
8. Low noise, less than 75 dB.
9. Screen mesh size is down to 20μm.
10. Size range 600~2600 mm diameter.

Application of Tumbler Screening Machine for POM Melamine Resin​​​:

1. Chemical industry: resin, pigment, industrial medicine, cosmetic, coatings, Chinese medicine power etc.
2. Food industry: sugar powder, starch, salt, rice noodles, milk powder, soybean milk, egg powder, sauce, syrup etc.
3. Metal, metallurgy mining industry: aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, dioxide manganese, electrolyse copper powder, lithium battery materials, rubbing powder, fire-proof material, kaolin, lime, alumina, heavy calcium carbonate, quartz. Social pollution disposed; disposed oil, disposed water, disposed dye waste water, assistant detergent, active carbon etc.


Technical Parameters of Tumbler Screening Machine for POM Melamine Resin​​​​:

Precision Tumbler Screening Machine Stainless Steel Material 2

Model Screen Area (m²) Layers of Screen Motor Power (KW)
AM-600 0.28 1~5 0.25
AM-1000 0.72 1~5 1.5
AM-1200 1.10 1~5 1.5
AM-1500 1.80 1~5 2.2
AM-1800 2.30 1~5 4.0
AM-2000 2.60 1~5 4.0
AM-2300 3.90 1~5 4.0
AM-2600 5.30 1~5 5.5
AM-2900 6.40 1~5 5.5


Precision Tumbler Screening Machine Stainless Steel Material 3Precision Tumbler Screening Machine Stainless Steel Material 4

           BALANCE IS IMPORTANT !!                                  Pneumatic Lifting Device
