| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for export |
| Delivery Time: | 20~30 work days after order confirmed |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5 sets per month |
| Type: | German Type Exciter, Replacement | Purpose: | Can Be Used As A Power Source For Mining Linear Vibrating Screen |
|---|---|---|---|
| Classification: | Inertial Electric Type, Electromagnetic Type, Electro-hydraulic Type, Pneumatic Type And Hydraulic Type | Speed: | 750 Rpm, 1000 Rpm Etc. |
| Static Moment: | Min. 840 ~ Max. 7600 Kg·cm | Max. Vibration Force: | 178 KN ~ 493 KN |
| High Light: | industrial vibration machine,vibration machine industrial |
||

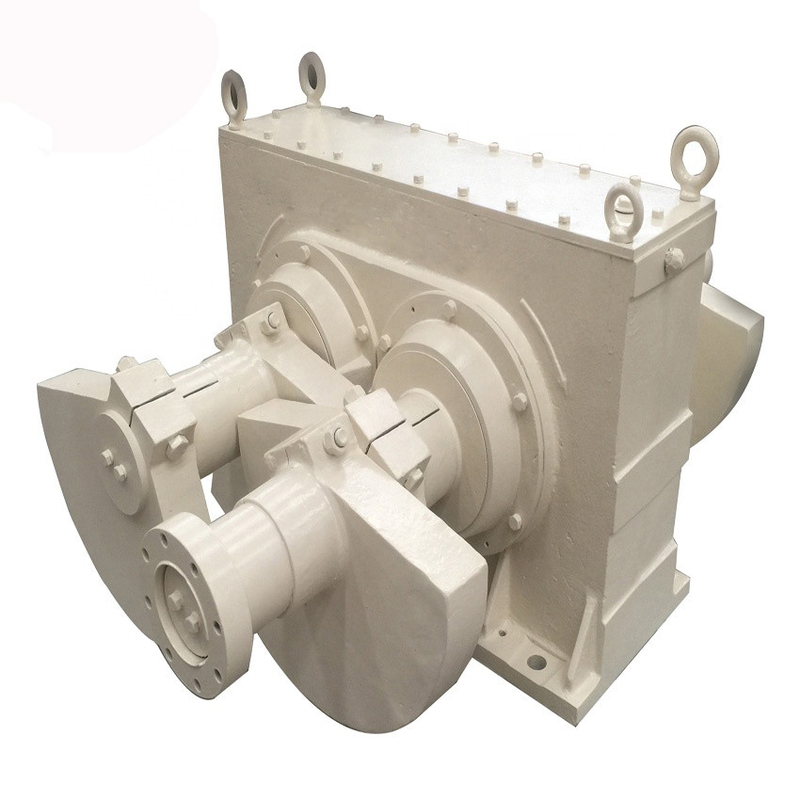

Replacement Industrial Vibrating Equipment German Type Vibration Exciter
Overview of Replacement German Type Vibration Exciter:
This series of exciter is suitable for all kinds of vibration equipment and is an ideal product to replace imported exciter. It can be replaced with Ori, Schenck, Johan Finley exciter.
The exciter will drive the particle materials of the screen in the continuous vibration. And the regular movement can realize the classification of materials.
One of the necessary accessories for screening machine is the vibration exciter, which is one of the power sources of the whole machine. The amplitude of the equipment has a great influence on the operation efficiency.
The exciter is used to adjust the excitation force and working moment. The sealed box is filled with gear oil to lubricate and dissipate heat of gears and bearings to ensure smooth transmission and reliable operation.
Technical Characteristics and Advantages of Replacement German Type Vibration Exciter:
1. Use the principle of self-synchronization to make the vibrating machinery produce linear vibration.
2. The exciter is fixed on the excited part during work, and the excited part will obtain the required vibration.
3. Lubrication method: Thin oil lubrication.
4. This type of exciter gear box is precision-made, light structure, good seal, fast heat dissipation, and no oil leakage.
5. Durable and reliable, high cost performance, continuous high frequency operation.
6. The motor is installed on the fixed frame on the side (left or right) of the vibration machine. The motor does not participate in vibration. Use a universal joint shaft to connect the motor to the vibrator.
7. Eccentric block is easy to adjust and disassemble.
8. Using good quality bearings or imported bearings, long service life.
9. Both contact and axial labyrinth seals are used for good sealing performance.
10. An oil injection hole is set above the casing to ensure good bearing lubrication.
11. It has the advantages of light weight, small size, simple structure, convenient installation and maintenance, and long service life.
12. It has the characteristics of stable and reliable operation, flexible adjustment, and small maintenance.
Structure and Composition of Replacement German Type Vibration Exciter:

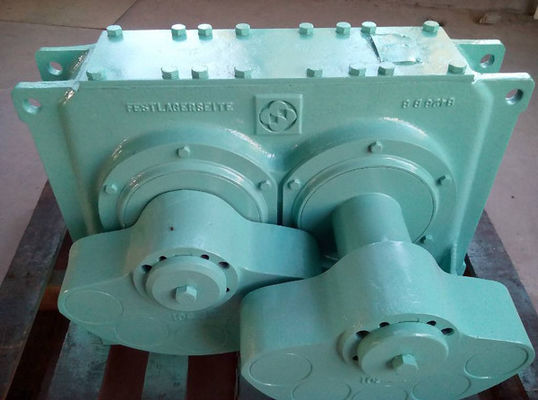

The imported vibration exciter is composed of a driving shaft, a driven shaft, an eccentric block, a plug block, a bearing, a gear pair, and a box body etc.
Technical Parameter of Replacement German Type Vibration Exciter:
| Model | AGE401S | AGE501S | AGE504S | AGE504V | AGE601S | AGE601V | |
| Rotate Speed (r/min) | 1000 | 1000 | 1000 | 750 | 1000 | 750 | |
|
Static Moment (Kg·cm) |
min | 840 | 1408 | 1937 | 1937 | 2296 | 3592 |
| max | 1624 | 2800 | 3664 | 4240 | 4500 | 7600 | |
| Max. Exciting Force (kN) | 178 | 307 | 402 | 262 | 493 | 467 | |
|
Weight (not include shield) |
472 | 750 | 886 | 928 | 1221 | 1457 | |
|
Size (mm) |
A | 4*120 | 5*120 | 5*120 | 5*120 | 4*120 | 4*120 |
| A1 | 150 | 150 | |||||
| B | 260 | 300 | 300 | 300 | 390 | 390 | |
| C | φ25 | φ31 | φ31 | φ31 | φ31 | φ31 | |
| D | 35 | 25 | 25 | 25 | 30 | 30 | |
| E | 600 | 730 | 730 | 730 | 910 | 910 | |
| F | 780 | 830 | 830 | 830 | 1040 | 1040 | |
| G | 340 | 380 | 380 | 380 | 470 | 470 | |
| H | 640 | 883 | 981 | 981 | 1012 | 1076 | |
| I | 568 | 570 | 570 | 570 | 623 | 623 | |
| J | 310 | 315 | 315 | 315 | 370 | 370 | |
| K | 275 | 300 | 300 | 300 | 376 | 376 | |
