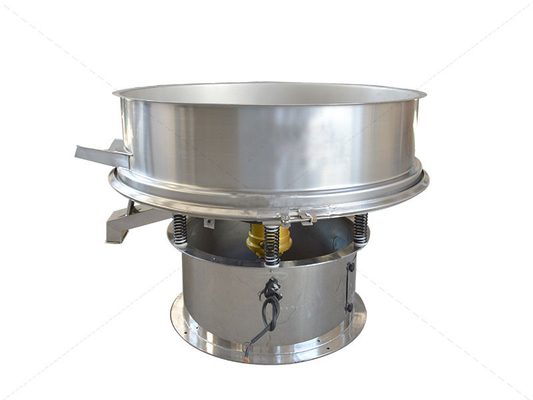

High Efficiency Wet Vibrating Screen Ceramic Slurry Filtration Vibrating Sieve

High Efficiency Wet Vibrating Screen Ceramic Slurry Filtration Vibrating Sieve

  • High Efficiency Wet Vibrating Screen Ceramic Slurry Filtration Vibrating Sieve
High Efficiency Wet Vibrating Screen Ceramic Slurry Filtration Vibrating Sieve
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AY
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~30 work days after order confirmed
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Movement: Three Dimensional Vibration Drive Device: One Set Of Verticle Vibrating Motor
Purpose: Used For Screening Slurry And Dirty Water In General Material: Stainless Steel 304, 316L Etc.
Feature: Open Type Design, Single Layer Screen Structure, Easy To Clean The Screen Advantage: Good Sealing, Low Power Consumption, Large Output, Mesh Hole Is Not Blocked
High Light:

wet screening equipment

,

wet vibrating screen

High Efficiency Wet Vibrating Screen Ceramic Slurry Filtration Vibrating Sieve



Instruction of Ceramic Slurry Filtration Vibrating Sieve:
This machine is used for screening slurry and dirty water in general. It has been constantly up-dated to reach high level of reliability and performance. At present, it has been used in a number of well-known domestic and foreign ceramic enterprises.



Moving Trajectory of Ceramic Slurry Filtration Vibrating Sieve:

Center of Gravity Angle Effects Main Usage
the raw material flows from the center line to the circumferential direction Rough classification.
Raw materials which are easy to be screened are classified in large number.
Coarse grading.
15° start the vortex motion Used for general screening
85° the longest vortex motion Precision grading.
Used for micropowder high condensation and high moisture content of the raw material classification
100° raw materials concentrate to the center special purpose



Function of Ceramic Slurry Filtration Vibrating Sieve:

♦Solid-liquid separation
-Dewatering solids of liquids
-Foods, chemicals, pulp
♦ Solids classification in liquid medium
-Separation of solids into sized fraction in liquid medium
-Chemicals, minerals, pulp and paper, ceramics, waste disposal


Features of Ceramic Slurry Filtration Vibrating Sieve:
1. It has large processing capacity within unit time
2. Open design and no closed cover that can observe screened materials conveniently
3. Using new “Z” type screen frame by our own designed that effectively avoid the friction of the working mesh and supporting as traditional design
4. Vibrations keep the mesh constantly free from residues and enable the machine to work 24/7, with brief operator interventions to clean the meshes on a periodic basis

5. Screen mesh and motor have a long service life. Simple operation and easy maintenance. Fast replacement of screen (5~10 min)



Technical Parameters of Ceramic Slurry Filtration Vibrating Sieve:

Model Power Effective Diameter Largest Vibration Force
AY-800 0.55KW 800mm 8KN
AY-1000 0.75KW 970mm 10KN
AY-1200 1.1KW 1170mm 15KN

Note:
The common voltage and frequency of this slurry Vibratory Separator is 380V, 50Hz, for other voltage or frequency, we could also customize vibration motor for you. In addition, we can manufacture this type of separator with 1-2 layers.



High Efficiency Wet Vibrating Screen Ceramic Slurry Filtration Vibrating Sieve 0High Efficiency Wet Vibrating Screen Ceramic Slurry Filtration Vibrating Sieve 1

High Efficiency Wet Vibrating Screen Ceramic Slurry Filtration Vibrating Sieve 2High Efficiency Wet Vibrating Screen Ceramic Slurry Filtration Vibrating Sieve 3
