| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | AQS |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic film, or fumigation-free plywood wooden case for split parts |
| Delivery Time: | 15~35 work days after order confirmed |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 sets per month |
| Features: | Fully Enclosed Structure, No Dust Disperse, Low Noise, Low Energy Consumption, Continuous Operation, Easy Maintenance | Power Supply: | Airflow |
|---|---|---|---|
| Screen Installation: | Install The Screen Vertically | Fineness Range: | 80~500 Mesh Fine Powder Materials |
| Advantage: | High Screening Efficiency, Large Capacity, Accurate Fitness, No Oversize Mixing Phenomenon | Application: | Light Calcium Carbonate, Graphite Powder, Resin Powder, Medicine Powder, Paint, Coal Ash, Talcum Powder, Plastic Powder, Pottery Clay, Grinding Material, Aluminum Powder, Glass Powder, Starch, Milk Powder, Metallurgical Powder, Activated Carbon |
| High Light: | rotary sifter machine,rotary trommel screen |
||

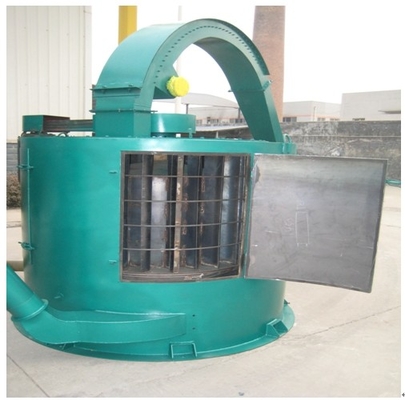

Vertical Rotary Sifter Screens Calcium Carbonate Powder Air Classifier Machine

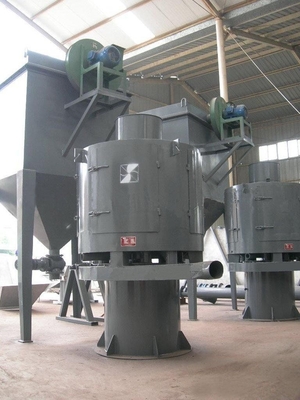

Overview of Vertical Air Classifier Screen Machine:
Vertical air classifier screen machine for light calcium carbonate rejects the working principle of gravitational potential energy. It adopts air as the carrier. After mixing the material with the air through the negative pressure airflow, sufficient centrifugal force is supplied by the wind turbine blade to spray through the barrel screen. The ultra-light material which can not pass through the screen is discharged by the automatic slag discharge port to achieve the purpose of quick screening.
The vertical airflow screen machine is used in graphite powder, resin powder, traditional Chinese medicine powder, paint, coal ash, talcum powder, plastic powder, pottery clay, grinding material, aluminum powder, glass powder, starch, milk powder, metallurgical powder, electromagnetic material, carbon black, activated carbon, light calcium carbonate and so on.
This machine is suitable for screening and classification of various powdery materials with 80~530 mesh. It makes it easy to do high fineness screening operation due to its high screening efficiency, large output, automatic feeding and discharging, continuous operation and no pollution.
After screening 120~180 mesh light calcium, 300 mesh heavy calcium, 400 mesh active calcium, 300 mesh hawthorn powder, 320-500 mesh zinc powder, 500 mesh iron oxide black, iron oxide red, 120~160 mesh traditional Chinese medicine powder and 180~270 mesh quartz powder, the hourly output per square meter of screen area were measured at about one ton. At the same time, the screening efficiency was measured above 95%, and the air dust content was less than 10 mg/m3.
Features of Vertical Air Classifier Screen Machine:
1. Fine powder materials in the fineness range of 80~500 mesh are well sifted continuously and with high precision.
2. High screening efficiency, large capacity, accurate fitness, no oversize mixing phenomenon.
3. The screen is installed vertically, with no load, long service life, and suitable for a wide range of fineness.
4. Fully enclosed structure, no dust disperse, low noise, low energy consumption, continuous operation, easy maintenance.
| Model | AQS-600 | AQS-1000 | AQS-1600 | AQS-2000 |
| Air Volume (m³/h) | 240~1100 | 300~2500 | 460~4900 | 650-6000 |
| Screen Mesh | 80~600 mesh | |||
| Feeding Size | > 40 mesh | |||
| Power | 3 | 5.5 | 11 | 15 |
|
Spindle Speed (rpm/min) |
450-1450 | |||
| Outer Diameter (mm) | 600 | 1000 | 1600 | 2000 |
| Height (mm) | 1150 | 1730 | 2300 | 2500 |

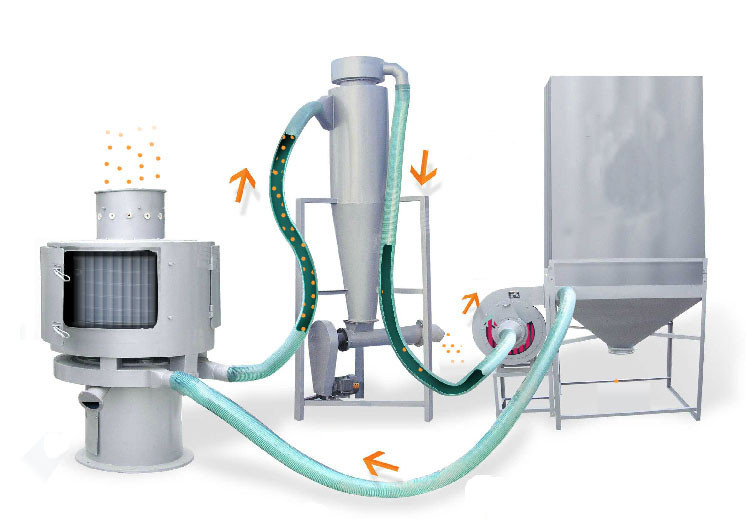

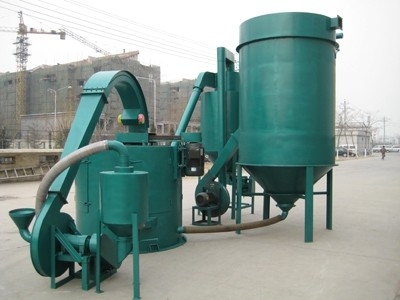

1. airflow sieving machine 2. cyclone collector 3. pulse dust collector
4. induced draft fan 5. tube
Application of Vertical Air Classifier Screen Machine:
Suitable for screening graphite powder, resin powder, traditional Chinese medicine powder, coating, fly ash, talcum powder, industrial medicine, cosmetics, fire extinguishing agent, plastic powder, clay, abrasive, aluminum powder, glass powder, refractory material, starch, milk powder, metallurgical powder, electromagnetic material, copper powder, carbon black, activated carbon, light calcium carbonate, iron ore etc.
