Electromagnetic Sieve Shaker Three Dimensional For Lab Granularity Inspection

Electromagnetic Sieve Shaker Three Dimensional For Lab Granularity Inspection

  • Electromagnetic Sieve Shaker Three Dimensional For Lab Granularity Inspection
  • Electromagnetic Sieve Shaker Three Dimensional For Lab Granularity Inspection
  • Electromagnetic Sieve Shaker Three Dimensional For Lab Granularity Inspection
  • Electromagnetic Sieve Shaker Three Dimensional For Lab Granularity Inspection
Electromagnetic Sieve Shaker Three Dimensional For Lab Granularity Inspection
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AT-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 1~30 work days after order confirmed
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Features: High Frequency, Low Noise, Light Weight, Easy To Operate Movement: Three Dimensional Vibration
Main Product: Yes, Designed And Made By Ourselves Type: Electromagnetic Vibration Type
Advantage: For Both Dry Screening And Wet Screening Sieve Number: 1~8 Pcs
Digital Display: YES Time Adjustment: 0~99 Minutes
Material: Stainless Steel Wire Drawing Frequency: 3000 Times/min
High Light:

laboratory sieve shaker machine

,

sieve testing equipment



Electromagnetic Sieve Shaker Three Dimensional For Lab Granularity Inspection

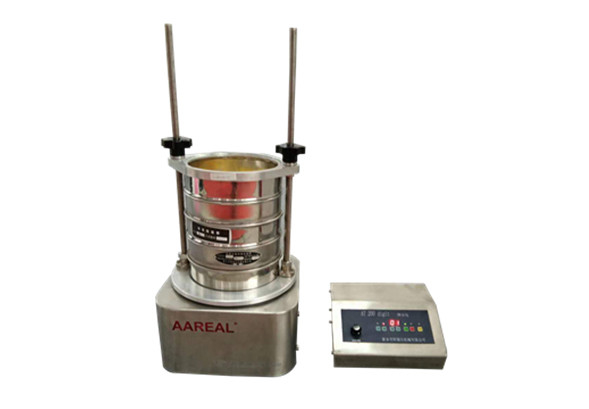

Overview of AT-200 Electromagnetic Vibration Test Sieve Shaker:

The AT-200 electromagnetic vibration test sieve shaker for lab granularity inspection does three dimensional vibration. It is the best equipment for laboratory particle size inspection and field screening. It can be used for both dry and wet screening.

  This device is widely used in pharmaceutical, metallurgy, food, super hard materials and other industries for particle analysis. It is a simple, efficient and precise screening tool that can reproduce the results of analysis very well.

  The AT-200 test sieve shaker is one of our main products. It is designed and made by our factory. The test effect and result are much better than the traditional electromagnetic vibration test sieve shaker. Besides, the body shell adopts stainless steel wire drawing technology, simple and beautiful.



Features of AT-200 Electromagnetic Vibration Test Sieve Shaker:

1. AT-200 electromagnetic vibration test sieve shaker uses advanced powerful electromagnetic vibrator to produce optimized three-dimensional vibration, which makes the sieved samples not only vibrate vertically, but also roll over, so that it can make full use of the screen area to achieve the best result that can be reproduced.

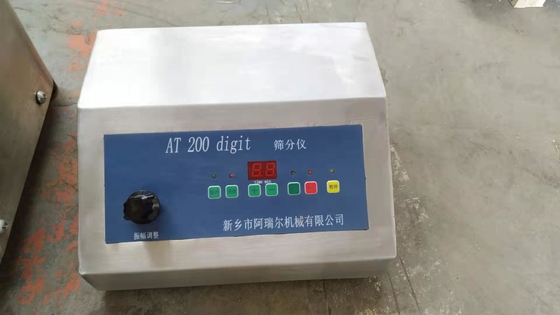

2. With advanced numerical control circuit, the operating parameters such as amplitude, frequency and control time can be accurately adjusted.

3. Suitable for dry screening and wet screening.

4. Low noise, light weight, no need to fix and easy to operate.



Feeding Material:

1. Max Screening Capacity: 2.5 Kg

2. Max Sieve Tower Weight: 3.2 Kg

3. Max Loading Weight: 5.8 Kg (sample materials + analysis sieves)

4. Max Sieve Tower Height: 460 mm



Technical Parameters of AT-200 Electromagnetic Vibration Test Sieve Shaker:

NO. Name Unit Data
1 Sieve NO. Layer 1~8
2 Screen Diameter mm Ø200 Ø100 Ø75
3 Particle Size mm 0.028~3
4 Noise dB <50
5 Amplitude mm 0~3
6 Vibration Frequency times/min 3000; 6000
7 Operating Mode Kind 9
8 Power Supply V;Hz 220; 50
9 Power W 200
10 Weight Kg 30

  When ordering our AT-200 test sieve shaker, please let me know the voltage, hertz, sieve number, mesh size for each sieve. If you have special requirement for the motor brand, please also tell us.
Item Required Requirement
Motor Brand if special required
Voltage (Single Phase) 220V, 110V, or other?
Hertz 50HZ, or 60HZ ?
Sieve Number
Mesh Size for each sieve



Electromagnetic Sieve Shaker Three Dimensional For Lab Granularity Inspection 0

It also can be used in Wet Screening by equipping with the inlet and outlet nozzle.
Electromagnetic Sieve Shaker Three Dimensional For Lab Granularity Inspection 1Electromagnetic Sieve Shaker Three Dimensional For Lab Granularity Inspection 2
