Electromagnetic Vibration Feeder Machine Miniature Seat Type For Accurate Feeding

Electromagnetic Vibration Feeder Machine Miniature Seat Type For Accurate Feeding

    • Electromagnetic Vibration Feeder Machine Miniature Seat Type For Accurate Feeding
    • Electromagnetic Vibration Feeder Machine Miniature Seat Type For Accurate Feeding
    • Electromagnetic Vibration Feeder Machine Miniature Seat Type For Accurate Feeding
  • Electromagnetic Vibration Feeder Machine Miniature Seat Type For Accurate Feeding

    Product Details:

    Place of Origin: China
    Brand Name: AAREAL
    Certification: ISO9001:2015

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Plywood wooden case (fumigation-free) for export
    Delivery Time: 20~30 work days after order confirmed
    Payment Terms: T/T, L/C, Western Union, MoneyGram
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Drive Device: Electromagnetic Vibration Exciter Material: Stainless Steel
    Type: Closed Type, Open Type (optional) Purpose: For Powder And Granular Material Feeding, Batching And Quantitative Automatic Packaging And Other Production Processes
    Advantage: Can Transport High Temperature, Serious Abrasion And Corrosive Materials Characteristics: Small Size, Light Weight, Simple Structure, Low Power Consumption, And Stepless Adjustment Of Feeding Amount
    High Light:

    vibrating screen feeder

    ,

    electromagnetic vibratory feeder

    Electromagnetic Vibration Feeder Machine Miniature Seat Type For Accurate Feeding

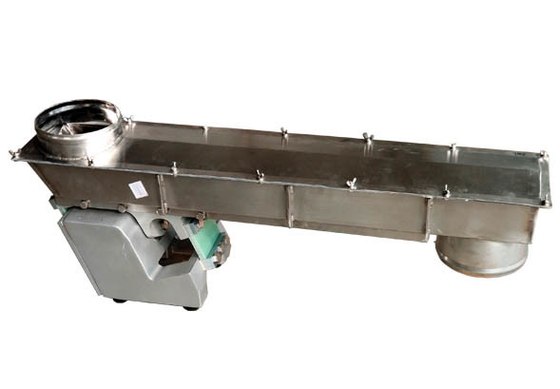

    Overview of Miniature Seat Type Electromagnetic Vibration Feeder For Accurate Feeding:

    Miniature seat type electromagnetic vibrating feeder for accurate feeding is also called magnetic vibration-actuated feeder, actuated feeder, electromagnetic drive vibratory feeder. Driven by electromagnetic vibration exciter, it is widely used for powder and granular material feeding, batching and quantitative automatic packaging and other production processes.



    Working Principle of Miniature Seat Type Electromagnetic Vibration Feeder For Accurate Feeding:

      Miniature seat type electromagnetic vibrating feeder adopts a linear groove reciprocating type. It is composed of trough, electromagnetic vibration exciter and shock absorber. The material can be screened without direction. The electric control adopts the semi-wave rectifier circuit, which is completely not equipped with rotating parts. And it uses the principle of micro-throwing motion to feed the material.

      With automatic amplitude stabilizing control box, it can not be affected by the voltage fluctuation of power supply and improve the feeding accuracy.

      Compared with other types of feeder, the miniature seat type electromagnetic vibrating feeder has the characteristics of small size, light weight, simple structure, low power consumption, and stepless adjustment of feeding amount.



    Application of Miniature Seat Type Electromagnetic Vibration Feeder For Accurate Feeding:

      Miniature seat type electromagnetic vibrating feeder is widely used in light industry, chemical industry, grain processing, commercial and other industries, for powder and granular material feeding, batching and quantitative automatic packaging and other production processes. And it can realize centralized control and automatic control.



    Features of Miniature Seat Type Electromagnetic Vibration Feeder For Accurate Feeding:

    1. The feeding process is completely automatic. The slot wear is small, and the machine is easy to maintain.

    2. It can transport high temperature, serious abrasion and corrosive materials.

    3. The control box can realize manual and automatic adjustment. Just put it on the workbench at work.

    4. The miniature seat type electromagnetic vibrating feeder can be added 1~2 layer of screens to the feed trough so as to use it as a small vibrating screen equipment.

    5. The minimum voltage of 220V can be applied. And it can be used when voltage is extremely unstable.

    6. The miniature seat type electromagnetic vibrating feeder is small in size and light in weight. It is configured according to different specifications. The minimum weight can be as low as 4 kilograms.

    7. The vibration frequency is stable. The vibration force is 3000, and the double amplitude is 1.5mm. The effective power of the product can reach 50W. Energy saving, high operational safety performance.



    Technical Parameter of Miniature Seat Type Electromagnetic Vibrating Feeder For Accurate Feeding:

    Model AGV1 AGV2 AGV3 AGV4 AGV5 AGV6
    Capacity (t/h) 0.1 0.5 1 2 4 6
    Double Amplitude (mm) 1.5
    Vibration Frequency (r/min) 3000
    Effective Power (W) 5 8 20 25 30 50
    Weight (kg) 4 7 12 18 27 45



    Control Device

    Control Method Controllable Half-wave Rectification
    Supply Voltage 220V
    Frequency 50HZ
    Current (A) 0.10 0.15 0.20 0.30 0.35 0.80
    Note: Production capacity is calculated according to the material volume weight 1.6t/m3



    Electromagnetic Vibration Exciter of Miniature Seat Type Electromagnetic Vibration Feeder For Accurate Feeding:



    Electromagnetic Vibration Feeder Machine Miniature Seat Type For Accurate Feeding 0Electromagnetic Vibration Feeder Machine Miniature Seat Type For Accurate Feeding 1

    Electromagnetic Vibration Feeder Machine Miniature Seat Type For Accurate Feeding 2Electromagnetic Vibration Feeder Machine Miniature Seat Type For Accurate Feeding 3
