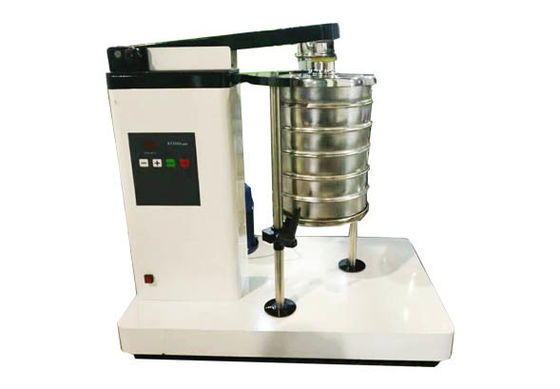

Tap Test Sieve Shaker Slapping Type For Laboratory Particle Size Analysis

Tap Test Sieve Shaker Slapping Type For Laboratory Particle Size Analysis

    • Tap Test Sieve Shaker Slapping Type For Laboratory Particle Size Analysis
    • Tap Test Sieve Shaker Slapping Type For Laboratory Particle Size Analysis
    • Tap Test Sieve Shaker Slapping Type For Laboratory Particle Size Analysis
    • Tap Test Sieve Shaker Slapping Type For Laboratory Particle Size Analysis
    • Tap Test Sieve Shaker Slapping Type For Laboratory Particle Size Analysis
    • Tap Test Sieve Shaker Slapping Type For Laboratory Particle Size Analysis
  • Tap Test Sieve Shaker Slapping Type For Laboratory Particle Size Analysis

    Product Details:

    Place of Origin: China
    Brand Name: AAREAL
    Certification: ISO9001:2015
    Model Number: AT200tap

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Plywood wooden case for export (fumigation-free)
    Delivery Time: 1~30 work days after order confirmed
    Payment Terms: T/T, L/C, Western Union, MoneyGram
    Supply Ability: 10 sets per month
    Contact Now
    Detailed Product Description
    Main Product: Yes, It Is Designed And Made By Ourselves Working Mode: Tapping Type Test Sieve Shaker
    Sieve Number: 1~8 Pcs Digital Display: Yes
    Time Adjustment: 0~99 Minutes Material: Carbon Steel
    Colour: White, Stoving Varnish Voltage: 220V, 50HZ/60HZ
    High Light:

    laboratory sieve shaker machine

    ,

    sieve testing equipment

    Tap Test Sieve Shaker Slapping Type For Laboratory Particle Size Analysis



    Overview of AT200tap Slapping Type Tap Test Sieve Shaker:

    AT200tap tap test sieve shaker is also known as the tap vibration test sieve, tap vibration test screen, standard tap sieve shaker, standard tapping vibration test screen, standard slap vibration test sieve, ro-tap sieve shaker, ro-tap test sieve shaker, ro-tap sieve, rotap sieve shaker, rotap test sieve shaker, rotap sieve, ro-tap motorized sieve shaker, rotap motorized sieve shaker, rotap screen machine, ro-tap screen machine, ro-tap testing sieve shaker, rotap testing sieve shaker, slap vibrating screen, panting sieve machine, sand sieving machine, sand sieving machine, flapping vibration test screen machine, beating vibration test sieve, classifier, jigging sieve, sieve shaker, sieving machine, shaking sieve, screen shaker etc.
      The AT200tap tap test sieve shaker can be equipped with sound-proof cover or shield according to the requirement.
      The AT200tap tap test sieve shaker (synchronous belt type) made by our company is in accordance with international products. The working parameters meet the national standards. With test sieve and sample sieve, it can be used for metallurgy, chemical industry, abrasive, super hard materials, feed, food, medicine and other industries screening production and inspection of the powder materials.



    Working Principle of AT200tap Slapping Type Tap Test Sieve Shaker:

    The motor drives the gear speed change through the synchronous belt, making the main shaft rotate. And then the main shaft drives the eccentric wheel to make the slide plate drive the test sieve shake left and right. At the same time, it drives the top gear rotate, strike the hammer and slap the test sieve, making materials in the test sieve and sample sieve screen layer by layer. So people can accurately obtain the materials of multiple particle size ranges at the same time, achieving accurate and rapid screening purposes.



    Features of AT200tap Slapping Type Tap Test Sieve Shaker:

    1. The reproducibility of the test result is good.

    2. It can be equipped with 200mm or 205mm sieves, 1~8 layers.

    3. Simple operation, free of refueling, clean, hygienic and convenient.

    4. Selection of high quality accessories, reasonable structure, low failure rate.

    5. Complete synchronous belt conduction power, quick and easy maintenance.

    6. Sound protecting cover can be installed to avoid noise.

    7. Accurate transmission, good consistency.

    8. Long life and low maintenance cost.

    9. High screening efficiency.

    10. Clean.



    Application of AT200tap Slapping Type Tap Test Sieve Shaker:

    Our AT200tap tap test sieve shaker is ainly used in diamond and other materials of high value, requiring accurate screening of the abrasive industry. It is widely used in metallurgy, powder, chemical, pharmaceutical, building materials, geology, feed, defense and other departments of scientific research and production, laboratory, and quality inspection room, for particle and powdery materials granular structure and sundries amount of standard screening, filtering and inspection sieve test. The device is equipped with timing device to ensure the accuracy and repeatability of the user test results.



    Technical Parameters of AT200tap Slapping Type Tap Test Sieve Shaker:

    NO. Name Value Unit
    1 Diameter 300, 200, 150, 100, 75 mm
    2 Layer 5~7 Layer
    3 Shaking Times 290±10 times/min
    4 Tapping Times 156±10 times/min
    5 Reciprocating Trip 25 mm
    6 Tapping Height 38±6 mm
    7 Power 370 W
    8 Voltage 380, 220 V
    9 Dimensions H700*L460*W420 mm
    10 Weight 100 KG
    Note: All technical data and dimensions of our products shall be subject to physical objects.

    Tap Test Sieve Shaker Slapping Type For Laboratory Particle Size Analysis 0
