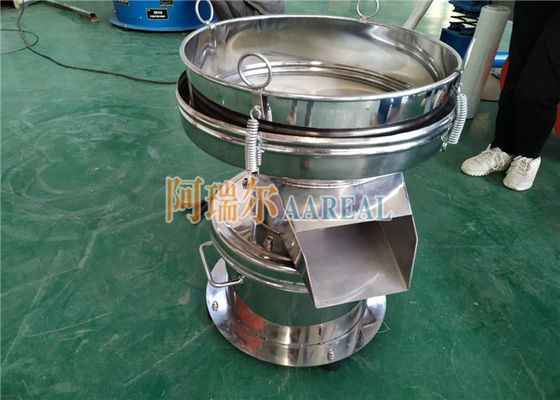

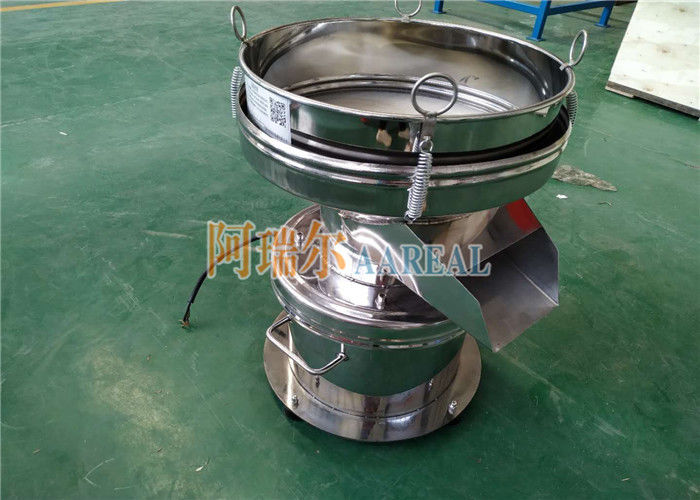

Stainless Steel 304 Noiseless 450mm Small Size Rotary Vibrating Filter Sieve For Soybean Milk

Stainless Steel 304 Noiseless 450mm Small Size Rotary Vibrating Filter Sieve For Soybean Milk

Product Overview of Stainless Steel 304 Noiseless 450mm Small Size Rotary Vibrating Filter Sieve For Soybean Milk:
Stainless Steel 304 Noiseless 450mm Small Size Rotary Vibrating Filter Sieve For Soybean Milk is also well known as the 450 type filter sieve. It is a kind of small vibrating filter which is easy to move, high efficiency, low noise and small volume. It is especially suitable for powder screening and slurry filtration with less impurity content. The 325 mesh screen filter paint with a specific gravity of 1.1 can reach 1200 liters per hour, and the 30 mesh screen can handle 700 kilograms per hour flour. It has an excellent filtration performance for ceramic uranium material.


Structural Features of Stainless Steel 304 Noiseless 450mm Small Size Rotary Vibrating Filter Sieve For Soybean Milk:

1. It is convenient to remove and change the screen by using the internal V-type screen pressing way.
2. The upper screen frame can be easily removed, and it is very convenient to pour off impurities that do not pass through the screen.
3. The material is directly discharged. There is no dead angle in the screen machine, and no secondary pollution is generated.
4. A waterproof cover is added to prevent electricity from water.
5. A nylon brake wheel can be added for easy movement.

Working Principle of Stainless Steel 304 Noiseless 450mm Small Size Rotary Vibrating Filter Sieve For Soybean Milk:
  The 450mm vibrating filter sieve machine adopts a new type of vertical vibration motor as the vibration source. The upper and lower ends of the vertical vibration motor are equipped with eccentric weights, which can generate horizontal, vertical and inclined three-dimensional motion. The exciting force is transmitted to the screen frame and materials through the receiving pan to achieve an excellent grade. By adjusting the phase angle of the upper and lower eccentric weight hammer, the movement track of the material on the screen surface can be changed to ensure the full grading of the material.


Product Advantages of Stainless Steel 304 Noiseless 450mm Small Size Rotary Vibrating Filter Sieve For Soybean Milk:

1. Small volume, low noise, easy to move, the discharge port can be arranged along the circumferential direction.
2. High screening accuracy and high efficiency, can be used in any powder, granule or mucus.
3. Fully enclosed structure, the powder is not flying, the mesh is not blocked, and sieving powder can reach 400 mesh.
4. It is easy to replace the screen, easy to operate and easy to clean.
5. There are no special requirements for the equipment foundation, and the general cement floor can be used directly.
6. The machine is equipped with mesh anti-blocking device, which can effectively eliminate the blockage of the mesh.
7. The mixed materials enter from the center. After sieving, the materials of various particle sizes are automatically and continuously discharged from the respective outlets, which can realize continuous production.

Technical Parameters of Stainless Steel 304 Noiseless 450mm Small Size Rotary Vibrating Filter Sieve For Soybean Milk:

Structural Composition of Stainless Steel 304 Noiseless 450mm Small Size Rotary Vibrating Filter Sieve For Soybean Milk:
  AAREAL 450 type vibro sifter consists of the body, vibrating motor, hopper, screen frame, electronic control unit etc. The machine adopts a new type of vibration structure with stable vibration and high efficiency. The screen frame is easy to operate, easy to clean, and easy to replace the screen. This machine has the advantages of novel appearance, reasonable structure and easy to operate, and is more suitable for occasions where the working place is frequently changed.


Screen Replacement of Stainless Steel 304 Noiseless 450mm Small Size Rotary Vibrating Filter Sieve For Soybean Milk:
  When you want to replace the screen, first remove the screen frame from the receiving pan, loosen the bolts, remove the broken screen, and then spread the new screen on the screen frame, and put the screen holder, and draw it around (avoid being too tight), leave a centimeter along the mesh ring, put on the bolts and tighten, and finally cut off the excess screen.
