High Performance Solid Liquid Separator Portable Noiseless 450 Vibrating Sifter

High Performance Solid Liquid Separator Portable Noiseless 450 Vibrating Sifter

  • High Performance Solid Liquid Separator Portable Noiseless 450 Vibrating Sifter
  • High Performance Solid Liquid Separator Portable Noiseless 450 Vibrating Sifter
High Performance Solid Liquid Separator Portable Noiseless 450 Vibrating Sifter
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AY-450
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood wooden case (fumigation-free) for export
Delivery Time: 7~30 work days after order confirmed
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Purpose: Suitable For Powder Screening And Slurry Filtration With Less Impurity Content Material: Carbon Steel, Stainless Steel (optional)
Layers Of Screen: Single Layer Motor: Vertical Type Vibration Motor
Type: Seat Type, Portable Mobile Type (optional) Advantage: Small Size, And Easy To Clean The Screen Mesh
Application: Soybean Milk, Paint Coating, Glaze Powder Etc.
High Light:

wet screening equipment

,

wet vibrating screen

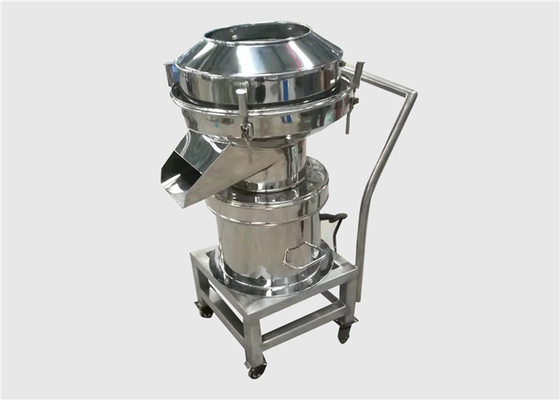

High Performance Solid Liquid Separator Portable Noiseless 450 Vibrating Sifter



Overview of 450 Vibrating Sifter for Soybean Milk:
The high-performance portable type noiseless 450 vibrating sifter for soybean milk, also known as the 450 type filter sieve machine, is well-qualified for filtering of glaze, paint, soya bean milk or similar materials.

  It is a kind of small vibrating screen filter which is easy to move, high efficiency, low noise and small volume. It is especially suitable for powder screening and slurry filtration with less impurity content. The 325 mesh screen filter paint with a specific gravity of 1.1 can reach 1200 liters per hour, and the 30 mesh screen can handle 700 kilograms per hour flour. It has an excellent filtration performance for ceramic uranium material.



Technical Parameters of 450 Vibrating Sifter for Soybean Milk:

Effective Screen Diameter  380 mm
Material  stainless steel 304 or carbon steel
Layer of Screen  only one layer
Motor  one unit of vertical vibration motor
Vibration Amplitude  2~5 mm
Power  0.18 KW
Voltage  220V/Single-phase, 380V or 415V/3-Phase, 50/60 HZ
Frequency  1480 r/min
Mesh Size  0.038 mm~3 mm
Machine Size  460*550*665 mm
Application  food, pharmaceutical, chemical, paint and ceramics etc.



Features of 450 Vibrating Sifter for Soybean Milk:
1. Easy to change screen mesh
2. Stainless steel 304 contact parts as standard.
3. We have more than 3 designs for optional according to the material properties and production field.
4. Can be equipped with Omni-directional wheel (also called universal wheel), easy to move.
5. Powder and liquid all can be process.
6. Small size, space saving.



Advantages of 450 Vibrating Sifter for Soybean Milk:
1. High screening accuracy and high efficiency, can be used in any powder, granule or mucus.
2. Fully enclosed structure, the powder is not flying, the mesh is not blocked, and sieving powder can reach 400 mesh.
3. Small volume, low noise, easy to move, the discharge port can be arranged along the circumferential direction.
4. The machine is equipped with mesh anti-blocking device, which can effectively eliminate the blockage of the mesh.
5. There are no special requirements for the equipment foundation, and the general cement floor can be used directly.
6. It is easy to replace the screen, easy to operate and easy to clean.
7. The mixed materials enter from the center. After sieving, the materials of various particle sizes are automatically and continuously discharged from the respective outlets, which can realize continuous production.

Structural Features of 450 Vibrating Sifter for Soybean Milk:
1. The upper screen frame can be easily removed, and it is very convenient to pour off impurities that do not pass through the screen.
2. The material is directly discharged. There is no dead angle in the screen machine, and no secondary pollution is generated.
3. It is convenient to remove and change the screen by using the internal V-type screen pressing way.
4. A nylon brake wheel can be added for easy movement.
5. A waterproof cover is added to prevent electricity from water.

Working Principle of 450 Vibrating Sifter for Soybean Milk:
  The 450 type filter screen adopts a new type of vertical vibration motor as the vibration source. The upper and lower ends of the vertical vibration motor are equipped with eccentric weights, which can generate horizontal, vertical and inclined three-dimensional motion. The exciting force is transmitted to the screen frame and materials through the receiving pan to achieve an excellent grade. By adjusting the phase angle of the upper and lower eccentric weight hammer, the movement track of the material on the screen surface can be changed to ensure the full grading of the material.

Structural Composition of 450 Vibrating Sifter for Soybean Milk:
  The 450 type filter machine consists of the body, vibrating motor, hopper, screen frame, electronic control unit etc. The machine adopts a new type of vibration structure with stable vibration and high efficiency. The screen frame is easy to operate, easy to clean, and easy to replace the screen. This machine has the advantages of novel appearance, reasonable structure and easy to operate, and is more suitable for occasions where the working place is frequently changed.
High Performance Solid Liquid Separator Portable Noiseless 450 Vibrating Sifter 0

Application of 450 Vibrating Sifter for Soybean Milk:
  450 type vibrating sifter can be widely used in food, ceramic, medicine, metallurgy, chemical industry, paint and other industries. Also it has a successful application in fast food restaurants and famous chain distribution center, such as pastry flour, bread flour screening in removing impurity, fruit and vegetable juice, soymilk filter etc.


Screen Replacement of 450 Vibrating Sifter for Soybean Milk:
  1. First remove the screen frame from the receiving pan, loosen the bolts, remove the screen that needs to be replaced.

  2. Then spread the new screen on the screen frame, and put the screen holder, and draw it around (avoid being too tight), leave a centimeter along the mesh ring, put on the bolts and tighten, and finally cut off the excess screen.



High Performance Solid Liquid Separator Portable Noiseless 450 Vibrating Sifter 1
