| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | APQ |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for small size parts, and plastic film for big size device |
| Delivery Time: | 15~35 work days after order confirmed |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 sets per month |
| Features: | Small Size, High Screening Accuracy, Low Failure Rate And Convenient Maintenance. | Layers Of Screen: | Single Layer Of Screen |
|---|---|---|---|

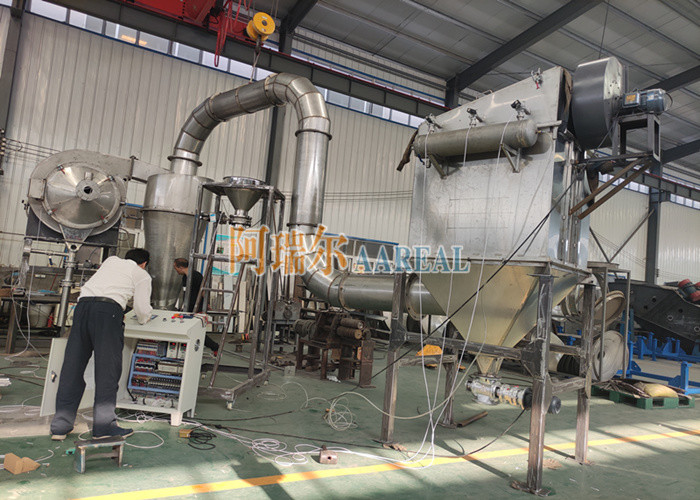

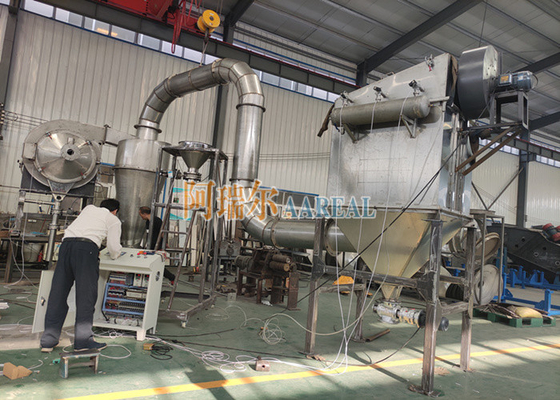

| Mesh Size: | >10 μm | Structural Composition: | Turbo-screen Air Classifier, Cyclone Separator, Pulse Dust Collector, Control Panel Etc. |

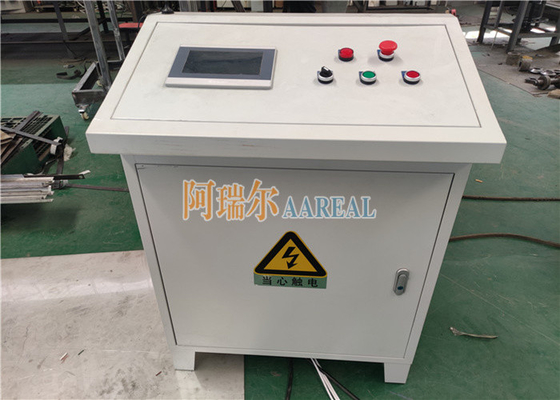

| Optional Device: | Control Panel, Ultrasonic System, Pulse Dust Collector Etc. | Anti-blocking: | No Blockage Because Of The Air Brush |
| Material Can Be Sifted: | Spherical Graphite, Talcum Powder Etc. | Application: | Particles With Static Electricity, Materials Easy To Agglomerate And With Light Specific Gravity, Viscous Materials Containing Water Or Oil Etc. |
| High Light: | Ultrasonic Turbo Air Classifier,325 Mesh Turbo Air Classifier,Graphite Powder Turbo Air Classifier |
||
Big Capacity Ultrasonic Turbo Air Classifier for 325 Mesh Spherical Graphite Powder
Overview of Big Capacity Ultrasonic Turbo Air Classifier for 325 Mesh Spherical Graphite Powder:
Big Capacity Ultrasonic Turbo Air Classifier for 325 Mesh Spherical Graphite Powder is also called turbo-screen air classifier, turbo air classifier, vortex screen, air classifier, airflow screen machine, high efficiency wind screening machine, blow-through type high-performance sieving machine etc. It provides continuous dry material screening, achieving the high efficiency micron-sized accurate separation of 25µm~8500µm particles.
We introduce the technology from Japan and the USA. The turbo-screen air classifier provides continuous, precise screening of dry materials, especially in the finer particle sizes. Designed to handle even the most difficult materials, the turbo air classifier is ideally suited for separating electrostatic materials and particles that tend to agglomerate easily. In certain applications, it is the only machine capable of commercial scale separation.
Application of Big Capacity Ultrasonic Turbo Air Classifier for 325 Mesh Spherical Graphite Powder:
The turbo-screen air classifier can be used in food, powder metal, chemical, plastic, cosmetics, pigments, tobacco, pharmaceuticals, minerals, electronics, ceramics and other industries. Such as graphite powder, carbon powder, wood flour, soldering tin, talcum powder, powder coating, toner etc.
Working Principle of Big Capacity Ultrasonic Turbo Air Classifier for 325 Mesh Spherical Graphite Powder:
Big Capacity Ultrasonic Turbo Air Classifier for 325 Mesh Spherical Graphite Powder controls the particle size precisely through the screen mesh.
The powder is dispersed in the airflow and through the static screen, so it can accurately screen micron-sized powder, which can not be realized by vibration type sieving machine or air classifier.
The blow-through type high-performance vortex air classifier has a great contribution to the diversification, high added value and high quality of all kinds of powder raw materials and products. Furthermore, for the powder with humidity, oil content and electric charge that is difficult to screen and yield can not be guaranteed, it is a professional screening machine.
Features of Big Capacity Ultrasonic Turbo Air Classifier for 325 Mesh Spherical Graphite Powder:
1. There is no blockage because of the air brush. Thus the vortex screen can sieve smoothly from the granular to the micro powder, and finally to several microns of ultrafine particles.
2. With unique working principle and excellent screen anti-blocking performance, it is almost allowed to screen any type of powders regardless of the specific gravity size, and no matter whether it has the powder properties such as adhesiveness, cohesion, coagulation, fluidity, hygroscopicity and so on, more suitable for screening lightweight and electrostatic materials. It can easily complete the spherical particle sieving that the ultrasonic screening machine can not manage.
3. Fully automatic continuous operation. It can be easily added into the grinding and pneumatic conveying production line.
4. It takes just a few minutes to realize quick screen replacement.
5. Slight vibration, low noise, full closed structure, no dust, no pollution.
6. High screening accuracy, low failure rate and convenient maintenance.
7. Cover a small area. The processing capacity per unit area of screen is super strong.
| Material | Soldering Tin | Talcum Powder | Powder Coating | Toner | Carbon Powder | Wood Flour | |
| Capacity | APQ-18 | 30 | 100 | 50 | 70 | 50 | 70 |
| APQ-30 | 120 | 420 | 200 | 420 | 200 | 300 | |
| Screen Mesh (µm) | 25 | 75 | 75 | 45 | 75 | 150 | |
Technical Parameters of Big Capacity Ultrasonic Turbo Air Classifier for 325 Mesh Spherical Graphite Powder:
| Model | Screen Diameter (mm) | Power (KW) | Weight (KG) |
| APQ-18 | 458 (18 inches) | 4 | 230 |
| APQ-30 | 762 (30 inches) | 5.5 | 560 |
| APQ-38 | 965 (38 inches) | 7.5 | 650 |
| APQ-45 | 1145 (45 inches) | 11 | 820 |
