| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | AY |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for export |
| Delivery Time: | 20~30 work days after order confirmed |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
| Vibrating Frequency: | Intermediate Frequency | Movement: | Three Dimensional Vibration |
|---|---|---|---|
| Purpose: | Solid-liquid Separation, Removal Of Impurity | Power Source: | One Set Of Verticle Vibrating Motor |
| Material: | Stainless Steel 304, 316L Etc. | Diameter: | 800mm, 1000mm, 1200mm |
| Layers Of Screen: | 1~2 Layers Of Screen | Advantage: | Large Output, Good Sealing, Low Power Consumption, Mesh Hole Is Not Blocked |
| Characteristics: | Open Type Design, Single Layer Screen Structure, Easy To Clean The Screen | Application: | Ceramic Slurry, Paper Pulp Etc. |
| High Light: | wet vibrating screen,sieve separator machine |
||

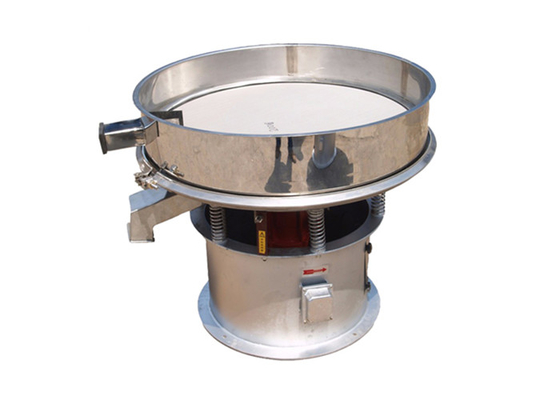

Stainless Steel Vibro Sieve Machine Ceramic Slurry Vibrating Filter Screen
Instruction of Stainless Steel Ceramic Slurry Vibrating Filter Screen Machine:
Stainless Steel Ceramic Slurry Vibrating Filter Screen Machine is a kind of slurry special screening equipment independently developed by our company. This filter sieve machine has a single-layer screen structure, and the upper frame is designed to be open and elevated. The bottom frame and the vibrating body are connected as a whole, which reduces the consumption of the motor's excitation force, and has the advantages of large output and low power consumption.
Working Principle of Stainless Steel Ceramic Slurry Vibrating Filter Screen Machine:
The ceramic slurry vibrating screen adopted new type vertical motor which can make the movement into the three-dimensional motion, say horizontal, vertical and incline movement and then pass the movement to the screen surface. While adjusting the phase angle of hammers at upper and lower ends of motor, the movement path of material on the screen surface can be changed.
| Center of Gravity Angle | Main Usage | Effects |
| 0° | rough classification | the raw material flows from the center line to the circumferential direction |
| 15° | general screening | start the vortex motion |
| 45° | precision grading | the longest vortex motion |
| >90° | special purpose | raw materials concentrate to the center |
Purpose of Stainless Steel Ceramic Slurry Vibrating Filter Screen Machine:
1. Solid-liquid separation: this kind of device can be used in single, double; can be very effective for dealing with solid and liquid mixture rapidly for solid-liquid separation and filters to filter out different mesh material.
2. Impurity: Could be remove a lot of liquid fraction of miscellaneous materials of different sizes, and separated fast.
3. The filter is mainly used for the ceramic slurry filtration initial time. And now, it’s widely used for the high-throughput filtration.
| ♦Solid-liquid separation -Dewatering solids of liquids -Foods, chemicals, pulp |
♦ Solids classification in liquid medium -Separation of solids into sized fraction in liquid medium -Chemicals, minerals, pulp and paper, ceramics, waste disposal |
Features of Stainless Steel Ceramic Slurry Vibrating Filter Screen Machine:
1. Open design and no closed cover that can observe screened materials conveniently
2. Vibrations keep the mesh constantly free from residues and enable the machine to work 24/7, with brief operator interventions to clean the meshes on a periodic basis
3. It has large processing capacity within unit time
4. Screen mesh and motor have a long service life. Simple operation and easy maintenance. Fast replacement of screen (5~10 min)
5. Using new “Z” type screen frame by our own designed that effectively avoid the friction of the working mesh and supporting as traditional design
Technical Parameters of Stainless Steel Ceramic Slurry Vibrating Filter Screen Machine:
| Model | Power | Effective Diameter | Largest Vibration Force |
| AY-800 | 0.55KW | 800mm | 8KN |
| AY-1000 | 0.75KW | 970mm | 10KN |
| AY-1200 | 1.1KW | 1170mm | 15KN |
Note: The common voltage and frequency of this slurry Vibratory Separator is 380V, 50Hz, for other voltage or frequency, we could also customize vibration motor for you. In addition, we can manufacture this type of separator with 1-2 layers. The above-mentioned data is only for reference and the data may be changed subject to the model, mesh, material and the treatment volume in the alteration of features.
