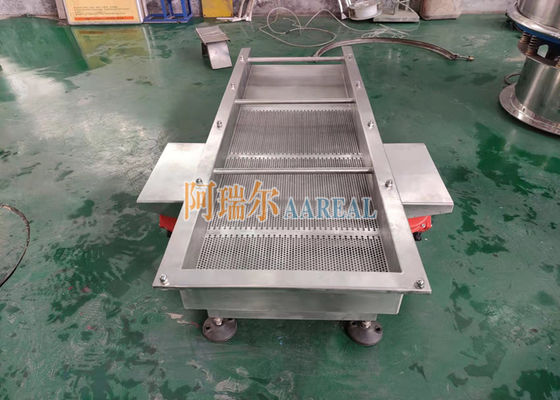

450*1500mm Food Grade Stainless Steel Linear Vibrating Screen For black soya bean

450*1500mm Food Grade Stainless Steel Linear Vibrating Screen For black soya bean

  • 450*1500mm Food Grade Stainless Steel Linear Vibrating Screen For black soya bean
  • 450*1500mm Food Grade Stainless Steel Linear Vibrating Screen For black soya bean
  • 450*1500mm Food Grade Stainless Steel Linear Vibrating Screen For black soya bean
450*1500mm Food Grade Stainless Steel Linear Vibrating Screen For black soya bean
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film for the machine, and fumigation-free plywood wooden case for the spare parts
Delivery Time: 20~30 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Features: Rubber Spring Supports And Isolates Vibration, Large Capacity, High Screening Efficiency Name: Linear Vibrating Screen, Rectangular Vibrating Screen, Rectangular Separator
Type: Open Type, Closed Type (optional) Screen Size: 450*1500mm (can Be Customized)
Layers Of Screen: 1~6 Layers Drive Device: Double Horizontal Vibrating Motors Or Vibration Exciter
Purpose: Mainly Used For Intermittent Operating Condition Or Small Capacity Of Screening Operation Application: Silica Sand ,sintering Carbon, Natural Ore, Coke And Abrasives, Chemical Raw Materials And Other Powder And Particle Material Of Highly Efficient Screening, And Dewatering, Medium-removal And Coal Dressing Operation

 450*1500mm Food Grade Stainless Steel Linear Vibrating Screen For Black Soya Bean



Introduction of 450*1500mm Food Grade Stainless Steel Linear Vibrating Screen For Black Soya Bean:

  450*1500mm Food Grade Stainless Steel Linear Vibrating Screen For Black Soya Bean is a classic and universal screening equipment.

  The movement track of the screen box is close to straight line. Almost all the linear vibrating machine are consisted of the screen box, supporting or hanging device, driving unit, vibration isolation etc.



Main Features of 450*1500mm Food Grade Stainless Steel Linear Vibrating Screen For Black Soya Bean:

1. Adopt energy saving vibration motor or vibrator as vibration source;

2. Small volume, light weight, easy to install and processing set-up;

3. The screen is assembled by the standard small pieces. Replacement is extremely convenient;

4. Rubber spring supports and isolates vibration, large capacity, high screening efficiency.



Open Type (ZSG-□×□): It is seat-type and no dust cover plate structure. Used for big screening capacity and no dust pollution of particle material screening.

Closed Type (ZSGB-□×□): It is seat-type and complete close structure. Used for big screening capacity and dust pollution of particle material screening.



Parameters of 450*1500mm Food Grade Stainless Steel Linear Vibrating Screen For Black Soya Bean:

Model

Feeding Size

(mm)

Capacity

(t/h)

Vibration Motor

Voltage

(V)

Power

(KW)

Vibration Frequency

(HZ)

Double Amplitude

(mm)

Effective Screening Area

(m2)

Weight

(kg)

Single Support Dynamic Load

(N)

ZSGB-09×18 ≤250 10-100 YZO-17-4 380 0.75*2 25 5-7 1.62 1960 900
ZSGB-10×20 10-180 YZO-20-6 2.0*2 16 6-8 2.0 2830 1300
ZSGB-12×24 10-200 YZO-30-6 2.5*2 2.88 3120 1620
ZSGB-10×30 15-250 YZO-30-6 2.5*2 3.0 3350 1850
ZSGB-15×30 20-350 YZO-50-6 3.7*2 4.5 4510 2810
ZSGB-15×40 30-500 YZO-75-6 5.5*2 6.0 5670 4650
ZSG2B-10×20 10-180 YZO-20-6 2.0*2 2.0 3170 1300
ZSG2B-12×24 10-200 YZO-30-6 2.5*2 2.88 3640 1620
ZSG2B-10×30 15-250 YZO-50-6 3.7*2 3.0 3870 1850
ZSG2B-15×30 20-350 YZO-50-6 3.7*2 4.5 5230 2810
ZSG2B-15×40 30-500 YZO-75-6 5.5*2 6.0 6630 4650
Note: the capacity in the table above shows the theoretical parameters when sieve mesh is more than 5mm and proportion is 1.6t/m3.



Working principle of 450*1500mm Food Grade Stainless Steel Linear Vibrating Screen For Black Soya Bean:

Rectangular vibration screen separators use double vibration motor as vibration source, the materials are rose and moved in the straight at the same time. The material are entered into entrance equality, and then go through screen to create the materials with different sizes, which was discharged, from different discharge ports.



High Efficiency Heavy Duty Linear Vibrating Screen Equipped with Vibration Exciter:

Model ZSGB-15×30 ZSGB-15×40 ZSGB-15×50
Screening Ability Particle Size (mm) ≤300 ≤300 ≤300
Capacity (t/h) 20~280 20~300 20~380
Motor Y132M1-6 Y132M2-6 Y132M2-6
Voltage (V) 380 380 380
Power (KW) 4.0*2 5.5*2 5.5*2
Vibration Frequency (Hz) 16 16 16
Double Amplitude 5~8 5~10 5~10
Vibration Exciter WJZZ-100-6 WJZZ-120-6 WJZZ-150-6
Ref. Weight (kg) 4800 5900 6700



450*1500mm Food Grade Stainless Steel Linear Vibrating Screen For Black Soya Bean450*1500mm Food Grade Stainless Steel Linear Vibrating Screen For Black Soya Bean
