Long Distance U Shape Trough Vibrating Conveyor In Chemical Industry

Long Distance U Shape Trough Vibrating Conveyor In Chemical Industry

  • Long Distance U Shape Trough Vibrating Conveyor In Chemical Industry
  • Long Distance U Shape Trough Vibrating Conveyor In Chemical Industry
Long Distance U Shape Trough Vibrating Conveyor In Chemical Industry
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~30 work days after order confirmed
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Type: U-shape Trough Vibration Type Characteristics: Large Conveying Capacity, Good Heat Insulation Effect, Low Power Consumption, Simple Structure, Easy Debugging, Easy Installation
Installation: Seat-type Installation Or Short-distance Suspension Installation Application: Used In Chemical, Metallurgy, Building Materials, Coal And Other Industries
Driving Device: 2 Vibrating Motors, Horizontal Installation Applicable Material: Suitable For Conveying All Kinds Of Powders, Granular, Lump And Mixtures With Temperature Below 300℃
High Light:

U Shape Trough Vibrating Conveyor

,

Chemical Industry Vibrating Conveyor

,

Chemical Industry u trough conveyor

Long Distance U-Shape Trough Vibrating Conveyor Used In Chemical Industry



Overview of Long Distance U-Shape Trough Vibrating Conveyor Used In Chemical Industry:

  Tubular Vibrating feeders are suitable for handling and dosing of free flowing bulk material with a max. grain size of 1/3 of the tube diameter. Especially when the conveying process has to be dust free, tubular vibrating feeders are an ideal solution due to their closed design, which also provides high standards of hygiene and cleanliness. For feeding poisonous and hazardous substances, vibrating tube conveyors / feeders are the industries preferred solution.



Features of Long Distance U-Shape Trough Vibrating Conveyor Used In Chemical Industry:

1. Dust free operation

2. Accurate, repeatable performance

3. Low maintenance – no internal moving parts, easy to clean
4. Explosion-proof certification available

5. Maintains material integrity



Main Technical Parameters of Long Distance U-Shape Trough Vibrating Conveyor Used In Chemical Industry:

Model Capacity (t/h) Conveying Distance (mm) Power (kw) Weight (kg)
AS-30-250 30 2500 2*0.4 410
AS-30-300 25 3000 2*0.4 490
AS-50-350 50 3500 2*0.75 650
AS-50-400 40 4000 2*0.75 740
AS-50-450 30 4500 2*0.75 840
AS-50-500 80 5000 2*1.5 1050
AS-50-550 70 5500 2*1.5 1150
AS-50-600 60 6000 2*1.5 1250
AS-50-650 50 6500 2*1.5 1350
AS-50-700 40 7000 2*1.5 1450
AS-50-750 30 7500 2*1.5 1550
AS-70-800 145 8000 2*2.2 2400
AS-70-850 135 8500 2*2.2 2550
AS-70-900 125 9000 2*2.2 2700
AS-70-900 110 9500 2*2.2 2850
AS-70-1000 100 10000 2*2.2 3000



Application Range of Long Distance U-Shape Trough Vibrating Conveyor Used In Chemical Industry:

The U-shape trough vibrating conveyor can be widely used in powder and granular materials transportation in metallurgy, coal, building materials, chemical, glass, electric power, machinery, food and other industries. The delivery volume and structure can also be designed according to user requirements.

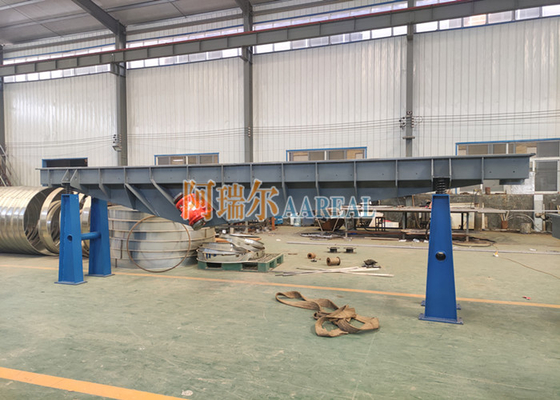

Long Distance U-Shape Trough Vibrating Conveyor Used In Chemical IndustryLong Distance U Shape Trough Vibrating Conveyor In Chemical Industry 1
