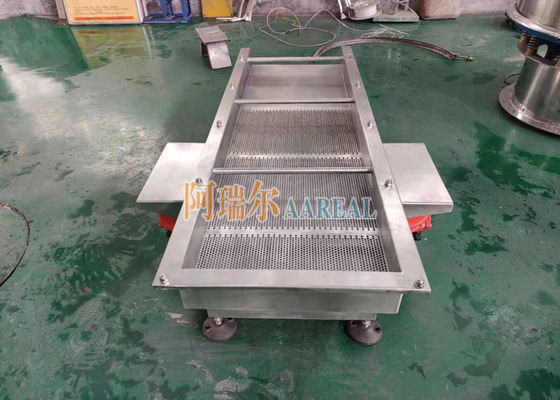

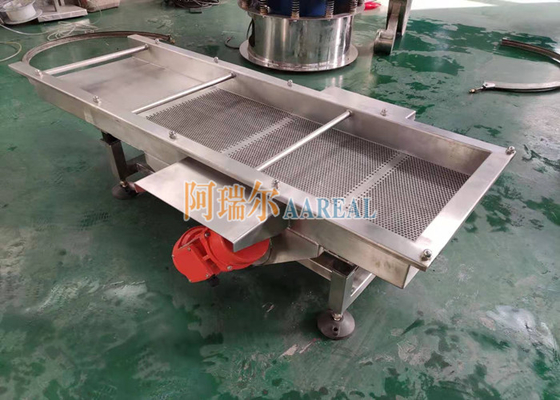

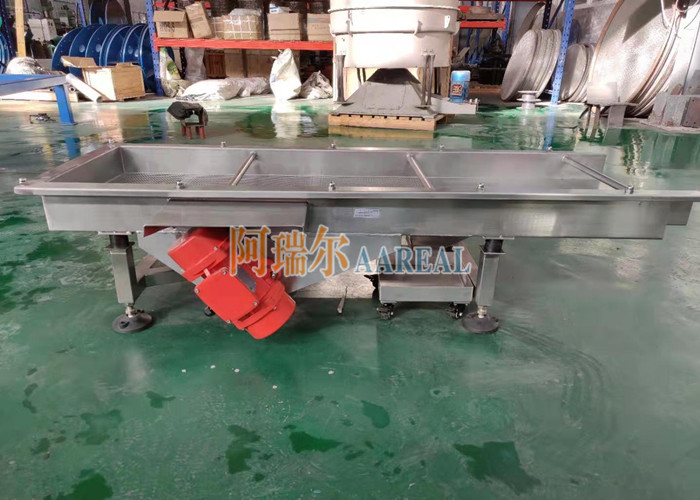

SUS 316L Food Grade Rectangular Linear Vibrating Screen Separator For Jelly Bean

SUS 316L Food Grade Rectangular Linear Vibrating Screen Separator For Jelly Bean

  • SUS 316L Food Grade Rectangular Linear Vibrating Screen Separator For Jelly Bean
  • SUS 316L Food Grade Rectangular Linear Vibrating Screen Separator For Jelly Bean
  • SUS 316L Food Grade Rectangular Linear Vibrating Screen Separator For Jelly Bean
SUS 316L Food Grade Rectangular Linear Vibrating Screen Separator For Jelly Bean
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for small size
Delivery Time: 20~30 workdays after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Motion: Linear Vibration Motion Layers Of Screen: 1~6 Layers Of Screen
Screen Structure: Wooden Frame, Carbon Steel Frame, Stainless Steel Frame, End-tensioned Screen Etc. Mesh Size: 0.074mm~15mm
Material: Stainless Steel, Carbon Steel, Titanium Materials Etc. Mesh Cleaning Machine: Rubber Balls, Ultrasonic Deblinding System Etc.
Optional: Quick-open Clamps, Pneumatic Lifting Device Etc. Power: (0.4KW~3.7KW) *2 Units
Surface Treatment: Spray Paint, Plastic Spraying, Mirror Polishing, Sand Blasting Etc. Application: Food Industry, Chemical Industry, Mining Industry Etc.
High Light:

SUS 316L Linear Vibrating Screen

,

Jelly Bean Linear Vibrating Screen

,

Jelly Bean rectangular vibrating screen

Stainless Steel 316L Food Grade Rectangular Linear Vibrating Screen Separator For Jelly Bean



Introduction of Stainless Steel 316L Food Grade Rectangular Linear Vibrating Screen Separator For Jelly Bean:

Stainless Steel 316L Food Grade Rectangular Linear Vibrating Screen Separator For Jelly Bean is a standard and universal linear-motion vibration type screening equipment. With low power consumption, large output, simple structure,easy maintenance, fully enclosed structure, no dust, automatic nesting, more suitable for pipeline operations. The linear vibrating sifter is the efficient new screening equipment widely used in food, building materials, refractory materials, mining, coal, metallurgy, light industry, chemical industry.



Application of Stainless Steel 316L Food Grade Rectangular Linear Vibrating Screen Separator For Jelly Bean:

1. Food industry: jelly bean, sugar, salt, milk powder, yeast powder, alkali, gourmet powder, starch, pollen, food additive, bean milk, juice, etc.
2. Mining industry: kaolin, alumina, carbon, quartz sand,titanium oxide, zinc oxide, etc.

3. Metallurgy industry: aluminum powder, lead powder, copper powder, ore, alloy powder ,electrode powder, manganese dioxide, electrolytic copper powder, electric magnetic material, polishing powder, refractory material, etc.

4. Chemical industry: medicine, grease, resin, pigment, paint, palette, cosmetic, etc.
5. Abrasive material and ceramic industry: mica, alumina, abrasive,refractory material, slurry, building sand, etc.
6. Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.
7. Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
8. Pollution treatment: waste oil, waste water,additives, activated carbon,etc.



Characteristics of Stainless Steel 316L Food Grade Rectangular Linear Vibrating Screen Separator For Jelly Bean:

1. Easy to repace screens and parts
Using a special grid structure design, the screens and parts can be easily changed and tighten.


2. High capacity and Friendly working space
With excellent structuer of machine and motors, the output is very high and working noise is low.


3. High sieving precision
The material has a long stroke on the screen surface, high screening precision and large processing capacity.


4. Movable screening process
At the same time of screening, the material has been transported over long distances.


5. Suitable for different screening sizes
Change the screen spacing and inclination according to material size, permeability probability and productivity


6. Flexible machine structures
Different shapes and structures can be designed according to the production site.


7. Good sealing and minimal dust spillage
Fully enclosed structure, automatic discharge lead to nearly zero rate of dust spillage.


8. Low maintenance cost and long service time
All parts of the screen body are welded properly with excellent steel plates,and the overall rigidity is good, firm and reliable for very long time.



Important Information About Stainless Steel 316L Food Grade Rectangular Linear Vibrating Screen Separator For Jelly Bean:

Model AZ-515, 520, 525, 1025, 1030, 1040, 1225, 1230, 1235, 1535, 1550 etc.
Shape rectangular shape
Motion linear vibrating motion
Structural Composition screen box, screens, vibration motor, motor base, damping spring, support etc.
Vibrating Motor two units of horizontal vibrating motors, synchronous reverse rotation
Applicable Material suitable for sieving 0.074mm~10mm non-sticky materials with moisture content less than 7%
Screen Surface Angle horizontal or inclined (0°~7°)
Layers of Screen 1~6 layers of screen (The higher layers can be customized according to the actual situation)
Screen Frame wooden screen frame, carbon steel screen frame, stainless steel screen frame, end-tensioned screen structure etc.
Mesh Cleaning Method bouncing balls, ultrasonic system etc.
Material stainless steel 304/316L, carbon steel, titanium material etc.
Screen Size screen width*length 500*2000mm, 500*2500mm, 1000*2000mm, 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*2500mm, 1200*3500mm, 1200*4000mm, 1500*3500mm, 1500*5000mm etc.
Application tea, chemical fertilizer, lysine, urea, sand, refractory material, plastic particle, organic fertilizer, limestone, fodder, feeding stuff etc.
Surface Treatment spray paint, mirror polishing, sand blasting, plastic spraying etc.



Working Principle of Stainless Steel 316L Food Grade Rectangular Linear Vibrating Screen Separator For Jelly Bean:

SUS 316L Food Grade Rectangular Linear Vibrating Screen Separator For Jelly Bean 0

  The rectangular separator adopts vibration motor excitation as the source of vibration, so that the material was tossed in the sieve,while forward in a straight line material evenly into the screening machine feeder feed port,multi-layer mesh specifications of sieve,sieve material,respectively,discharged from their exports.

  There are two ways to install the vibration motor of the linear screen:

1. Bilateral: Installed on both sides

2. Bottom mounted: Installed below (common used)



Structural Composition of Stainless Steel 316L Food Grade Rectangular Linear Vibrating Screen Separator For Jelly Bean:

The rectangular vibrating screens are mainly composed of screen box, screen frames, screen, vibration motor, electric pedestal, damping spring, frame and so on.

1. Screen box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.
2. Screen Mesh: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.

3. Vibration motor: the vibration motor use and maintenance method to see the vibration motor operating instructions.

4. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.

5. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, Especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.
6. Brackets: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.



Technical Parameters of Stainless Steel 316L Food Grade Rectangular Linear Vibrating Screen Separator For Jelly Bean:

Model Nominal Size (mm) Particle Size (mm) Leaning Angle of Screen (°) Amplitude (mm) Layer Power (Kw)
AZ-520 500*2000 0.074~10 0~7° 4~10 1~6 2*(0.4~0.75)
AZ-525 500*2500 2*(0.4~0.75)
AZ-530 500*3000 2*(0.4~0.75)
AZ-1020 1000*2000 2*(0.4~0.75)
AZ-1025 1000*2500 2*(0.4~1.1)
AZ-1030 1000*3000 2*(1.1~1.5)
AZ-1040 1000*4000 2*(1.1~1.5)
AZ-1225 1200*2500 2*(1.1~1.5)
AZ-1235 1200*3500 2*(1.1~2.2)
AZ-1250 1200*5000 2*(1.1~2.2)
AZ-1535 1500*3500 2*(1.1~2.2)
AZ-1560 1500*6000 2*(2.2~3.7)
AZ-1845 1800*4500 0.074~15 2*(2.2~3.7)
AZ-2050 2000*5000 2*(2.2~3.7)
AZ-2060 2000*6000 2*(2.2~3.7)

Note: The data in the table are for reference only. Our company reserve the right to modify the above data.



SUS 316L Food Grade Rectangular Linear Vibrating Screen Separator For Jelly Bean 1SUS 316L Food Grade Rectangular Linear Vibrating Screen Separator For Jelly Bean 2
