Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: LS/GX
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~30 work days after order confirmed
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Classification By Shape: U-shaped Trough Screw Conveyor, Tubular Screw Conveyor Classification By Conveying Angle: Horizontal Screw Conveyor, Inclined Screw Conveyor, Vertical Screw Conveyor
Classification By Conveying Form: Shaft Screw Conveyor, Shaftless Screw Conveyor Shaftless Screw Conveyor: Suitable For Conveying Sticky And Entangled Materials
Shaft Screw Conveyor: Suitable For Non-viscous Dry Powder Materials And Small Particle Materials Inapplicable Materials: Perishable, Sticky, And Agglomerated Materials
Characteristics: Simple Structure, Small Cross Section Size, Good Sealing, Reliable Work, Low Cost, Convenient For Intermediate Loading And Unloading Application: Suitable For Horizontal Or Oblique Conveying Of Powdery, Granular And Small Block Materials, Such As Coal Mines, Ash, Slag, Cement, Grain Etc.
High Light:

lightweight conveyor belt

,

bucket elevator conveyor



Horizontal Industrial Conveyor Systems Tubular Vibratory Feeder Low Maintenance



Overview of Industrial Tubular Trough Horizontal Screw Conveyor for Bulk Materials:

The Industrial Tubular Trough Horizontal Screw Conveyor for Bulk Materials is a widely used conveying equipment. There are two kinds of screw conveyors divided from conveying direction, one is horizontal screw conveyor, and another is vertical screw conveyor. The conveyor is used for loose materials such as all kinds of powders, granules and small blocks. Horizontal screw conveyor is the most widely used type of conveyor. It can convey bulk materials from one part of a process to another. Horizontal screw conveyor is available in a wide range of sizes, lengths, configurations and materials of construction.



Working Principle of Industrial Tubular Trough Horizontal Screw Conveyor for Bulk Materials:

Horizontal Industrial Conveyor Systems Tubular Vibratory Feeder Low Maintenance 0

  Screw conveyor makes use of rotating screw transfering materials along the fixed casing. The rotating spiral blade moves the material to perform screw conveyance, and the force that makes the material not rotate with the screw blade is the frictional resistance of the material's own weight and the screw conveyor casing to the material. Spiral blades are welded to the rotary shaft of the screw conveyor. The surface shape of the blade has solid surface type, belt surface type, blade surface type and other types according to the different materials being conveyed. The screw shaft of the screw conveyor has a thrust bearing at the end of the material moving direction to give the screw axial reaction force with the material. When the machine length is long, an intermediate hanging bearing should be added.



Main Features of Industrial Tubular Trough Horizontal Screw Conveyor for Bulk Materials:

1. Simple structure, small occupied space.

2. High reliability, low maintenance.

3. Easy to form the production line, can be connected with packaging equipment, storage equipment, mixing equipment or screening equipment.

4. Customized with hopper or running wheels and others.

5. Multiple feeding port and discharging port available.

6. Reliable sealing.

7. Economical to purchase, install and operate.



Classification of Industrial Tubular Trough Horizontal Screw Conveyor for Bulk Materials:

by Conveying Angle horizontal screw conveyor, inclined screw conveyor, vertical screw conveyor
by Conveying Form shaft screw conveyor, shaftless screw conveyor
by Shape U-shaped trough screw conveyor, tubular screw conveyor



Technical Parameter of Industrial Tubular Trough Horizontal Screw Conveyor for Bulk Materials:

LS Type 100 160 200 250 315 400 500 630 800 1000 1250
GX Type     200 250 300 400 500
Screw Diameter (mm) 100 160 200 250 315 400 500 630 800 1000 1250
Screw Pitch (mm) 100 160 200 250 315 355 400 450 500 560 630
Rotating Speed (r/min) 140 120 90 90 75 75 60 60 45 35 30
Conveying Capacity QΦ=0.33 (m3/h) 2.2 7.6 11 22 36.4 66.1 93.1 160 223 304 458
Power Pd 1=10m (KW) 1.1 1.5 2.2 2.4 3.2 5.1 4.1 8.6 12 16 24.4
Power Pd 1=30m (KW) 1.6 2.8 3.2 5.3 8.4 11 15.3 25.9 36 48 73.3
Rotating Speed (r/min) 120 90 75 75 60 60 45 45 35 30 20
Conveying Capacity QΦ=0.33 (m3/h) 1.9 5.7 18 18 29.1 52.9 69.8 125 174 261 305
Power Pd 1=10m (KW) 1.0 1.3 2.1 2.1 2.9 4.1 4.7 6.8 9.4 14.1 16.5
Power Pd 1=30m (KW) 1.5 2.3 4.5 4.5 7 8.9 11.6 20.4 28.3 42.2 49.5
Rotating Speed (r/min) 90 75 60 60 45 45 35 35 30 20 16
Conveying Capacity QΦ=0.33 (m3/h) 1.4 4.8 15 15 21.8 39.6 54.3 97 149 174 244
Power Pd 1=10m (KW) 0.9 1.2 1.9 1.9 2.5 3.4 4.3 5.4 8.1 9.5 13.3
Power Pd 1=30m (KW) 1.2 2.2 3.8 3.8 5.4 6.8 9.2 16 24.4 28.6 39.9
Rotating Speed (r/min) 75 60 45 45 35 35 30 30 20 16 13
Conveying Capacity QΦ=0.33 (m3/h) 1.2 3.8 11 11 17 31.7 46.5 73.0 99.3 139 199
Power Pd 1=10m (KW) 0.75 1.1 1.6 1.6 2.1 3.1 3.7 4.6 5.7 7.7 11
Power Pd 1=30m (KW) 1.1 1.8 3.4 3.4 4.4 5.6 8 14 16.7 23.2 33



Horizontal Industrial Conveyor Systems Tubular Vibratory Feeder Low Maintenance 1

Installation Size Table of Industrial Tubular Trough Horizontal Screw Conveyor for Bulk Materials:

Model W A B C D N Q Y L K R S P O H V J T G L
LS100 2500 100 180 146 10 4 180 190 90 112 180 112 60 178 120 160 14 163 1500
2000
2500
3500-40000
LS160 2500 160 240 206 10 4 200 190 112 150 200 150 60 270 120 160 14 190
LS200 3000 200 300 256 14 8 225 190 112 180 225 180 60 308 160 200 14 212
LS250 3000 250 350 306 14 8 250 190 140 224 250 224 60 336 200 250 18 240 40000-80000
LS315 3000 315 425 370 14 8 330 190 214 280 390 250 60 443 300 350 20 340
LS400 3000 400 500 456 14 8 350 190 224 355 390 280 60 533 320 400 24 384
LS500 3000 500 600 556 14 8 400 190 280 400 400 340 80 662 400 500 24 440 2000
3500
3500
5500-80000
LS630 3000 630 730 686 14 8 450 190 355 500 450 420 80 763 500 630 24 555
LS800 3000 800 920 868 18 16 550 340 450 630 550 520 80 970 632 800 30 650
LS1000 3000 1000 1120 1068 18 16 650 360 560 710 650 630 80 1190 710 1000 30 760 6000-60000
LS1250 3000 1250 1370 1318 18 16 800 380 710 800 800 760 80 1440 800 1250 30 910



Technical Parameters of Industrial Tubular Trough Horizontal Screw Conveyor for Bulk Materials:

Specification Main Technical Performance Driving Device Driving Device Weight
(kg)
Model Length
(mm)
Capacity
(cement)
(t/h)
Rotating Speed
min-1
Reducer Motor
Model Speed Ratio Power
(kw)
GX200 -10 9 60 ZQ250 23.34 1.1 726
GX200 -20 9 60 ZQ250 23.34 1.5 1258
GX250 -10 15.6 60 ZQ250 23.34 2.2 960
GX250 -20 15.6 60 ZQ250 23.34 3 1750
GX300 -10 21.2 60 ZQ350 23.34 3 1373
GX300 -20 21.2 60 ZQ350 23.34 4 2346
GX400 -10 51 60 ZQ400 23.34 5.5 1911
GX400 -20 51 60 ZQ500 23.34 11 2049
GX500 -10 87.5 60 ZQ400 23.34 7.5 2381
GX500 -20 87.5 60 ZQ650 23.34 18.5 5389
GX600 -10 134.2 45 ZQ750 23.34 22 3880
GX600 -10 134.2 45 ZQ850 23.34 55 7090





Application of Industrial Tubular Trough Horizontal Screw Conveyor for Bulk Materials:

  The screw conveyor is widely used in various industries, such as building materials, chemical industry, electric power, metallurgy, coal, grain etc. It is suitable for horizontal or inclined conveying powder, granulated and small lump materials, such as coal, ash, slag, cement, grain etc. Material temperature is less than 200℃.

Screw conveyor is not suitable for conveying materials those are perishable, big viscosity and easy to agglomerate.

If conveying angle of inclination is oversize, please choose the GX series screw conveyor.





Horizontal Industrial Conveyor Systems Tubular Vibratory Feeder Low Maintenance 2Horizontal Industrial Conveyor Systems Tubular Vibratory Feeder Low Maintenance 3

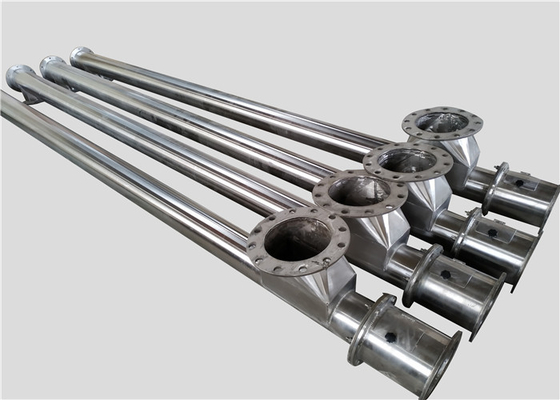

             GX Tubular Screw Conveyor        LS U-shaped Trough Screw Conveyor (Closed & Open)



Horizontal Industrial Conveyor Systems Tubular Vibratory Feeder Low Maintenance 4Horizontal Industrial Conveyor Systems Tubular Vibratory Feeder Low Maintenance 5

          Double Helix Screw Conveyor                    Multiple Discharge Holes Screw Conveyor



Horizontal Industrial Conveyor Systems Tubular Vibratory Feeder Low Maintenance 6Horizontal Industrial Conveyor Systems Tubular Vibratory Feeder Low Maintenance 7

                                                      Shaftless Screw Conveyor





Horizontal Industrial Conveyor Systems Tubular Vibratory Feeder Low Maintenance 8Horizontal Industrial Conveyor Systems Tubular Vibratory Feeder Low Maintenance 9

                        Inclined Screw Conveyor                           Vertical Screw Conveyor
