| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | ZWS |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic film for the machine, and fumigation-free plywood wooden case for the spare parts |
| Delivery Time: | 30~35 work days after order confirmed |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 sets per month |
| Features: | Only The Mesh Vibrates, The Screen Box Does Not Vibrate | Characteristics: | Minimal Dynamic Load, Small Footprint, Safe To Use, Easy To Maintain Etc. |
|---|---|---|---|
| Vibration Amplitude: | 1~2mm | Vibration Intensity: | 8~10g |
| Dip Angle: | 20°~35° | PLC Controller: | Yes |
| Function: | Grading, Screening, Dewatering And Desilting Of Fine Materials | Application: | Tailings Dry Dewatering, Ore Dressing, Compound Fertilizer Industry Etc. |
| High Light: | inclined vibrating screen,dewatering vibrating screen |
||

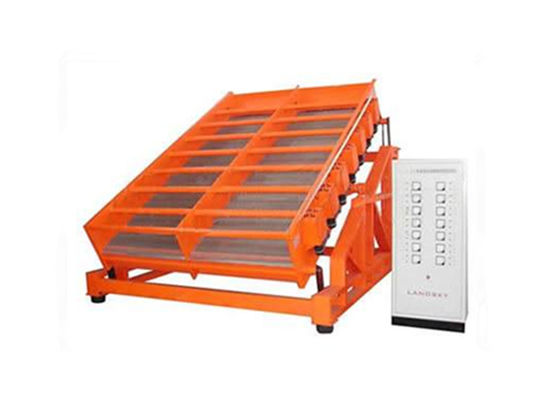

High Frequency Vibrating Screen Machine Electromagnetic Vibrating Equipment
Introduction of High Frequency Electromagnetic Vibrating Wire Cloth Screen Machine for Kaolin:
High Frequency Electromagnetic Vibrating Wire Cloth Screen Machine for Kaolin has a strong adaptability in grading size and has a relative accuracy in the control of particle size. The high frequency play an important role in fine classification and has now become the mainstream of fine grading equipment. Compared with mechanical high frequency screen, electromagnetic high-frequency screen not only delivers the vibration but also plays a role in clearing network for its unique exciting way transforming vibration by hitting the screen, so the electromagnetic high-frequency screen has the obviously advantages in the same type equipment, which has fully embodied in the applications of practice. In addition, because the screen frame of the electromagnetic screen does not move, it is easy to realize the large scale in the structure. The single screen surface area can reach 30 m2, and the electromagnetic high frequency vibrating screen will be the developing trend of fine grading equipment.
The key to the high frequency vibrating wire mesh screening machine is the high frequency, low amplitude vibration of the wire cloth. The vibration is generated the Vibrating Drive motors mounted on isolated motor mounts. This is done at the center of the wire cloth where most of the material is located, not on the sides of the wire cloth. The vibration is not to convey the material, as this is accomplished by the inclined angle of the screen and the momentum of the particles. The vibration is to differentiate the particle sizes and improve the efficiency of the screening process in the short amount of time that the material is sliding along the screen surface. For the size particles that are used for most granular products, the small amplitude and high frequency is the most effective.
Working Principle of High Frequency Electromagnetic Vibrating Wire Cloth Screen Machine for Kaolin:
The High Frequency Vibrating Wire Mesh Screen Machine is applicable to the fine particles sperating of ore grinding and grading production line in concentrating mill, in the condition of suitbal feeding desinty and feeding granularity(-200 mesh), when the difference of demand granularity and feeding granularity is below 30%,then the screening efficiency could be up to 70% above. . Because of it's high screening efficiency, the recycle load and qualified grade levels of the screening materials could be reduced, consequently,the handling capacity of the mill mahcine will be improved by 5%-10%. In the grading and sieving process, the machine can strictly contrlo the granularity size so as to improve the sieving quality. Besides,it also has the funtion of delamination upon the desinty when the ore pulp on effect of small amplitude vibration of the screen surface. The high desinty and small granularity is easy to subside to the screen surface so as to improve the sieving quality.
Technical Parameters of High Frequency Electromagnetic Vibrating Wire Cloth Screen Machine for Kaolin:
| Model | Screen Area (㎡) | Working Frequency (Hz) |
Screen Slope ( °) |
Power (Kw) |
Weight (Kg) | Reference Size (including maintenance platform) L*W*H (mm) |
| 2ZWS1518-D-II | 2×2.7 | 50 | 20;25;30;35 | 1.8 | 4300 | 3603*3824*2856 |
| 3ZWS1518-D-II | 3×2.7 | 50 | 20;25;30;35 | 2.7 | 5500 | 4348*3824*3390 |
| 2ZWS2018-S-II | 2×3.6 | 50 | 20;25;30;35 | 3.6 | 5300 | 3649*4456*2830 |
| 3ZWS2018-S-II | 3×3.6 | 50 | 20;25;30;35 | 5.4 | 8000 | 4348*4456*3300 |
| 4ZWS2018-S-II | 4×3.6 | 50 | 20;25;30;35 | 7.2 | 10900 | 4829*4450*3900 |
| 2ZWS2020-S-II | 2×4.0 | 50 | 20;25;30;35 | 3.6 | 5500 | 3750*4456*2814 |
| 3ZWS2020-S-II | 3×4.0 | 50 | 20;25;30;35 | 5.4 | 8400 | 4575*4456*3305 |
| 4ZWS2020-S-II | 4×4.0 | 50 | 20;25;30;35 | 7.2 | 11500 | 5220*4456*3996 |
| 2ZWS2418-S-II | 2×4.32 | 50 | 20;25;30;35 | 3.6 | 5700 | 3649*4766*2856 |
| 3ZWS2418-S-II | 3×4.32 | 50 | 20;25;30;35 | 5.4 | 8600 | 4348*4766*3297 |
| 4ZWS2418-S-II | 4×4.32 | 50 | 20;25;30;35 | 7.2 | 11700 | 4829*4766*3832 |
| 2ZWS2420-S-II | 2×4.8 | 50 | 20;25;30;35 | 3.6 | 5900 | 3750*4766*2835 |
| 3ZWS2420-S-II | 3×4.8 | 50 | 20;25;30;35 | 5.4 | 9000 | 4575*4766*3300 |
| 4ZWS2420-S-II | 4×4.8 | 50 | 20;25;30;35 | 7.2 | 12300 | 5220*4766*3900 |
Features of High Frequency Electromagnetic Vibrating Wire Cloth Screen Machine for Kaolin:
1. Large processing capacity and high screening efficiency.
2. The vibrator is lubricated with bearing thin oil and external block eccentric structure. It has the characteristics of large excitation force, small bearing load, low temperature and low noise. (The bearing temperature rise is less than 35°).
3. The whole disassembly and assembly of the vibrator is convenient for maintenance and replacement, which greatly shortens the maintenance period. (It takes only 1 to 2 hours to change the vibrator).
4. The side plate of the sieve machine adopts the whole plate cold work, no welding, high strength and long service life. The connection between the beam and the side plate is connected by torsion-cutting high-strength bolts, without welding, and the beam is easy to replace.
5. The sieve machine adopts rubber spring to reduce vibration, and has the advantages of low noise, long service life, stable over-common vibration zone and small dynamic load of each branch of the sieve machine.
6. The motor and the exciter are connected by a flexible coupling, which has the advantages of long service life and small impact on the motor.
Application of High Frequency Electromagnetic Vibrating Wire Cloth Screen Machine for Kaolin:
The High Frequency Vibrating Wire Screen Machine can be widely used in pharmaceutical, alkali, mineral processing, brick, fertilizer, coal preparation, chemical, food, paper and other industries in a variety of dry materials, wet screening, grading, dehydration. For the fine grading process in the ore dressing grading process, the difference between the appropriate feed concentration, the feed particle size (-200 mesh grade), and the difference between the particle size and the feed size of the demand sieve is less than 30 percentage points Conditions, the screening efficiency as high as 70% or more.
