Horizontal Rectangular Vibrating Screen Stainless Steel For Lead Zinc Tailings

Horizontal Rectangular Vibrating Screen Stainless Steel For Lead Zinc Tailings

  • Horizontal Rectangular Vibrating Screen Stainless Steel For Lead Zinc Tailings
  • Horizontal Rectangular Vibrating Screen Stainless Steel For Lead Zinc Tailings
Horizontal Rectangular Vibrating Screen Stainless Steel For Lead Zinc Tailings
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: ATE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film for the machine, and fumigation-free plywood wooden case for the spare parts
Delivery Time: 30~35 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Motion: Linear Vibrating Motion Purpose: Dehydration, Deintermediation, Desilting Etc.
Dip Angle: -2~10 Degrees Screen Mesh: Stainless Steel Or Manganese Steel Woven Wire Mesh, Polyurethane Screen Mesh Etc.
Electric Driver: Horizontal Vibrating Motors, Vibrating Exciters Etc. Application: Urban Sewage, Industrial Sewage, River Sludge Slime Dewatering, Soil Repaire Etc.
High Light:

dewatering vibrating screen

,

material screening equipment

Horizontal Rectangular Vibrating Screen Stainless Steel For Lead Zinc Tailings



Introduction of High Efficiency Horizontal Vibrating Dewatering Screen for Lead-zinc Tailings:

High Efficiency Horizontal Vibrating Dewatering Screen for Lead-zinc Tailings have been designed for the tough conditions of the mining and minerals processing industries. Our dewatering screens are custom-built solutions, designed to fully integrate into existing plant layouts or perfectly meet the needs of specific applications. The dewatering screens have a proven track-record in mineral processing applications including sizing, fines-removal, drain-and-rinse and dewatering of feed-stock.



Technical Parameters of High Efficiency Horizontal Vibrating Dewatering Screen for Lead-zinc Tailings:

Model Screen Surface Area
(m2)
Mesh Size
(mm)
Screen Mesh Structure Feeding Size
(mm)
Capacity
(t/h)
Vibration Frequency
(min-1)
Double Vibration Amplitude
(mm)
Power
(kw)
Vibrating Direction Angle
(°)
Overall Size
(mm)
926 2.34 0.25-50

Stainless steel

woven mesh



Perforated plate



Stainless steel seam welded mesh

≤150 1.5-100 960 6-10 2*1.5 45 2740*1340*1520
1030 3 2-120 8-10 2*2.2 3140*1440*1680
1230 3.6 3-180 8-10 2*2.2 3140*1640*1680
1540 6 5-250 8-12 2*3.0 4140*1940*1790

Note: We reserve the right to modify the above data.



Characteristics of High Efficiency Horizontal Vibrating Dewatering Screen for Lead-zinc Tailings:

1. Large Capacity:
V-screen design, -5 degrees screen surface slope dewatering, dewatering screen with low water, high efficiency, large capacity per unit area.



2. Waterproof Motor:
Waterproof proper frequency dedicated motor, double motor-driven self-synchronization technology , to achieve efficient of dewatering.

3. High Strength and Durable Structure:
Rigid-welded steel components assembly, constitute the machine body with no internal stress, high strength, light and durable.

4. Continuous Dewatering Operation:
Professional design of the frequency, amplitude, low-power source for a variety of dewatering needs 24-hour continuous operation.

5. Low Cost Investment:
Compared with the traditional process, our company new-type dry-line dewatering process has the advantages of small investment, simple process and small area, which is convenient for the system process layout.



6. Long Service Life:
High wear-resistant screen plate long life, modular assembly design, easy replacement, cost savings, screen mesh size can be selected according to requirements.



Horizontal Rectangular Vibrating Screen Stainless Steel For Lead Zinc Tailings 0Horizontal Rectangular Vibrating Screen Stainless Steel For Lead Zinc Tailings 1

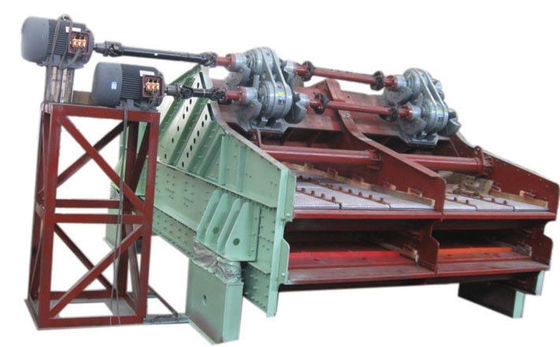

                   Vibration Exciter Type                                           Vibration Motor Type



Working Principle of High Efficiency Horizontal Vibrating Dewatering Screen for Lead-zinc Tailings:

  The dewatering screen adopts dual-motor self-synchronization technology. The motors coordinate with universal eccentric and adjustable amplitude vibrator. When the two motors start to work, the vibrators move reversely at the same time. The centrifugal forces is generated by the eccentric blocks will superpose themselves and form a single direction vibration. The high frequency vibration drives the screen move back and forth in line repeatedly. So the sand can be dehydrated and filtered.



Some Tips When You Order Our High Efficiency Horizontal Vibrating Dewatering Screen for Lead-zinc Tailings:

1. When selecting and ordering, the user should determine the arrangement of the sieve and screen seam size. If they do not make a decision, we supply the machine according to the right-type screen seam 0.5mm arrangement. (The motor is installed on the left or right side of the material flow direction.)

2. The screen structure (weaving, punching, wedge-bar), mesh size, processing capacity, material name and feeding particle size should be indicated in the selection and ordering by the user.

3. When the forced synchronization is adopted, the motor can be installed on the left or right. User must state when ordering.

4. The dip angle of the screen surface can be adjusted from -2 to 10 degrees. Other angles can be adjusted by the user.



Application of High Efficiency Horizontal Vibrating Dewatering Screen for Lead-zinc Tailings:

Quartz sand, zircon sand, glass sand, building sand, sand casting, building materials sand, potash feldspar dehydration

Slime dewatering, soil repaire

Urban sewage, industrial sewage, river sludge
Mud treatment, construction mud, drilling mud treatment

Iron tailings, gold tailings, copper tailings, vanadium tailings, lead-zinc tailings, graphite tailings
