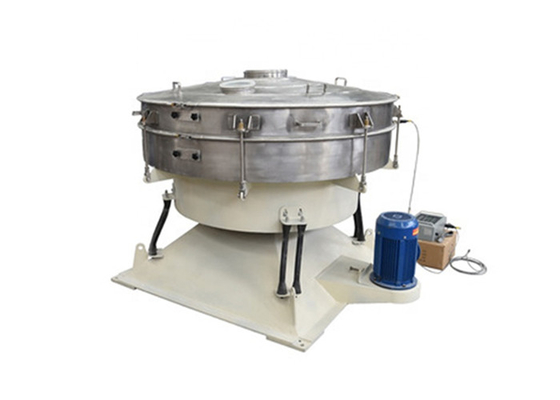

Animal Feed Tumbler Screener Circular Vibrating Screen Separator Light Weight

Animal Feed Tumbler Screener Circular Vibrating Screen Separator Light Weight

  • Animal Feed Tumbler Screener Circular Vibrating Screen Separator Light Weight
  • Animal Feed Tumbler Screener Circular Vibrating Screen Separator Light Weight
Animal Feed Tumbler Screener Circular Vibrating Screen Separator Light Weight
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AM
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~35 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Features: High Accuracy, Dust-proof, Large Capacity, Long Screen Service Life Etc. Movement: Simulate Artificial Screening Motion
Screening Accuracy: High Upto 90%~99.9% Layers Of Screen: 1~5 Layers Of Screen
Diameter: 600mm~2300mm Mesh De-blinding: Bouncing Balls, Air Brush, Rolling Brush, Ultrasonic De-blinding System Etc.
Material: Stainless Steel 304, 316L, Carbon Steel Etc. Application: Silica Sand, Refractory, Kaolin, Glass Powder Etc.
High Light:

Animal Feed Tumbler Screener

,

Circular Tumbler Screener

,

Animal Feed Vibrating Screen Separator

Animal Feed Tumbler Screener Circular Vibrating Screen Separator Light Weight



Introduction of Carbon Steel High Yield Tumbler Screening Sieve Machines for Animal Feed:

Carbon Steel High Yield Tumbler Screening Sieve Machines for Animal Feed is also well known as the tumbling screen machine, tumbler screener, rocking screener, swinging sieve etc.

  It is a kind of inertial equipment with mature technology and classical application.Its new design Philosophy and unique structure making it the closest manual screen machine. The Tumbler screening machine have bright application prospects for its perfect screening effect. From the aspect of its trajectory, it is a non-linear inertial vibrating screen. The Tumbler screening machine is particularly used to classify small materials and fine powder according to its unique structure and working principle. It is not only apply to dry sieving, but also wet sieving.



Characteristics of Carbon Steel High Yield Tumbler Screening Sieve Machines for Animal Feed:

1. Ingenuity: Circular building block assembly structure, small volume, light weight. Easy to install and disassemble.
2. Can add many kinds of the self-cleaning device to the screen surface. Can avoid blocking the screen. There are five kind of self-cleaning device for you to choice: bouncing ball, Rolls brushes, jet type, elastic scraper, ultrasonic.

3. No environment pollution: Fully closed structure, almost no let out of material dust.

4. High screening accuracy: It can imitate the screening action and process of manual operation effectively. Make the material walk a long distance on the screen surface, improve the screening accuracy.

5. High capacity: The unit area capacity is five times bigger than other screen.
6. Long service life: Low frequency, small load, so low load to the screen, can be used for long time.
7. Use brand motor as power source:with longer service life.
8. Low noise: The noise < 75db



Important Information About Carbon Steel High Yield Tumbler Screening Sieve Machines for Animal Feed:

Motion involute spiral motion, imitate the manual screening action
Screening Accuracy upto 90%~99.9%
Diameter 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1600mm, 1800mm, 2000mm, 2300mm, 2600mm etc.
Mesh Cleaning Method bouncing ball cleaning, ultrasonic de-blinding system, brush cleaning, air cleaning, ultrasonic air cleaning, air brush cleaning
Screen Structure whole adhesive screen, or splicing segmented screen etc.
Layers of Screen 1~5 layers of screen
Diameter 600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm, 2000mm, 2100mm, 2300mm, 2600mm, 2900mm etc.
Advantages soft rock screening will not destroy the particles original structure of the material and not easy to produce static electricity
Optional pneumatic lifting devices, quick clamps etc.
Application can be widely used for material that is flammable, explosive and easy to generate static
Motor Brand ABB, Siemens, BEGEMA etc.
Surface Treatment polishing, sandblast, paint spraying etc.



Technical Parameters of Carbon Steel High Yield Tumbler Screening Sieve Machines for Animal Feed:

Animal Feed Tumbler Screener Circular Vibrating Screen Separator Light Weight 0

Model Screen Area (m²) Layers of Screen Motor Power (KW)
AM-600 0.28 1~5 0.25
AM-1000 0.72 1~5 1.5
AM-1200 1.10 1~5 1.5
AM-1500 1.80 1~5 2.2
AM-1800 2.30 1~5 4.0
AM-2000 2.60 1~5 4.0
AM-2300 3.90 1~5 4.0
AM-2600 5.30 1~5 5.5
AM-2900 6.40 1~5 5.5



Working Principle of Carbon Steel High Yield Tumbler Screening Sieve Machines for Animal Feed:

1. Basic rotary motion is similar to manual screening.Eccentricity is adjustable from 25 to 40mm, and low-speed v-type belt drive is adjustable from 120 to 360rpm
2. The residence time of each product can be adjusted in the direction of the driving axis through the radial direction and tangential Angle of the swinging screen
3. Therefore, the horizontal and three-dimensional tumbling motion is established.Materials are evenly dispersed from the center to the outer edge on the entire screen surface, thus spreading in a spiral motion to the axial direction.Fine particles thus complete the whole screening process.
4. The horizontal and vertical accelerations increase with the movement of the particles, and the particles close to the size of the mesh are then separated successfully; Larger particles are transported to the outlet, where the flow is controlled by an adjustable guide, another factor controlling the retention time of the material.
5. The process is repeated between each sieve layer.



Animal Feed Tumbler Screener Circular Vibrating Screen Separator Light Weight 1Animal Feed Tumbler Screener Circular Vibrating Screen Separator Light Weight 2

Animal Feed Tumbler Screener Circular Vibrating Screen Separator Light Weight 3Animal Feed Tumbler Screener Circular Vibrating Screen Separator Light Weight 4

              BALANCE IS IMPORTANT !!                               Pneumatic Lifting Device



Application of Carbon Steel High Yield Tumbler Screening Sieve Machines for Animal Feed:

1. Mechanical industry: casting sand, charcoal, grafito, powder metallurgy, electromagnetic material and metal powder, etc
2. Paper-making industry:coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.

3. Chemical industry: resin pigment, calcium carbonate, decorative coatings, medicine, grease, paint, palette, etc.

4. Abrasive material and ceramic industry: building sand, mica, alumina, silica sand, abrasive, refractory material, slurry, etc.
5. Food industry: sugar, salt, alkali, flour powder, nut powder, farina, gourmet powder, starch, milk powder, yeast powder,
pollen,food additive, bean milk, juice, etc.

6. Metallurgy and mining industry: quartz sand, sand, ore, titanium oxide, zinc oxide, etc.



Animal Feed Tumbler Screener Circular Vibrating Screen Separator Light Weight 5Animal Feed Tumbler Screener Circular Vibrating Screen Separator Light Weight 6
