| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | AM |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for export |
| Delivery Time: | 20~35 work days after order confirmed |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 sets per month |
| Screening Accuracy: | 90%~99% | Diameter: | 600mm~2300mm |
|---|---|---|---|
| Characteristics: | Not Generate Static Electricity, No Damage To Material Structure | Movement: | Involute Spiral Tumbling Motion |
| Layers Of Screen: | 1~5 Screen Decks | Mesh Cleaning Method: | Ultrasonic System, Balls, Rolling Brush, Air Brush Etc. |
| Motor: | General Motor, Explosion-proof Motor Optional | Optional Design: | Quick Clamps, Pneumatic Lifting Devices Etc. |
| High Light: | Fine Materials Vibro Separator Machine,Fine Materials tumbler screener,2300mm Vibro Separator Machine |
||

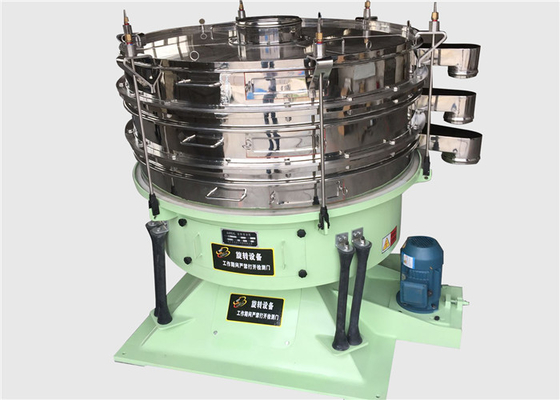

Multiple Deck Vibro Separator Machine Fine Materials Grading Tumbler Sieve
Introduction of Multiple Deck Large Output Tumbler Screen Machine for Fine Materials Grading:
The Tumbler Screen's imitation artificial design principle is a specially designed high-efficiency screening machine to meet the needs of high output and high-precision screening. It is currently the most effective method for simulating the artificial sieving movement.
Features of Multiple Deck Large Output Tumbler Screen Machine for Fine Materials Grading:
Working Principle of Multiple Deck Large Output Tumbler Screen Machine for Fine Materials Grading:
Basic rotary motion is similar to manual screening. Eccentricity adjustable from 25 to 40mm, low-speed V-belt drive adjustable from 120 to 360rpm. The residence time of each product can be adjusted in the direction of the drive axis by the radial and cut angles of the oscillating screen. Therefore establish level and throw 3D tumbling motion. The material is evenly dispersed across the entire screen surface from the center to the outer edge, so that it propagates axially in a spiral motion. Fine particles thus complete the entire screening process. The horizontal and vertical accelerations increase with the movement of the particles, and the particles close to the mesh size are successfully separated; the larger particles are transported to the exit, and the flow is controlled by an adjustable guide at the exit. The guide is controlled. Another factor of material residence time. This process is repeated between each sieve layer.
Important Information About Multiple Deck Large Output Tumbler Screen Machine for Fine Materials Grading:
| Motion | involute spiral motion |
| Screening Accuracy | upto 90%~99.9% |
| Mesh Cleaning Method | bouncing ball cleaning, ultrasonic cleaning, brush cleaning, air cleaning, ultrasonic air cleaning, air brush cleaning |
| Screen Structure | whole adhesive screen, or splicing segmented screen etc. |
| Layers of Screen | 1~5 layers of screen |
| Diameter | 600mm, 1000mm, 1200mm, 1400mm, 1500mm, 1600mm, 1800mm, 2000mm, 2100mm, 2300mm, 2600mm, 2900mm etc. |
| Advantages | soft rock screening will not destroy the particles original structure of the material and not easy to produce static electricity |
| Optional | quick clamps, pneumatic lifting devices etc. |
| Application | can be used for material that is flammable, explosive and easy to generate static |
| Motor Brand | Siemens, ABB, BEGEMA etc. |
BALANCE IS IMPORTANT !! Pneumatic Lifting Device
Technical Parameters of Multiple Deck Large Output Tumbler Screen Machine for Fine Materials Grading:
| Model | Screen Area (m²) | Layers of Screen | Motor Power (KW) |
| AM-600 | 0.28 | 1~5 | 0.25 |
| AM-1000 | 0.72 | 1~5 | 1.5 |
| AM-1200 | 1.10 | 1~5 | 1.5 |
| AM-1500 | 1.80 | 1~5 | 2.2 |
| AM-1800 | 2.30 | 1~5 | 4.0 |
| AM-2000 | 2.60 | 1~5 | 4.0 |
| AM-2300 | 3.90 | 1~5 | 4.0 |
| AM-2600 | 5.30 | 1~5 | 5.5 |
| AM-2900 | 6.40 | 1~5 | 5.5 |
Application of Multiple Deck Large Output Tumbler Screen Machine for Fine Materials Grading:
The tumbling screener machine is particularly used to classify small materiels and fine powder according to its unique structure and working principle. It is not only apply to dry sieving, but also wet sieving.Widely used in various industries, such as chemical, food and spices, plastics, mining, medicine, wood and plywood, metallurgy, rubber, fodder, fertilizer, sugar, salt, renewable industry etc.
