| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic film for the machine, and fumigation-free plywood wooden case for the spare parts |
| Delivery Time: | 30~35 work days after order confirmed |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 sets per month |
| Other Names: | Rotary Screen, Rotary Sifter, Drum Screen, Revolving Screen, Cylinder Round Sifter, Trommel Screen, Etc. | Moving Trajectory: | Rotary Centrifugal Motion |
|---|---|---|---|
| Angle Of Inclination: | 5°~7° | Mesh De-blinding: | Self-cleaning, No Need To Use Rubber Balls |
| Material: | Carbon Steel, Stainless Steel 304, 316L Etc. | Motor: | Siemens Or Other Brands |
| Voltage: | 380V/3-Ph/50HZ Or At The Client's Requirement | Application: | Organic Fertilizer, Gold Washing, Sand, Wood Chips Etc. |
| High Light: | air classifier machine,rotary trommel screen |
||

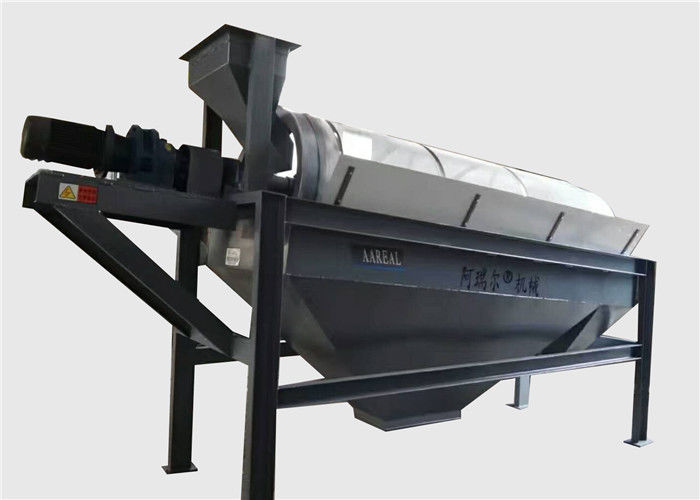

High Efficiency Rotary Trommel Screen Cylinder Round Sifter For Compost
Introduction of High-efficiency Rotary Trommel Cylinder Round Sifter for Compost:
High-efficiency Rotary Trommel Cylinder Round Sifter for Compost provides a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing. Our Rotary Trommel Screen are constructed of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance This material out from the Trommel Screen is then passed on to the downstream process equipment which can be in various forms such as centrifugal Concentrator, spirals, jigs etc.
Some Important Information About High-efficiency Rotary Trommel Cylinder Round Sifter for Compost:
| Other Names | rotary screen, rotary sifter, trommel screen, drum screen, revolving screen, cylinder round sifter etc. |
| Movement | rotary centrifugal movement |
| Power Source | general motor and reducer |
| Type | with shaft, shaftless |
| Angle of Inclination | 5°~7° |
| Material | carbon steel, stainless steel 304, 316L |
| Advantages | overcome the screen mesh plugging problem caused by circular vibrating screen and linear screen in the process of screening wet materials |
| Features | have strong adaptability to materials. Material that is sticky, with high humidity, dirty and miscellaneous can be screened |
| Application | Organic fertilizer, compound fertilizer, sand, gold, quicklime, refractory materials, coal, wood chips etc. |
Working Principle of High-efficiency Rotary Trommel Cylinder Round Sifter for Compost:
Trommel screen provides a simple, efficient and economical solution to upgrade a wide range of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.
The rotary screens are constructed of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance.
This material is then passed on to the downstream process equipment which can be in various forms such as centrifugal Concentrator, spirals, jigs etc.
After the materials are fed into the drum, the materials are classified, while the bigger materials flow forward along the inclination of drum and was classified through different mesh screens gradually. Classified small materials fell into respective bunker, and are delivered into finished product stack through manpower or belt conveyor.
Material Running State in the Rotary Screen
Structural Composition of High-efficiency Rotary Trommel Cylinder Round Sifter for Compost:
1. driving device 2. coarse material discharge opening 3. seal cover
4. drum body 5. undersize material discharge opening 6. retaining plate
7. feed inlet 8. bracket
Features of High-efficiency Rotary Trommel Cylinder Round Sifter for Compost:
1. Economical and efficient classification, Screening
2. Screen replaceable for different mesh sizes
3. Multiple screen size
4. Easily changed screen plates
5. Large capacity
6. Unique design with higher capacity & no clogging
7. Heavy duty feed hopper and extension
8. Gear drive mechanism
9. Variable speed drive mechanism
Technical Parameters of High-efficiency Rotary Trommel Cylinder Round Sifter for Compost:
| Model |
Capacity (t/h) |
Screen Drum Diameter (mm) |
Length (m) |
Motor Power (KW) |
| GTS600 | 5-10 | 600 | 1000 | 1.5 |
| GTS800 | 8-15 | 800 | 1200 | 2.2 |
| GTS1000 | 15-30 | 1000 | 1500 | 3 |
| GTS1200 | 20-50 | 1200 | 1800 | 5.5 |
| GTS1500 | 40-80 | 1500 | 2000 | 7.5 |
| GTS1800 | 80-150 | 1800 | 2000 | 11 |
| GTS2000 | 130-200 | 2000 | 2500 | 11 |
Application of High-efficiency Rotary Trommel Cylinder Round Sifter for Compost:
1. Food industry: sugar powder, monosodium, starch, salt, milk powder, egg powder, rice powder, bread crumbs, soy milk, sauce, juice, food additive, etc.
2. Metal , metallurgy industry: copper powder, nickel powder, aluminum powder, ceruse, ore alloy powder, welding powder, battery material, abrasive powder, fire proof material, alumina.
3. Chemical industry: fertilizer, detergent powder , talcum powder, talcum powder, dyestuff, rubber, resin, pigment, industrial medicine, cosmetic, coatings, Chinese medicine powder.
4. Other industry: paper-making industry , ceramic industry, mining industry, pharmaceuticals industry etc.
