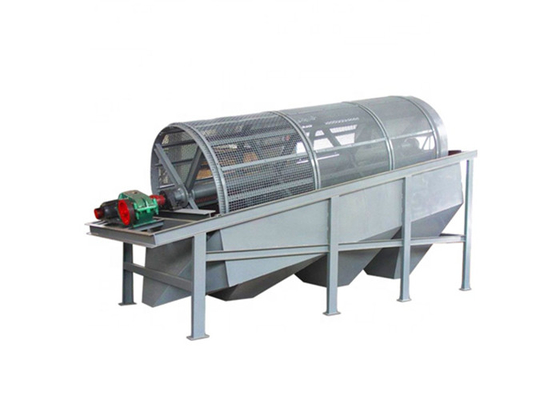

316l Stainless Steel Trommel Drum Screen Separator Machines For Wood Chips

316l Stainless Steel Trommel Drum Screen Separator Machines For Wood Chips

  • 316l Stainless Steel Trommel Drum Screen Separator Machines For Wood Chips
  • 316l Stainless Steel Trommel Drum Screen Separator Machines For Wood Chips
316l Stainless Steel Trommel Drum Screen Separator Machines For Wood Chips
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film for the machine, and fumigation-free plywood wooden case for the spare parts
Delivery Time: 30~35 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Alternative Names: Rotary Screen, Rotary Sifter, Trommel Screen, Drum Screen, Revolving Screen, Cylinder Round Sifter Etc. Moving Trajectory: Rotary Centrifugal Motion
Segment: 1~4 Segment Angle Of Inclination: 5°~7°
Material: Carbon Steel, Stainless Steel 304, 316L Etc. Mesh De-blinding: Self-cleaning, No Need To Use Balls
Application: Limestone, Sand, Wood Chips, Compound Fertilizer Etc. After-sales Service: Online And Video Technical Support, Overseas Service
High Light:

air classifier machine

,

rotary sifter machine



316l Stainless Steel Trommel Drum Screen Separator Machines For Wood Chips



Introduction of Large Capacity Rotary Trommel Screen Separator Machines for Wood Chips:

Large Capacity Rotary Trommel Screen Separator Machines for Wood Chips provides a simple, efficient and economical solution to upgrade a wide range of material and optimizes the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost to increase product quality, while allowing rapid and large volume processing. This kind of sieve machine is well known for its large processing capacity of compound fertilizer. And this machine is also a good choice for the classification of refractory materials, coal, sand, sandstone block, limestone, metallic or non-metallic minerals etc.





Technical Parameters of Large Capacity Rotary Trommel Screen Separator Machines for Wood Chips:

Model

Capacity

(t/h)

Screen Drum Diameter (mm)

Length

(m)

Motor Power (KW)
GTS600 5-10 600 1000 1.5
GTS800 8-15 800 1200 2.2
GTS1000 15-30 1000 1500 3
GTS1200 20-50 1200 1800 5.5
GTS1500 40-80 1500 2000 7.5
GTS1800 80-150 1800 2000 11
GTS2000 130-200 2000 2500 11



Some Important Information About Large Capacity Rotary Trommel Screen Separator Machines for Wood Chips:

Other Names rotary screen, rotary sifter, trommel screen, drum screen, revolving screen, cylinder round sifter etc.
Movement rotary centrifugal movement
Power Source general motor and reducer
Type with shaft, shaftless
Angle of Inclination 5°~7°
Material carbon steel, stainless steel 304, 316L
Advantages overcome the screen mesh plugging problem caused by circular vibrating screen and linear screen in the process of screening wet materials
Features have strong adaptability to materials. Material that is sticky, with high humidity, dirty and miscellaneous can be screened
Application sand, gold, quicklime, refractory materials, coal, wood chips etc.



Advantages of Large Capacity Rotary Trommel Screen Separator Machines for Wood Chips:

1. Its own energy consumption is small, long service life, small maintenance.
2. High screening efficiency equipment can be equipped with comb type cleaning mechanism.
3. The screen feeding method is simple and diverse.
4. Wide adaptability of materials.
5. Equipment noise is low, working environment is good.
6. The screen component is large, easy to enlarge.



Application of Large Capacity Rotary Trommel Screen Separator Machines for Wood Chips:

1. Chemical industry: fertilizer, detergent powder , talcum powder, talcum powder, dyestuff, rubber, resin, pigment, industrial medicine, cosmetic, coatings, Chinese medicine powder.
2. Metal , metallurgy industry: copper powder, nickel powder, aluminum powder, ceruse, ore alloy powder, welding powder, battery material, abrasive powder, fire proof material, alumina.

3. Food industry: sugar powder, monosodium, starch, salt, milk powder, egg powder, rice powder, bread crumbs, soy milk, sauce, juice, food additive, etc.
4. Other industry: paper-making industry , ceramic industry, mining industry, pharmaceuticals industry etc.



Working Principle of Large Capacity Rotary Trommel Screen Separator Machines for Wood Chips​:

  Trommel screens are constructed of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance. Downstream process equipment can be in various forms such as centrifugal Concentrator, spirals, jigs etc. After the materials are fed into the drum, the materials are classified, while the bigger materials flow forward along the inclination of drum and was classified through different mesh screens gradually. Classified small materials fell into respective bunker, and are delivered into finished product stack through manpower or belt conveyor.

316l Stainless Steel Trommel Drum Screen Separator Machines For Wood Chips 0

                              Material Running State in the Rotary Screen



Structural Composition of Large Capacity Rotary Trommel Screen Separator Machines for Wood Chips:

316l Stainless Steel Trommel Drum Screen Separator Machines For Wood Chips 1



1. driving device    2. coarse material discharge opening    3. seal cover

4. drum body    5. undersize material discharge opening    6. retaining plate

7. feed inlet    8. bracket



316l Stainless Steel Trommel Drum Screen Separator Machines For Wood Chips 2
