| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | AZ |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for small size |
| Delivery Time: | 20~30 workdays after order confirmed |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 sets per month |
| Model: | AZ-520, 1030, 1235, 1535 Etc. | Material Granularity: | 0.074mm~10mm |
|---|---|---|---|
| Screen Decks: | 1~6 Decks | Screen Width: | 500mm~1500mm (1800mm, 2000mm Not Suggested) |
| Screen Frame: | Wood Frame, Carbon Steel Frame, Stainless Steel Frame Etc. | Mesh Cleaning Device: | Bounce Balls, Ultrasonic Deblinding System Etc. |
| Vibrating Motor: | Double Horizontal Vibrating Motors, Optional Explosion-proof Type | Application: | Sand, Gravel, Limestone, Grain Of Any Powder Or Particles |
| High Light: | vibratory screening equipment,horizontal vibrating screen |
||
General Purpose Linear Vibrating Screener Linear Vibrating Sifting Equipment
Introduction of General Purpose Linear Vibrating Screener for Calcine Petroleum Coke:

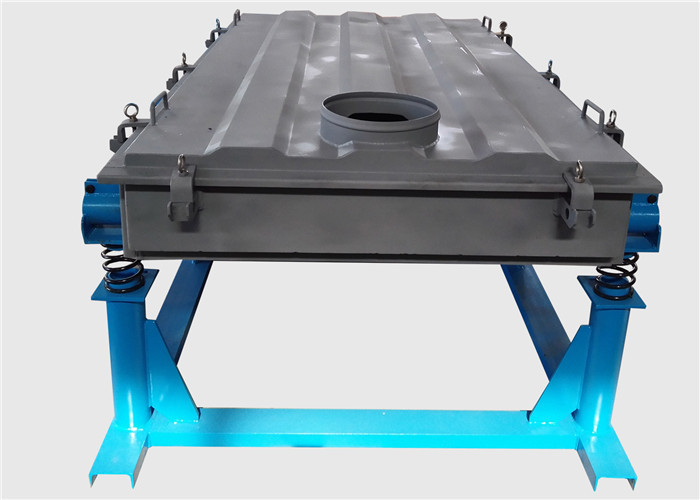

General Purpose Linear Vibrating Screener for Calcine Petroleum Coke is a kind of closed and lightweight linear vibrating sifting equipment that is commonly used, it uses a vibration motor as the vibration source, which make the material jump in straight line on the screen of the sifter, materials evenly go into the feed port of the linear vibrating screen from the feeding machine, generate multi-standards materials through the multilayer screen and be discharged from each discharge port.
Working Principle of General Purpose Linear Vibrating Screener for Calcine Petroleum Coke:
The screen box of the linear vibrating sieve machine does self-synchronous rotation along the opposite direction depending on double vibration motors, which makes the whole linear vibrating screen machine supported on damper do linear motion. Materials go through the screen loosely and move forward after falling into the screen box from inlet and then finish the separating work finally.
Features of General Purpose Linear Vibrating Screener for Calcine Petroleum Coke:
1. Less energy consumption,lower noise,longer service life
2. The beam and screen box are connected by high strength blot without welding
3. High accuracy screening efficiency,simple and stable structure, convenient maintenance
4. Suitable for rough screening with high capacity
5. Long travel distance for materials on the screen surface, high screening efficiency
Important Information About General Purpose Linear Vibrating Screener for Calcine Petroleum Coke:
| Shape | rectangular shape |
| Motion | linear motion |
| Structural Composition | screen box, screen, vibration motor, motor base, damping spring, support etc. |
| Vibrating Motor | two sets of horizontal vibrating motors, synchronous reverse rotation |
| Applicable Material | suitable for sieving 0.074mm~10mm non-sticky materials with moisture content less than 7% |
| Screen Surface | horizontal or inclined (0°~7°) |
| Layers of Screen | 1~6 layers of screen (The higher layers can be customized according to the actual situation) |
| Screen Frame | wooden screen frame, carbon steel screen frame, stainless steel screen frame etc. |
| Mesh Cleaning Method | bouncing balls, ultrasonic system etc. |
| Material | carbon steel, stainless steel 304/316L, titanium material etc. |
| Screen Size | screen width*length 500*2000mm, 500*2500mm, 1000*2000mm, 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*2500mm, 1200*3500mm, 1200*4000mm, 1500*3500mm etc. |
| Application | plastic particle, tea, chemical fertilizer, lysine, urea, organic fertilizer, limestone, fodder, feeding stuff, refractory material etc. |
| Surface Treatment | Sand blasting, plastic spraying, spray paint, mirror polishing etc. |
Technical Parameters of General Purpose Linear Vibrating Screener for Calcine Petroleum Coke:
| Model | Nominal Size (mm) | Particle Size (mm) | Leaning Angle of Screen (°) | Amplitude (mm) | Layer | Power (Kw) |
| AZ-520 | 500*2000 | 0.074~10 | 0~7° | 4~10 | 1~6 | 2*(0.4~0.75) |
| AZ-525 | 500*2500 | 2*(0.4~0.75) | ||||
| AZ-530 | 500*3000 | 2*(0.4~0.75) | ||||
| AZ-1020 | 1000*2000 | 2*(0.4~0.75) | ||||
| AZ-1025 | 1000*2500 | 2*(0.4~1.1) | ||||
| AZ-1030 | 1000*3000 | 2*(1.1~1.5) | ||||
| AZ-1040 | 1000*4000 | 2*(1.1~1.5) | ||||
| AZ-1225 | 1200*2500 | 2*(1.1~1.5) | ||||
| AZ-1235 | 1200*3500 | 2*(1.1~2.2) | ||||
| AZ-1250 | 1200*5000 | 2*(1.1~2.2) | ||||
| AZ-1535 | 1500*3500 | 2*(1.1~2.2) | ||||
| AZ-1560 | 1500*6000 | 2*(2.2~3.7) | ||||
| AZ-1845 | 1800*4500 | 0.074~15 | 2*(2.2~3.7) | |||
| AZ-2050 | 2000*5000 | 2*(2.2~3.7) | ||||
| AZ-2060 | 2000*6000 | 2*(2.2~3.7) |
Note: The data in the table are for reference only. Our company reserve the right to modify the above data.
Structure of General Purpose Linear Vibrating Screener for Calcine Petroleum Coke:

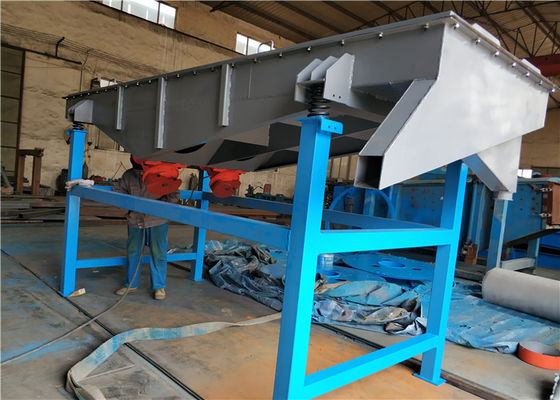

The linear vibrating screener machines are composed of screen box, vibration motor, damping system and chassis. The screen box consists of chute, roof, screen frame, screen plate (mesh), wire gauze.
1. Sieve box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.
2. Screen Mesh: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.
3. Vibration motor: the vibration motor use and maintenance method to see the vibration motor operating instructions.
4. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.
5. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, Especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.
6. Bracket: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.
Application of General Purpose Linear Vibrating Screener for Calcine Petroleum Coke:
1. Food industry: gourmet powder, starch, milk powder, yeast powder, sugar, salt, alkali, pollen, food additive, bean milk, juice, etc.
2. Metallurgy industry: electrode powder, manganese dioxide, electrolytic copper powder, aluminum powder, lead powder, copper powder, ore, alloy powder, electric magnetic material, polishing powder, refractory material, etc.
3. Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.
4. Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
5. Mining industry: kaolin, alumina, carbon, quartz sand,titanium oxide, zinc oxide, etc.
6. Chemical industry: resin pigment, medicine, grease, paint, palette, cosmetic, etc.
7. Abrasive material and ceramic industry: building sand, mica, alumina, abrasive,refractory material, slurry, etc.
8. Pollution treatment: waste oil, waste water,additives, activated carbon,etc.
