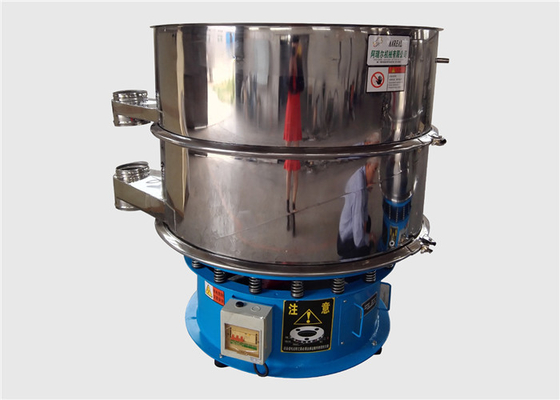

Solid Powdered Paint Rotary Sifter Screens Round Vibrating Screen Separator

Solid Powdered Paint Rotary Sifter Screens Round Vibrating Screen Separator

  • Solid Powdered Paint Rotary Sifter Screens Round Vibrating Screen Separator
  • Solid Powdered Paint Rotary Sifter Screens Round Vibrating Screen Separator
Solid Powdered Paint Rotary Sifter Screens Round Vibrating Screen Separator
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AY
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~30 work days after order confirmed
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Purpose: Grading, Filtering, Impurity Removal Etc. Model: AY-600, 800, 1000, 1200, 1500 Etc.
Moving Trajectory: Three-dimensional Motion Layers Of Screen: Single Layer Or Multi-layer (1~5 Layers)
Mesh De-blinding: Bounce Balls, Ultrasonic, Rotary Brush System Etc. Screen Mesh: Woven Wire Mesh, Perforated Plate, Grizzly Bar Etc.
Screen Frame: Bolt Insert Type, Adhesive Type, Ultrasonic Type Etc. Surface Finish: Paint, Powder Coating, Sandblast, Mirror Finish, Etc.
High Light:

air classifier machine

,

rotary sifter machine

Solid Powdered Paint Rotary Sifter Screens Round Vibrating Screen Separator



Introduction of High-efficiency Round Vibrating Screen Separator for Solid Powdered Paint:

High-efficiency Round Vibrating Screen Separator for Solid Powdered Paint is a high precision fine powder sieving machine. The fundamental principle of round separator is that the eccentric hammers installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of classification, filtering and removal of impurities.



Some Information You May Care About High-efficiency Round Vibrating Screen Separator for Solid Powdered Paint:

Model AY
Machine Shape round shape
Screen Decks 1~5 layers of screen with 2~6 discharge ports (outlets)
Mesh Size above 325 mesh (according to the materials)
Screen Frame/Holder adhesive type, L type (bolt insert type), ultrasonic type (transducer internal and external), flange type etc.
Mesh De-blinding System bouncing balls (with ball decks, rubber balls, silicone balls etc.), ultrasonic de-blinding system, rotary brush system etc.
Diameter 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm
Material stainless steel 304, 316L, carbon steel, plastic materials etc.
Surface Treatment Paint, sandblast and mirror polish, powder coating etc.
Function solid-separation, grading, remove the impurity etc.
Moving Trajectory three dimensional vibration motion
Damping Spring carbon steel spring, stainless steel spring, air spring, rubber spring etc.
Motor one set of vibrating motor, verticle arrangement (sufficient power), explosion proof motor optional
Motor Brand AAREAL Made, OLI-WOLONG, Italvibras etc.
APO Safety System Automatic Power Off Safety System is integrated in the motor
Quick-wear Parts stainless steel woven wire mesh screen, perforated plate, bounce balls, clamps, springs, sealing rubber strip, verticle vibrating motor etc.
Optional Design collecting tray, discharge gate, magnetic guard, quick release clamp, glass viewing port, etc.
Work Level general grade, food grade, pharmaceutical grade etc.



Purpose of High-efficiency Round Vibrating Screen Separator for Solid Powdered Paint:

Solid Powdered Paint Rotary Sifter Screens Round Vibrating Screen Separator 0Solid Powdered Paint Rotary Sifter Screens Round Vibrating Screen Separator 1Solid Powdered Paint Rotary Sifter Screens Round Vibrating Screen Separator 2

                  Grading                            Solid-liquid Separation                Impurity Removal



1. Grading: Granules/powder accurate classification

2. Solid-liquid separation: Remove granules foreign matter in the liquid
3. Impurity Removal: Remove the foreign matter or agglomerate



Structure of High-efficiency Round Vibrating Screen Separator for Solid Powdered Paint:

Solid Powdered Paint Rotary Sifter Screens Round Vibrating Screen Separator 3

  The circular rotary vibrating sieve is made up of dust proof cover, screen frame, vibrating body, inlet and outlet ports, spring buffer, base, vibrating motor, upper and lower heavy hammer, clamp ring,and other parts. The exciting force will generate by the rotation of vibrating motor.



Features and Features of High-efficiency Round Vibrating Screen Separator for Solid Powdered Paint:

1. It is suitable for any powder, particles and sticky liquid materials.
2. Green product with dust cover that prevent dust pollution and powder flying.
3. Screened materials can be automatically discharged.
4. Be equipped with anti-blocking device.
5. Outlet can be adjustable in the range of 360 degrees, which is convenient to arrange.
6. Can install to 1-5 layers as buyer’s requirements.



Overall Dimensions of High-efficiency Round Vibrating Screen Separator for Solid Powdered Paint:

Solid Powdered Paint Rotary Sifter Screens Round Vibrating Screen Separator 4

Model A B C D E F G I

Single Layer

Height

Double

Layer

Height

Three

Layer

Height

AY-400 472 372 150 400 110 60 300 270 550 660 770
AY-600 570 450 200 600 120 80 380 340 730 865 1000
AY-800 690 570 200 800 130 100 550 340 730 865 1000
AY-1000 810 690 250 970 150 120 650 400 790 925 1060
AY-1200 970 850 250 1170 180 130 760 450 860 1025 1190
AY-1500 1180 1060 250 1470 200 140 950 480 985 1180 1370
AY-1800 1480 1360 350 1770 220 150 1110 520 1030 1220 1410



Working Principle of High-efficiency Round Vibrating Screen Separator for Solid Powdered Paint:

Solid Powdered Paint Rotary Sifter Screens Round Vibrating Screen Separator 5

  The round gyratory vibrating screen has vertical type motor as excitation source, and the motor has eccentric block at the top and bottom which makes the rotating of motor convert horizontal, vertical and inclined three- dimensional motion. Then the motor pass the motion into screen mesh and make the material diffuse outward gradually. Because of that, we call it round vibrating screen machine. The round vibrating screen has the advantage of long running track and high-usage screen. Adjust the phase angle of eccentric block can change the motion track to separate the material precisely.
  After starting, the eccentric block at the top and bottom of motor will generate a composite inertial force which force the screen rotary moving. The vibrating screen frame make reciprocating motion continuously under the shaking of motor and forward the screen mesh move cycling. The material on screen mesh made directional movement with screen box. In the process of moving, the material smaller than mesh size pass the mesh and fall to the under layer which called undersize, and the material bigger than mesh size separated through outlet, then the separating is completed. The function and running track of round vibrating screen as follows.



Solid Powdered Paint Rotary Sifter Screens Round Vibrating Screen Separator 6

Solid Powdered Paint Rotary Sifter Screens Round Vibrating Screen Separator 7



Technical Parameters of High-efficiency Round Vibrating Screen Separator for Solid Powdered Paint:

Model Power Screen Surface Diameter Effective Screen Area (sqm) Decks
AY-400 0.18 KW 350mm 0.0962 1~3
AY-600 0.25 KW 550mm 0.2375 1~3
AY-800 0.55 KW 750mm 0.4416 1~3
AY-1000 0.75 KW 920mm 0.6644 1~3
AY-1200 1.1 KW 1120mm 0.9847 1~3
AY-1500 1.5 KW 1420mm 1.5829 1~3
AY-1800 2.2 KW 1720mm 2.3223 1~3
AY-2000 3.0 KW 1920mm 2.89 1~3

Note: our company reserve the right to modify the above data.



Application of High-efficiency Round Vibrating Screen Separator for Solid Powdered Paint:

1. Chemical industry: Rubber, PVC powder, resin, pigment, industrial medicine, cosmetic, coatings, etc.
2. Ceramic and abrasive: Alumina, quartz sand, mud etc.
3. Food industry: Sugar powder, starch, salt, rice noodles, milk powder, soybean milk, egg powder, sauce, syrup, etc.
4. Metal, metallurgy and mining industry: Aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, manganese dioxide, electrolysis copper powder, electromagnetism materials, grinding powder, fire-resistant material, lime, alumina, heavy calcium carbonate, etc.
5. Paper making: Paper pulp, paint, wasted water recycling.
6. Pharmacy profession: Chinese herbal medicine, western medicine powder, liquid, particle, etc.
7. Social pollution disposed: Disposed oil, disposed water, disposed dye water, assistant, active carbon.



Solid Powdered Paint Rotary Sifter Screens Round Vibrating Screen Separator 8
