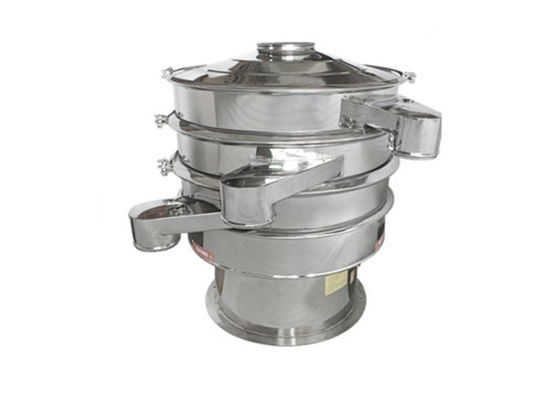

Food Grade Rotary Sieve Separator Machine For Lactose Monohydrate Milk Sugar

Food Grade Rotary Sieve Separator Machine For Lactose Monohydrate Milk Sugar

  • Food Grade Rotary Sieve Separator Machine For Lactose Monohydrate Milk Sugar
  • Food Grade Rotary Sieve Separator Machine For Lactose Monohydrate Milk Sugar
Food Grade Rotary Sieve Separator Machine For Lactose Monohydrate Milk Sugar
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AY
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~30 work days after order confirmed
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Moving Trajectory: Three-dimensional Motion Characteristics: Small Size, High Screening Accuracy, Multi-layer Sieving Available Etc.
Mesh Cleaning System: Rubber Balls, Ultrasonic System, Rotary Brush System Etc. Surface Treatment: Mirror Polish, Paint, Sandblast Etc.
Screen: Stainless Steel Woven Wire Mesh, Perforated Plate Etc. Spare Parts: Screen, Springs, Bounce Balls, Clamps, Sealing Rubber Strip Etc.
Material: Stainless Steel 304, 316L, Carbon Steel Etc. Motor: Vibrating Motor, AAREAL Made Or Other Brand
High Light:

vibro sieve machine

,

round separator

Food Grade Rotary Sieve Separator Machine For Lactose Monohydrate Milk Sugar



Introduction of Food Grade Rotary Vibration Sifter for Lactose Monohydrate Milk Sugar:

Food Grade Rotary Vibration Sifter for Lactose Monohydrate Milk Sugar can be also called vibro screen, vibro sifter, vibro sieve, vibro shifter, circular vibrating sieve, rotary vibrating sieve, rotary vibrating screen, circular vibrating screen, vibrating separator, vibrating sifter etc. This is a kind of classic vibrating screening machine for most materials general use.

  This kind of screening machine is a kind of high precision sieving machine, low noise, high efficiency, only take 3~5 minutes to replace the screen rapidly, fully closed structure. It can apply to granule, powder and liquid screening and filter.



Purpose of Food Grade Rotary Vibration Sifter for Lactose Monohydrate Milk Sugar​:

Food Grade Rotary Sieve Separator Machine For Lactose Monohydrate Milk Sugar 0

1. Solid-liquid separation
The mixture of solid and liquid can be separated effectively by single or multi-layer type into different grade materials.



2. Grading
Each model of circular vibrating sifter can precisely and continuously screen and separate screened products, the multi-layer type can sift and separate five groups of different particles at a time. It is suitable for dry materials.



3. Remove the impurity
The rotary vibro sieve can quickly separate a few oversize or undersized particles from a quantity of materials.



Characteristics​ of Food Grade Rotary Vibration Sifter for Lactose Monohydrate Milk Sugar​:

1. Auto Sieve Clear System and Cost Saving:
The design of auto sieve clear system allows our machines to work long time and reduce maintenance costs.



2. Wide Application:
Our rotary vibrating sieve machine can be used for the areas of food, beverage, chemical, pharmacy, agriculture, recycle, metal, etc…



3. Customized Service and High Capacity:
Every single part of our sieving machines can be customized to realize high capacity for any industry



4. Large Range of Mesh Sizes:
Our mesh sizes are from 500 mesh (0.025mm) to 2 mesh (8mm) to meet clients’ all sieving accuracy of particle, powder, slurry, etc.



Some Information About Food Grade Rotary Vibration Sifter for Lactose Monohydrate Milk Sugar​:

Model AY
Shape circular or round shape
Layers of Screen 1~5 layers of screen with 2~6 outlets
Mesh Size above 325 mesh
Screen Frame adhesive type, L type (bolt insert type), ultrasonic type (transducer internal and external) etc.
Self-cleaning System bouncing balls (with ball decks), ultrasonic de-blinding system, rotary brush system etc.
Diameter 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm
Material stainless steel 304, 316L, carbon steel, plastic materials etc.
Surface Treatment Paint, sandblast and polish etc.
Function solid-separation, grading, remove the impurity etc.
Movement three dimensional vibration motion
Damping Spring carbon steel spring, stainless steel spring, air spring, rubber spring etc.
Motor one set of vibrating motor, verticle arrangement
Motor Brand OLI-WOLONG, Italvibras, AAREAL Made, Other China Made brand etc.
APO Safety System Automatic Power Off Safety System is integrated in the motor
Spare Parts

mesh screen, perforated plate, bounce balls, clamps, springs,

sealing rubber strip etc.

Optional Design discharge gate, magnetic guard, quick release clamp, glass viewing port etc.



Structure Diagram of Food Grade Rotary Vibration Sifter for Lactose Monohydrate Milk Sugar:

Food Grade Rotary Sieve Separator Machine For Lactose Monohydrate Milk Sugar 1

Working Principle of Food Grade Rotary Vibration Sifter for Lactose Monohydrate Milk Sugar:

  The round rotary vibrating sieve machine has vertical type motor as excitation source, and the motor has eccentric block at the top and bottom which makes the rotating of motor convert horizontal, vertical and inclined three- dimensional motion. Then the motor pass the motion into screen mesh and make the material diffuse outward gradually. Because of that, we call it round vibrating screen machine. The round vibrating screen has the advantage of long running track and high-usage screen. Adjust the phase angle of eccentric block can change the motion track to separate the material precisely.

  The general characteristics of the vibrating motor adjustment are described below:

Food Grade Rotary Sieve Separator Machine For Lactose Monohydrate Milk Sugar 2

Food Grade Rotary Sieve Separator Machine For Lactose Monohydrate Milk Sugar 3



Application of Food Grade Rotary Vibration Sifter for Lactose Monohydrate Milk Sugar​:

1. Food Industry
Sugar powder, starch, salt, rice flour, milk powder, soybean milk, egg powder, soy sauce, juice, tea, drink, dairy products, sweets, small food, frozen food, spices, protein, food additives, dehydrated vegetables etc.



2. Pharmaceuticals Industry
Active pharmaceutical ingredients, pharmaceutical intermediates, tablet, granule and granule, penicillin, tetracycline HCL, vitamin, powder, Chinese medicine medicinal slices, etc.



3. Powder Metallurgy Industry
Iron powder, copper powder, molybdenum powder, tungsten powder, silver powder, aluminite.



4. Chemical Industry
Epoxy resin, resin, phenolic resin, polyethylene powder particles, EPS, PVC, catalyst, blowing agent, rubber additives, desiccant, accelerant, fluorescent whitening agent, paint, etc.



5. Other Industries
Magnetic materials, lithium iron phosphate, cobalt acid lithium, graphite powder, laundry detergent, activated carbon, starch glue, glass fiber, feldspar, white corundum, quick lime, mica, polishing powder, refractory material, kaolin, carbon acid calcium, quartz sand, paper, etc.



Technical Parameters of Food Grade Rotary Vibration Sifter for Lactose Monohydrate Milk Sugar​:

Food Grade Rotary Sieve Separator Machine For Lactose Monohydrate Milk Sugar 4

Model Power Screen Surface Diameter Effective Screening Area (m2) Layers of Screen
AY-400 0.18 KW 350mm 0.0962 1~3
AY-600 0.25 KW 550mm 0.2375 1~3
AY-800 0.55 KW 750mm 0.4416 1~3
AY-1000 0.75 KW 920mm 0.6644 1~3
AY-1200 1.1 KW 1120mm 0.9847 1~3
AY-1500 1.5 KW 1420mm 1.5829 1~3
AY-1800 2.2 KW 1720mm 2.3223 1~3
AY-2000 3.0 KW 1920mm 2.89 1~3



Overall Dimensions of Food Grade Rotary Vibration Sifter for Lactose Monohydrate Milk Sugar​:

Food Grade Rotary Sieve Separator Machine For Lactose Monohydrate Milk Sugar 5

Model A B C D E F G I Single Layer Height Double Layer Height

Three

Layer

Height

AY-400 472 372 150 400 110 60 300 270 550 660 770
AY-600 570 450 200 600 120 80 380 340 730 865 1000
AY-800 690 570 200 800 130 100 550 340 730 865 1000
AY-1000 810 690 250 970 150 120 650 400 790 925 1060
AY-1200 970 850 250 1170 180 130 760 450 860 1025 1190
AY-1500 1180 1060 250 1470 200 140 950 480 985 1180 1370
AY-1800 1480 1360 350 1770 220 150 1110 520 1030 1220 1410



Food Grade Rotary Sieve Separator Machine For Lactose Monohydrate Milk Sugar 6Food Grade Rotary Sieve Separator Machine For Lactose Monohydrate Milk Sugar 7
