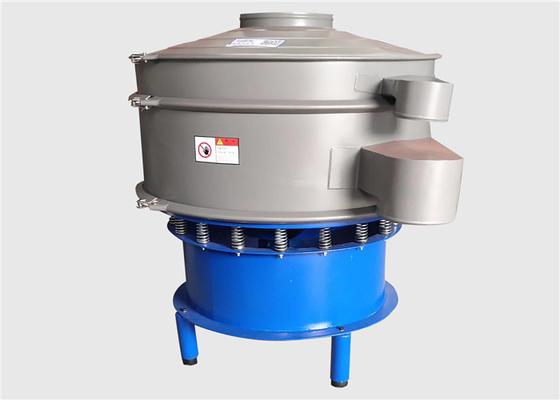

Electrode Powder Rotex Vibrating Screen 3D Motion Small Load Long Service Life

Electrode Powder Rotex Vibrating Screen 3D Motion Small Load Long Service Life

  • Electrode Powder Rotex Vibrating Screen 3D Motion Small Load Long Service Life
  • Electrode Powder Rotex Vibrating Screen 3D Motion Small Load Long Service Life
Electrode Powder Rotex Vibrating Screen 3D Motion Small Load Long Service Life
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AY
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~30 work days after order confirmed
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Movement: Three Dimensional Vibration Motion (3-D Motion) Composition: Screen Frame, Screen Holder, Cover, Bottom, Vibrating Motor Etc.
Self-cleaning System: Bounce Balls, Ultrasonic System, Rotary Brush System Etc. Model: AY-400, 600, 800, 1000, 1200, 1500, 1800, 2000
Screen Decks: 1~5 Decks Material: Stainless Steel, Carbon Steel, Plastic Material Etc.
Surface Treatment: Polish, Paint, Sandblast Etc. Application: Powder, Particles, Slurry Etc.
High Light:

round vibrating screen

,

vibro sieve machine

Electrode Powder Rotex Vibrating Screen 3D Motion Small Load Long Service Life



Introduction of Electrode Powder Three-dimensional Rotary Vibration Screening Machine:

Electrode Powder Three-dimensional Rotary Vibration Screening Machine is a kind of high precision sieving machine, with low noise, high efficiency, only need 3-5 minutes to replace the screen rapidly, fully closed structure. It can apply to granule, powder and liquid screening, filtering and dewatering.



Features​ of Electrode Powder Three-dimensional Rotary Vibration Screening Machine:

1. It has superb anti-binding properties – It helps to prevent screen clog neatly. Unlike other equipment, it does not create dust clouds as it operates. Like a robot, it has an automatic capacity to discharge separated materials.

2. It contains up to 5 screens per unit – This makes it capable of conducting multiple operations with just a single unit; This is another feature which makes it cost effective. Moreover, its screen can easily be adjusted or changed in five minutes. Now, that’s quick enough.

3. Simple and functional design – This makes it run with sustained efficiency. It is also easier to use and has a higher capacity. Further, it is designed so that it can run with minimal supervision. It has a low-maintenance structure. Moreover, it creates lower noise and covers a minimal floor space. Also, it is lightweight and can easily be transferred using a pallet jack or forklift.

4. Consumes lower energy compared to conventional equipment – It does not sacrifice output quality. It not only generates premium outputs but also contributes to minimizing environmental damage.

5. It can work on its own for long hours – It does not entail much manual attention. In other words, its high durability makes it run with minimal supervision.

6. The rotary vibrating sieve is made up of stainless steel, including all its contact parts – Even better, it can be fully or partially upgraded to SS316. This is to meet arising needs/demands. Likewise, it has various sizes and available modification schemes to suit all types of materials. Among these are different forms of powder and liquids.



Some Information About Electrode Powder Three-dimensional Rotary Vibration Screening Machine:

Model AY
Shape circular or round shape
Layers of Screen 1~5 layers of screen with 2~6 outlets
Mesh Size above 325 mesh
Screen Frame adhesive type, L type (bolt insert type), ultrasonic type (transducer internal and external) etc.
Mesh Cleaning Method bouncing balls, ultrasonic system, rotary brush system etc.
Machine Diameter 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm etc.
Material stainless steel 304, 316L, carbon steel, plastic materials etc.
Surface Treatment Paint, sandblast and polish etc.
Function grading, solid-separation, remove the impurity, dewatering etc.
Movement three dimensional vibration motion
Damping Spring carbon steel spring, stainless steel spring, air spring, rubber spring etc.
Motor verticle vibrating motor
Motor Brand AAREAL Made, OLI-WOLONG, Italvibras etc.
APO Safety System Automatic Power Off Safety System is integrated in the motor
Optional Design magnetic guard, quick release clamp, discharge gate, glass viewing port etc.



Application of Electrode Powder Three-dimensional Rotary Vibration Screening Machine:

1. Food Industry:
Sugar powder, starch, salt, rice flour, milk powder, soybean milk, egg powder, soy sauce, juice, tea, drink, dairy products, sweets, small food, frozen food, spices, protein, food additives, dehydrated vegetables, etc.



2. Pharmaceuticals Industry:
Active pharmaceutical ingredients, pharmaceutical intermediates, tablet, granule and granule, penicillin, tetracycline HCL, vitamin, powder, Chinese medicine medicinal slices, etc.



3. Chemical Industry:
Epoxy resin, resin, phenolic resin, polyethylene powder particles, EPS, PVC, catalyst, blowing agent, rubber additives, desiccant, accelerant, fluorescent whitening agent, paint, etc.



4. Powder Metallurgy Industry
Iron powder, copper powder, molybdenum powder, tungsten powder, silver powder, aluminu.



5. Other Industries
Magnetic materials, lithium iron phosphate, cobalt acid lithium, graphite powder, laundry detergent, activated carbon, starch glue, glass fiber, feldspar, white corundum, quick lime, mica, polishing powder, refractory material, kaolin, carbon acid calcium, quartz sand, paper, etc



Basic Function of Electrode Powder Three-dimensional Rotary Vibration Screening Machine:

Electrode Powder Rotex Vibrating Screen 3D Motion Small Load Long Service Life 0

1. Grading
Each model of vibrating sieve machine can precisely and continuously screen and separate screened products, the multi-layer type can screen and separate five groups of different particles at a time. It is suitable for dry materials.



2. Solid-liquid separation
The mixture of solid and liquid can be separated effectively by single or multi-layer type into different grade materials.



3. Remove the impurity
The model can quickly separate a few oversize or undersized particles from a quantity of materials.



Structure Diagram of Electrode Powder Three-dimensional Rotary Vibration Screening Machine:

Electrode Powder Rotex Vibrating Screen 3D Motion Small Load Long Service Life 1

Technical Parameters of Electrode Powder Three-dimensional Rotary Vibration Screening Machine:

Electrode Powder Rotex Vibrating Screen 3D Motion Small Load Long Service Life 2

Model Power Screen Surface Diameter Effective Screening Area (m2) Layers of Screen
AY-400 0.18 KW 350mm 0.0962 1~3
AY-600 0.25 KW 550mm 0.2375 1~3
AY-800 0.55 KW 750mm 0.4416 1~3
AY-1000 0.75 KW 920mm 0.6644 1~3
AY-1200 1.1 KW 1120mm 0.9847 1~3
AY-1500 1.5 KW 1420mm 1.5829 1~3
AY-1800 2.2 KW 1720mm 2.3223 1~3
AY-2000 3.0 KW 1920mm 2.89 1~3



Working Principle of Electrode Powder Three-dimensional Rotary Vibration Screening Machine:

   AY model rotary vibrating sieve use upright motor as the source of vibration, equipped eccentricity hammer on the both sides of motor, change circumrotate to level, upright and incline movement, then pass these three movement to the surface of the screen. Adjust the phasic angle on the both sides of the top and bottom to change the movement orbits of the surface screen.

  The general characteristics of the vibrator adjustment are described below:

Electrode Powder Rotex Vibrating Screen 3D Motion Small Load Long Service Life 3

Electrode Powder Rotex Vibrating Screen 3D Motion Small Load Long Service Life 4



Overall Dimensions of Electrode Powder Three-dimensional Rotary Vibration Screening Machine:

Electrode Powder Rotex Vibrating Screen 3D Motion Small Load Long Service Life 5

Model A B C D E F G I Single Layer Height Double Layer Height

Three

Layer

Height

AY-400 472 372 150 400 110 60 300 270 550 660 770
AY-600 570 450 200 600 120 80 380 340 730 865 1000
AY-800 690 570 200 800 130 100 550 340 730 865 1000
AY-1000 810 690 250 970 150 120 650 400 790 925 1060
AY-1200 970 850 250 1170 180 130 760 450 860 1025 1190
AY-1500 1180 1060 250 1470 200 140 950 480 985 1180 1370
AY-1800 1480 1360 350 1770 220 150 1110 520 1030 1220 1410



Electrode Powder Rotex Vibrating Screen 3D Motion Small Load Long Service Life 6Electrode Powder Rotex Vibrating Screen 3D Motion Small Load Long Service Life 7
