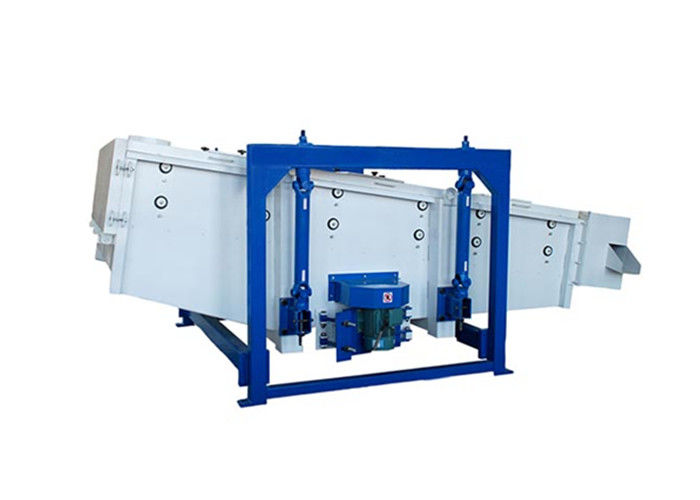

Multi Deck Horizontal Vibrating Screen Gyratory Sifter Machine Quick Open Type

Multi Deck Horizontal Vibrating Screen Gyratory Sifter Machine Quick Open Type

  • Multi Deck Horizontal Vibrating Screen Gyratory Sifter Machine Quick Open Type
  • Multi Deck Horizontal Vibrating Screen Gyratory Sifter Machine Quick Open Type
Multi Deck Horizontal Vibrating Screen Gyratory Sifter Machine Quick Open Type
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film for the machine body, and plywood wooden case (fumigation-free) for the spare parts such as screens etc.
Delivery Time: 20~35 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Features: Large Capacity, High Accuracy And Multi-deck Screening Movement: Gyratory Reciprocating Motion
Power Source: General Motor + Vibration Exciter Layers Of Screen: 1~6 Decks
Screen Size: Screen Width*length 1000*3000mm, 1200*3600mm, 1500*3600mm, 1800*3600mm, 2000*3600mm Etc. Mesh De-blinding: Rubber Balls
Frequency: 200~300 R/min Double Screening: Can Be Made Into Double Screening Type To Increase The Capacity
High Light:

Gyratory Horizontal Vibrating Screen

,

1000*3000mm Horizontal Vibrating Screen

,

Gyratory Gyratory Sifter

Multi Deck Horizontal Vibrating Screen Gyratory Sifter Machine Quick Open Type



Overview of Multi-deck Gyratory Sifter Machine for Coconut Shell Activated Carbon​:

Multi-deck Gyratory Sifter Machine for Coconut Shell Activated Carbon is an advanced industrial screener separator and high-performance gyratory industrial screening machine generating a gyratory vibration motion close to level plane at low angles in a reciprocating side to side motion. This unique industrial gyratory sifter was designed to provide a cleaner cut of materials while still allowing higher screening capacity.

  Simple to pursue screening accuracy will sacrifice the production as it' cost, but pursue the big production will make the precision decline. Square gyratory screen is a kind of efficient screening equipment having high precision and big production and designed specially in view of the above question. It is widely used in the industries including chemical, metallurgy, ferrous metal, non-ferrous metal, food and abrasive. Through Square gyratory screen will make vibrator happen vibration combined with rocking motion, which will pass to the screen surface to make the material disperse quickly in the front of screen machine to reach the purpose of efficient screening.

Multi Deck Horizontal Vibrating Screen Gyratory Sifter Machine Quick Open Type 0



Features of Multi-deck Gyratory Sifter Machine for Coconut Shell Activated Carbon​:

1. The unique gyratory reciprocating motion makes the whole screen surface of gyratory sifter for frac sand have the equivalent screening efficiency, which can realize the large yield and high precision screening.

2. Quick-open type hinged door and rapid screen mesh tension system ensure quick replacement and inspection of screen mesh.



Multi Deck Horizontal Vibrating Screen Gyratory Sifter Machine Quick Open Type 1



3. The unique suspension system makes the whole machine run smoothly. The sieving machine itself is less destructive. The basic dynamic load is low and the equipment does not need to be fixed.

4. Vibration exciter is maintenance-free within 2 years. Adopt high quality lubricating grease, high quality sealing ring and high quality sealing bearing.



Multi Deck Horizontal Vibrating Screen Gyratory Sifter Machine Quick Open Type 2



5. The dynamic balance drive increases the exciter's rotation speed from 150~180 RPM to 300 RPM.

6. The high speed rotation of the exciter improves the acceleration value of the elastic ball, so that the elastic ball impacts screen surface more powerfully. The screen mesh is not easy to plug, prolonging the service life of the screen, reducing the downtime, and ensuring the continuity of screening.

7. Fully enclosed structure and dust-free.

8. The movement of the gyratory sifter for frac sand, the screen mesh protection support design, and the effective cleaning of the elastic ball make the screen service life long.



Multi Deck Horizontal Vibrating Screen Gyratory Sifter Machine Quick Open Type 3

                   Both sides of the screen are tensioned



Multi Deck Horizontal Vibrating Screen Gyratory Sifter Machine Quick Open Type 4

     Ball Deck (use bouncing balls to clean the screen mesh)



9. Soft running and low noise.

10. Larger capacity. Duplex screening is available.

11. Forward stretch material discharging, easy to collect.



Working Principle of Multi-deck Gyratory Sifter Machine for Coconut Shell Activated Carbon​:

  The square gyratory screening machine is also called gyratory sifter, reciprocating screen, if see from the motion trail of screen box. The vibratory force produced by its driving device is the inertial force twining along the dead axle, the direction of which is change according to a certain regular. The essence of square gyratory screen is the reciprocating intertia force formed by the rotation of eccentric wheel winding the dead axle. According to the structure characteristics and working principle of rocking screen, its screen surface is arranged with level or incline(the angle of inclination is 0-5 degrees). The working principle of gyratory screener is that after starting the screen machine, the shaking body of screen machine namely screen box make ront-rear reciprocating motion under the action of the inertial force, screen box drives screen surface to make periodic shaking, which makes the materials on the screen surface to make directional jumping movement with the screen box. During the period, the material less than the aperture of the screen surface fall to under layer through the sieve mesh to became the screen underflow. The material greater than the aperture of the screen surface is discharged from the discharge gate after the continuous roll jumping movement and finally complete screening work.



Application of Multi-deck Gyratory Sifter Machine for Coconut Shell Activated Carbon​:

1. Food Industry : Starch, Slat, Sugar, Powdered Milk, Folur Pollen etc.
2. Chemcial Industry: Fertilizer, Quartz Sand,Resin,Silica sand etc.
3. Metal,Metallurgy,Mining Industry:Aluminum powder,Lead powder, Copper powder,Alloy powder, Magenesium powder etc.
4. Pollution Treatment And Others: Waste water, Waste Oil, Laundry wastewater etc.



Technical Parameters of Multi-deck Gyratory Sifter Machine for Coconut Shell Activated Carbon​:

Multi Deck Horizontal Vibrating Screen Gyratory Sifter Machine Quick Open Type 5

Model

Screen Surface Specifications

Power

(kw)

Amplitude (mm)

Operating Frequency (r/min)

Leaning Angle of Screen (°)

L*W*H (mm)

(Reference)

AF-515 500*1500

2.2

20~60

180~300

4~8

2900*1150*1500
AF-520 500*2000 2900*1150*1900
AF-525 500*2500 3400*1150*1900
AF-1025 1000*2500

3

3400*1700*1950
AF-1030 1000*3000 3900*1700*1950
AF-1036 1000*3600 4500*1700*1950
AF-1530 1500*3000 5.5 3900*2200*1950
AF-1536 1500*3600 4500*2200*1950
AF-1830 1800*3000 7.5 3900*2500*1950
AF-1836 1800*3600 4500*2500*1950
AF-2030 2000*3000 7.5 3900*2700*1950
AF-2036 2000*3600 4500*2700*1950

Note:

All specifications of this series of screening machine can be equipped with one to six layers of screen mesh. Under special circumstances, it can be equipped with ten layer screen mesh.



Multi Deck Horizontal Vibrating Screen Gyratory Sifter Machine Quick Open Type 6Multi Deck Horizontal Vibrating Screen Gyratory Sifter Machine Quick Open Type 7Multi Deck Horizontal Vibrating Screen Gyratory Sifter Machine Quick Open Type 8Multi Deck Horizontal Vibrating Screen Gyratory Sifter Machine Quick Open Type 9
