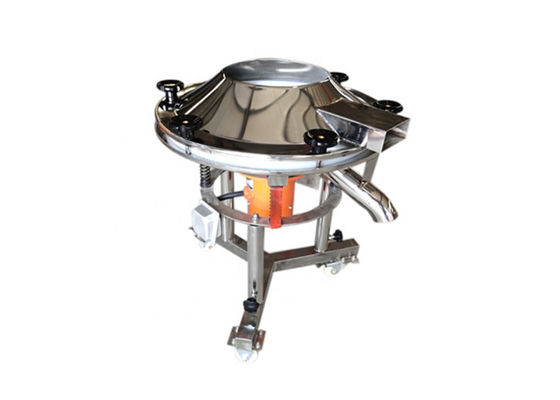

High Efficiency Vibrating Sieve Screen Round Separator Low Vibration And Noise

High Efficiency Vibrating Sieve Screen Round Separator Low Vibration And Noise

  • High Efficiency Vibrating Sieve Screen Round Separator Low Vibration And Noise
  • High Efficiency Vibrating Sieve Screen Round Separator Low Vibration And Noise
High Efficiency Vibrating Sieve Screen Round Separator Low Vibration And Noise
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~30 work days after order confirmed
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Feature: High-frequency Vibration Motion: Three-dimensional Motion
Purpose: Removal Of Impurities, Solid-liquid Separation Layers Of Screen: 1~2 Layers Of Screen
Diameter: 450mm, 600mm, 800mm, 1000mm, 1200mm Vibrating Motor: One Unit Verticle 2-pole Vibrating Motor
Characteristics: Reliable Structure, Strong Excitation Force, High Efficiency, Low Vibration Noise, Rugged And Durable, Easy Maintenance Etc. Application: Powder Coating, Ceramic Glazes, Ceramic Slurry Etc.
High Light:

wet vibrating screen

,

sieve separator machine

High Efficiency Vibrating Sieve Screen Round Separator Low Vibration And Noise



Introduction of High Frequency Rotary Vibro Filter Sieve Machine for Ceramic Slurry​:

The High Frequency Rotary Vibro Filter Sieve Machine for Ceramic Slurry is a vibrating screening device designed for slurry filtration and screening with strong viscosity, high filtration accuracy and large processing capacity. It is equipped with a special high frequency vibration motor as the power, a butterfly design of the fuselage, and a compact and reasonable grid structure.

  It can quickly separate insoluble solid materials in various types of slurry, automatically discharge slurry residue, and can continuously operate. It has the characteristics of reliable structure, strong excitation force, high efficiency, low vibration and noise, sturdy and durable, convenient maintenance, and safe use. The material contacting the body is made of stainless steel 304, which is suitable for filtering and screening of various muds and thick liquids.



More Information About High Frequency Rotary Vibro Filter Sieve Machine for Ceramic Slurry​:

Name high frequency vibrating screen
Features high-frequency vibration
Layers of Screen 1~2 layers of screen
Motion three dimensional vibration
Power Source one set of verticle vibrating motor
Frequency 3000 times per minutes
Exciting Force 3KN~15KN
Material stainless steel 304, 316L etc.
Application ceramic glazes, powder coating, soybean milk, slurry etc.



Purpose of High Frequency Rotary Vibro Filter Sieve Machine for Ceramic Slurry​:

1. Solid-liquid Separation: this vibro screen machine can deal with mixed solid and liquid materials effectively, realize solid-liquid separation quickly, and filter out materials of different orders.

2. Removal of Impurities: this vibrating sieve can remove a large number of liquid materials in different sizes of a small part of impurities, rapid separation.



Working Principle of High Frequency Rotary Vibro Filter Sieve Machine for Ceramic Slurry​:

  The working principle of high-frequency vibrating screen is similar to that of ordinary three-dimensional vibrating screen, but the high-frequency vibrating screen has a vibration frequency of up to 3000 times per minute, which can instantly destroy the tension on the surface of the pulp and cause the fine-grained material to oscillate at high speed on the screen surface, increasing less than The probability of contact between the granular material and the sieve holes greatly improves the efficiency of screening and filtering. Eccentric blocks are installed on the upper and lower shafts of the high-frequency filter screen vertical motor. Adjusting the phase angle of the eccentric blocks can change the trajectory of the screen surface material.

High Efficiency Vibrating Sieve Screen Round Separator Low Vibration And Noise 0

Center of Gravity Angle Main Usage Effects
rough classification the raw material flows from the center line to the circumferential direction
15° general screening start the vortex motion
45° precision grading the longest vortex motion
>90° special purpose raw materials concentrate to the center



Technical Parameters of High Frequency Rotary Vibro Filter Sieve Machine for Ceramic Slurry​:

Diameter
(mm)
Power
(kw)
Effective Diameter of Mesh
(mm)
Exciting Force(kN) Weight
(kg)
450 0.18 420 3 50
600 0.25 600 5 65
800 0.55 800 8 78
1000 0.75 970 10 130
1200 1.1 1170 15 170



Features of High Frequency Rotary Vibro Filter Sieve Machine for Ceramic Slurry​:

1. High sieving accuracy and high efficiency. Any powder, granule and slime can be used.
2. High vibration frequency, up to 3000 times per minute, the effect of sieving fine-grained, high-viscosity materials is more obvious.
3.Small size, light weight, convenient installation and movement, height can be adjusted freely.
4. Except for the motor, all of them are made of stainless steel with beautiful appearance.
5. Unique screen structure, easy and quick to install the screen.



Application of High Frequency Rotary Vibro Filter Sieve Machine for Ceramic Slurry​:

1. Ceramic industry: ceramic slurry, ceramic glaze, etc.
2. Chemical industry: paint, coating, bleach, etc.
3. Food industry: soy sauce, vinegar, soybean milk, fruit juice, pineapple juice, rice wine, rice wine, bean dregs, yeast solution, beverages, etc.
4. Pharmaceutical industry: traditional Chinese medicine slurry, western medicine slurry, pharmaceutical intermediates, etc.
5. Paper industry: coating coating, white clay mud, black and white liquid, waste liquid, paper making liquid, waste water recycling, etc.
6. Environmental protection: garbage, human and animal waste, waste oil, food waste water, waste water processing, etc.

High Efficiency Vibrating Sieve Screen Round Separator Low Vibration And Noise 1
