| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for export |
| Delivery Time: | 20~30 work days after order confirmed |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
| Feature: | High-frequency Vibration | Other Name: | High Frequency Vibrating Screen, Glaze Vibrating Sieve Etc. |
|---|---|---|---|
| Purpose: | Used In Dry-wet Filter, Grading And Dewatering Of Various Materials | Layers Of Screen: | 1~2 Layers Of Screen |
| Power Source: | One Set Of Verticle Vibrating Motor | Movement: | Three Dimensional Vibration |
| Frequency: | 3000 Time Per Minute | Exciting Force: | 3KN~15KN |
| Material: | Stainless Steel 304, 316L Etc. | Application: | Ceramics, Slurry, Powder Coating, Brick Making, Chemical Fertilizer Etc. |
| High Light: | wet screening equipment,wet vibrating screen |
||

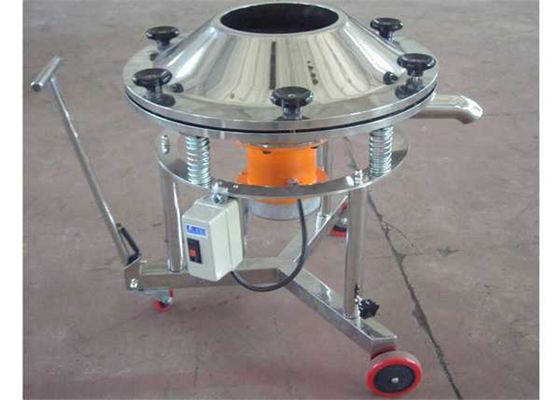

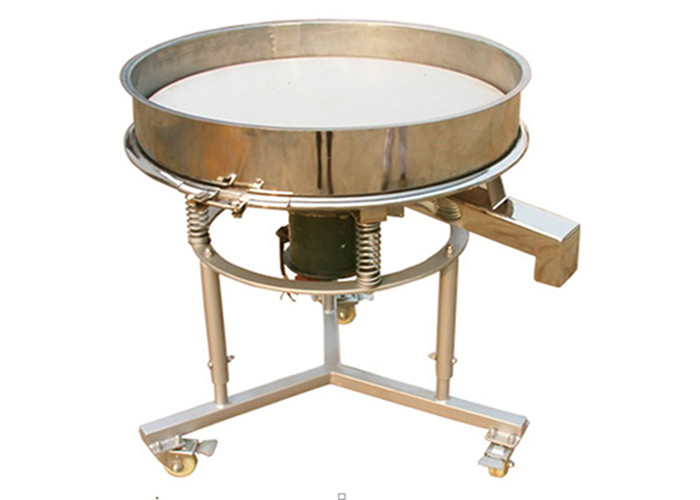

Introduction of High Frequency Rotary Vibrating Screen Machine for Ceramic Slurry:
High Frequency Rotary Vibrating Screen Machine for Ceramic Slurry is a low-energy-consumption, high-frequency, ideal filtering vibrating screen successfully developed based on our company's years of experience in the filtering industry. This product is suitable for the food industry, chemical industry, pharmaceutical industry, abrasive ceramics, Screening and filtering of any powder, granule and slime in the metallurgical industry. The high-frequency sieve is especially aimed at the screening of glazes in the ceramic industry, and the effect is very significant.
More Information About High Frequency Rotary Vibrating Screen Machine for Ceramic Slurry:
| Name | high frequency vibrating screen |
| Features | high-frequency vibration |
| Layers of Screen | 1~2 layers of screen |
| Motion | three dimensional vibration |
| Power Source | one set of verticle vibrating motor |
| Frequency | 3000 times per minutes |
| Exciting Force | 3KN~15KN |
| Material | stainless steel 304, 316L etc. |
| Application |
ceramic glazes, powder coating etc. |
Working Principle of High Frequency Rotary Vibrating Screen Machine for Ceramic Slurry:
The high-frequency vibrating screen uses high-frequency vibration, so that the tension on the surface of the slurry cannot be preserved and destroyed. At the same time, the fine material also oscillates at a high speed, which speeds up the effect of high-density useful minerals and segregation, and increases the probability that the smaller-sized material will contact the sieve.
Features of High Frequency Rotary Vibrating Screen Machine for Ceramic Slurry:
1. Small size, light weight, convenient installation and movement, height can be adjusted freely.
2. High vibration frequency, up to 3000 times/minute, it is more effective for sieving fine-grained and high-viscosity materials.
3. High sieving accuracy, high efficiency, any powder, granule, slime can be applied.
4. Except for the motor, all of them are made of stainless steel with beautiful appearance.
5. Unique screen structure, easy and quick to install the screen.
Technical Parameters of High Frequency Rotary Vibrating Screen Machine for Ceramic Slurry:
|
Diameter |
Power |
Effective Diameter of Mesh |
Exciting Force(kN) |
Weight |
| 450 | 0.18 | 420 | 3 | 50 |
| 600 | 0.25 | 600 | 5 | 65 |
| 800 | 0.55 | 800 | 8 | 78 |
| 1000 | 0.75 | 970 | 10 | 130 |
| 1200 | 1.1 | 1170 | 15 | 170 |
Application of High Frequency Rotary Vibrating Screen Machine for Ceramic Slurry:
The high frequency vibrating sieve is widely used in milk, sugar, spices, starch, soybeans, salt, instant potatoes, animal feed, powdered milk, cereals and grains, tobacco, teff, instant coffee granules, chocolate powder, soybean flour, broth concentrate, potato granules, sugar beets, ice cream, fruit juices, vegetable and pickle canneries, soybean oil, poultry and seafood processors.
Moving Trajectory of High Frequency Rotary Vibrating Screen Machine for Ceramic Slurry:
