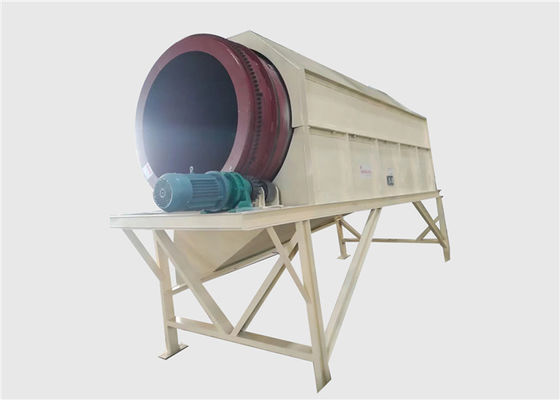

Shaftless Rotary Trommel Screen Drum Machine for Refractory Materials

Shaftless Rotary Trommel Screen Drum Machine for Refractory Materials

  • Shaftless Rotary Trommel Screen Drum Machine for Refractory Materials
  • Shaftless Rotary Trommel Screen Drum Machine for Refractory Materials
Shaftless Rotary Trommel Screen Drum Machine for Refractory Materials
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film for the machine, and fumigation-free plywood wooden case for the spare parts
Delivery Time: 30~35 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Purpose: Overcome The Mesh Plugging Problem Caused By Traditional Vibrating Screen During Screening Wet Materials Other Names: Rotary Screen, Trommel Screen, Rotary Sifter, Drum Screen, Revolving Screen, Cylinder Round Sifter Etc.
Movement: Rotary Motion Angle Of Inclination: 5°~7°
Surface Treatment: Polish, Paint, Sandblast Etc. Material: Stainless Steel 304, 316L, Carbon Steel Etc.
Advantages: Large Capacity, Mesh Hole Is Not Easily Blocked, Simple In Structure Etc. Application: Refractory Materials, Coal, Chemical Fertilizers, Sand Yard Stones Etc.
High Light:

rotary sifter machine

,

rotary trommel screen

Introduction of Rotary Trommel Screen Drum Machine for Refractory Materials​:

As a professional screening equipment, the rotary trommel drum screens have been accepted by customers, and have been fully utilized in power generation, mining, coal and other industries. The shaftless trommel screen transmission method is divided into chain type and gear type transmission. And the most traditional way is the chain type transmission.

  Trommel screens are relatively cheaper to produce than vibrating screen machine. They are vibration free which causes less noise than vibrating screens. Trommel screens are more mechanically robust than vibrating screens allowing it to last longer under mechanical stress.



Working Principle of Rotary Trommel Screen Drum Machine for Refractory Materials:

  Trommel screen has wide range of sizes and capacities. It is a mechanical rotary screening machine used to separate materials. This sieve machine consists of a perforated cylindrical drum that is normally elevated at an angle at the feed end, motor, reduction unit, screen frame and sealing cover. When materials flow towards along the inclined rotating drum, materials jump and roll. The undersized material smaller than the screen apertures passes through the screen, while the oversized material exits at the other end of the drum.

Shaftless Rotary Trommel Screen Drum Machine for Refractory Materials 0

                              Material Running State in the Rotary Screen



Features of Rotary Trommel Screen Drum Machine for Refractory Materials:

1. Low cost, for alluvial gold plant, sand plant.
2. Small volume, easy movable, support wheels.
3. Strong processing ability.
4. High-efficient and power-saving.
5. Easy and convinient operation.
6. Strong body, our engineer has redesigned the frame, use thicker and stronger material.



Some Important Information About Rotary Trommel Screen Drum Machine for Refractory Materials:

Other Names rotary screen, rotary sifter, trommel screen, drum screen, revolving screen, cylinder round sifter etc.
Movement rotary centrifugal movement
Power Source general motor and reducer
Type with shaft, shaftless
Angle of Inclination 5°~7°
Material carbon steel, stainless steel 304, 316L
Advantages overcome the screen mesh plugging problem caused by circular vibrating screen and linear screen in the process of screening wet materials
Features have strong adaptability to materials. Material that is sticky, with high humidity, dirty and miscellaneous can be screened



Application of Rotary Trommel Screen Drum Machine for Refractory Materials:

  Shaftless rotary screen is mainly used for the classification of band-shaped and entangled materials. It can be used for the classification of refractory materials, coal, chemical fertilizers, sand yard stones, as well as the screening of coal, coke, white ash, placer gold and other sticky materials. This sieve machine makes the product structure more even to meet the production needs.



Structure of Rotary Trommel Screen Drum Machine for Refractory Materials:

  The rotary screen is mainly composed of a motor, a reducer, a drum device, a frame, a sealing cover, and an inlet and outlet.

Shaftless Rotary Trommel Screen Drum Machine for Refractory Materials 1

1. driving device    2. coarse material discharge opening    3. seal cover

4. drum body    5. undersize material discharge opening    6. retaining plate

7. feed inlet    8. bracket



Technical Parameters of Rotary Trommel Screen Drum Machine for Refractory Materials:

Model

Capacity

(t/h)

Screen Drum Diameter (mm)

Length

(m)

Motor Power (KW)
GTS600 5-10 600 1000 1.5
GTS800 8-15 800 1200 2.2
GTS1000 15-30 1000 1500 3
GTS1200 20-50 1200 1800 5.5
GTS1500 40-80 1500 2000 7.5
GTS1800 80-150 1800 2000 11
GTS2000 130-200 2000 2500 11



Shaftless Rotary Trommel Screen Drum Machine for Refractory Materials 2Shaftless Rotary Trommel Screen Drum Machine for Refractory Materials 3
