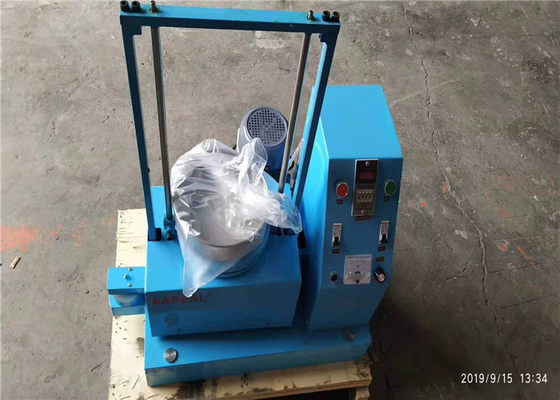

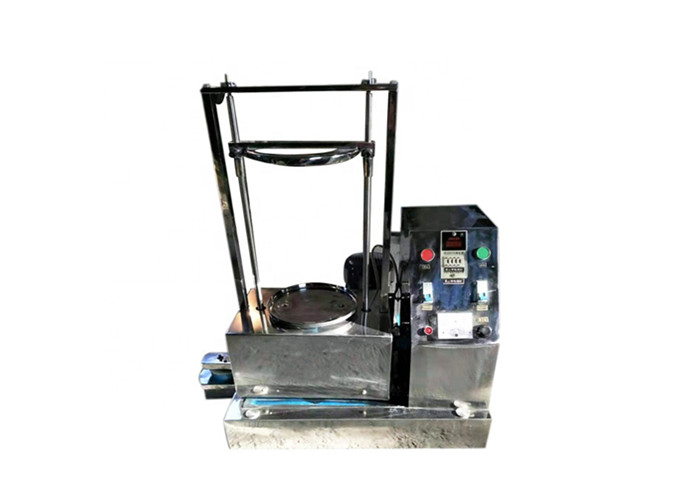

Maglev Vibration Test Sieve Shaker Stainless Steel Multi Motion For Toner

Maglev Vibration Test Sieve Shaker Stainless Steel Multi Motion For Toner

  • Maglev Vibration Test Sieve Shaker Stainless Steel Multi Motion For Toner
  • Maglev Vibration Test Sieve Shaker Stainless Steel Multi Motion For Toner
Maglev Vibration Test Sieve Shaker Stainless Steel Multi Motion For Toner
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: ATF-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood wooden case for export (fumigation-free)
Delivery Time: 1~30 work days after order confirmed
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Movement: Left And Right Swinging, Up And Down Vibration, Back And Forth Reciprocating Movement Vibration Source: Electromagnetism And Vibration Device
Material: Carbon Steel, Stainless Steel Particle Size: ≥5um (1250 Mesh)
Swing Frequency: 290 Times/min Round-trip Frequency: 290 Times/min
Vibration Frequency: 3000 Times/min Amplitude: 0~3mm
High Light:

lab sieve shaker

,

sieve testing equipment

Maglev Vibration Test Sieve Shaker Stainless Steel Multi Motion For Toner



Overview of Stainless Steel Multi-motion Maglev Vibration Test Sieve Shaker for Toner​:

This Stainless Steel Multi-motion Maglev Vibration Test Sieve Shaker for Toner has three kinds of movement: up and down vibration, back and forth reciprocating movement, left and right swinging. The screening efficiency is high and can be sieving to 5um.

  This magnetic suspension vibrating test sieve shaker is a new type of vibration screening equipment which integrates mechanical physical movement and high-frequency electromagnetic vibration these two kinds of physical vibration. The working parameters are in line with the national industry standards, matching with the test sieve and sample sieve to use. It is used for chemical industry, metallurgy, abrasive, food, medicine and other industries of screening, testing and production.

  This sieve shaker is also known as the maglev test sieve shaker, magnetic levitation test sieve shaker, magnetic suspension test sieve shaker etc.

Name maglev test sieve shaker, magnetic levitation test sieve shaker, magnetic suspension test sieve shaker etc.
Movement

1. up and down vibration,

2. back and forth reciprocating movement,

3. left and right swinging

Vibration Source electromagnetism + vibration device
Particle Size ≥5μm
Material carbon steel, stainless steel
Features

1. The up and down high frequency vibration plus left and right swing and back and forth movement can be used at the same time.

2. The back and forth movement plus left and right swing can be used alone.

3. The up and down high frequency vibration can be used alone.



Advantages of Stainless Steel Multi-motion Maglev Vibration Test Sieve Shaker for Toner:

  The multi-motion magnetic levitation laboratory test sieve shaker is a new type hi-tech product, which are extensively used in scientific laboratories and quality inspection department, can deal with materials finer than 325mesh that common test sieve can not handle of. Such as alumina powder, copper powder, nickel powder, aluminum powder, pigment, quartz sand, electrode material etc.



Features of Stainless Steel Multi-motion Maglev Vibration Test Sieve Shaker for Toner:

1. It adopts synchronous belt transmission mode. Strong stability.
2. There are three kinds of motions together: back and forth, swing and vibration. It does not clog the screen, and the screening efficiency is high.
3. Small size, clean and easy to operate.



Application of Stainless Steel Multi-motion Maglev Vibration Test Sieve Shaker for Toner:

1. Food industry: sugar, gourmet powder, salt, fruit juice, starch, milk powder, food, soyabean milk, egg powder, rice, soy, fish meal, pineapple juice etc.
2. Chemical industry: resin, coating, drug industry, cosmetic, oil, herbal powder ect.
3. Metals,metallurgical mining: aluminte powder, lead powder, copper powder, ore, allor powder, electrode powder, abrasive powder, refraclory materials, kaolin, lime, aluminium oxide, quartz sand ect.



Working Principle of Stainless Steel Multi-motion Maglev Vibration Test Sieve Shaker for Toner:

  The multi-motion magnetic suspension vibrating test sieve shaker takes the electromagnetism and vibration starting device as the vibration source. After power up, the electromagnetic device forms a magnetic field, and the vibration starting device is suspended in the middle of the magnetic field, forming the up and down high-frequency vibration. And then through the bottom tray, the vibration is transmitted to a set of sieves from coarse to fine which are placed on the tray, making materials in the test sieve and sample sieve do up and down, left and right round-trip vibration and movement. So that only the same particle size of materials are left in each layer of the test sieve and sample sieve, achieving the separation of different grains.



Main Parameters of Stainless Steel Multi-motion Maglev Vibration Test Sieve Shaker for Toner:

NO. Name Data
1 Sieve Diameter Φ200mm, Φ100mm, Φ75mm etc.
2 Sieve Number 1~8 sieves
3 Shaking Frequency 290 times/min
4 Round-trip Distance 25mm
5 Round-trip Frequency 290 times/min
6 Vibration Frequency 3000 times/min
7 Amplitude 0~3mm
8 Motor Power 0.37KW
Rotating Speed 1400 R/min
9 Dimension 660mm*470mm*800mm
10 Weight 105KG
Note: All the technical data and size of our products are based on physical object.
